SGB VL 330 Installation Advice

Leak detection technology

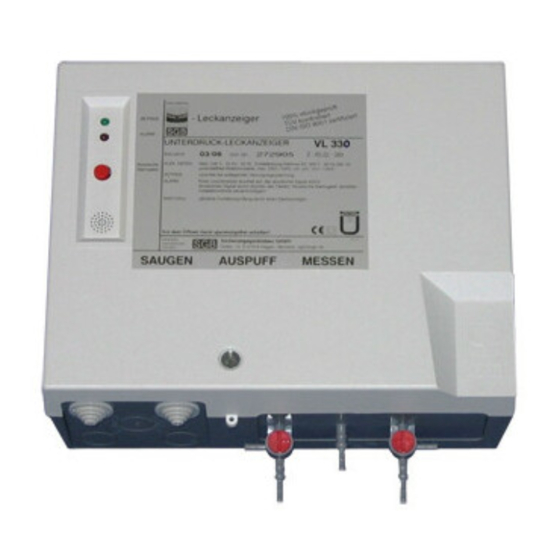

Underpressure leak detector
VL 330 P in a protection box
Complete set including for all necessary
installation equipment
Sold by:
UK Distributor
t: +44 (0)1388 813433
f: +44 (0)1388 813307
sales@orangecounty.co.uk
www.orangecounty.co.uk
For a clean and protected environment
Installation kit
for the tank
triple condensate
trap
SGB Sicherungsgerätebau GmbH
Hofstr. 10
Postfach: 21 07 41
VL 330
Leak detection system to detect and indicate
leaks in double-walled tanks.
Every leak in one of the walls will be indicated by
an optical and audible alarm before liquid enters
the environment.
(Class I-system in accordance to the European
standard EN 13 160)

Liquids to be monitored:

Water polluting liquids :
•
with a flash point > 55° Celsius; e.g. Diesel,
heating oil)
•
specific chemicals in accordance to chemical
resistance of the leak detector. Different materials
to realise chemical resistance are available.

Approved for the use together with:

•
double-walled horizontal tanks (e.g. EN 12285)
•
single-walled horizontal or rectangular tanks
equipped with a lining (e.g. DIN 6625 or similar)
•
double-walled ball shaped tanks
•
upright standing tanks (e.g. DIN 6618/2)

Approvals:

•
Germany: Z -65.22 - 389

Technical data:

type alarm
underpressure
>330 mbar
VL 330
(> 4.79 psi)
D-57076 Siegen
D-57031 Siegen
operational
underpressure
450 mbar
(6.53 psi)
Tel.: + 49 / (0) 271 / 48964-0
Fax: + 49 / (0) 271 / 48964-6
http//www.sgb.de
E-mail: sgb@sgb.de
