SGB VLX Ex Series Documentation

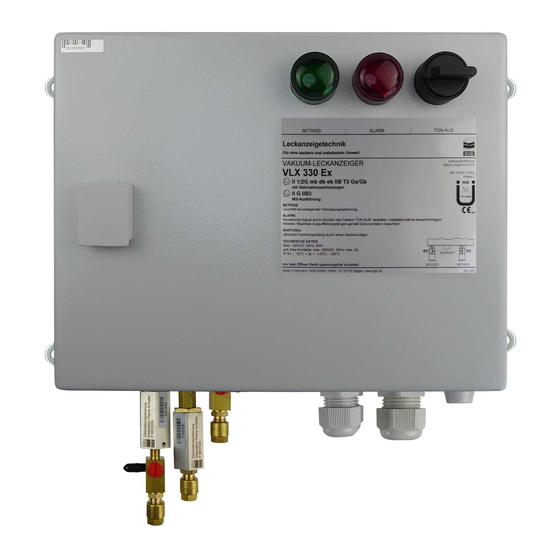

Vacuum leak detector
Hide thumbs

Advertisement

Quick Links

Download this manual
Vacuum leak detector
VLX ../A-Ex
Art. No.: 602 602
Documentation VLX ../A-Ex
Issue:
07/2018
SGB GMBH
Hofstraße 10
57076 Siegen
GERMANY

Advertisement

loading
Need help?

Need help?

Do you have a question about the VLX Ex Series and is the answer not in the manual?

Questions and answers

Related Manuals for SGB VLX Ex Series

Summary of Contents for SGB VLX Ex Series

  • Page 1 Vacuum leak detector VLX ../A-Ex Art. No.: 602 602 Documentation VLX ../A-Ex Issue: 07/2018 SGB GMBH Hofstraße 10 57076 Siegen GERMANY...
  • Page 2 VACUUM LEAK DETECTOR VLX ../A-Ex Table of contents for documentation Technical description of VLX ../A-Ex 17 pages Drawings for the technical description of VLX ../A-Ex 21 pages Appendix to the technical description of VLX ../A-Ex 5 pages Dimension and drilling illustration 1 page Worksheet: Installation of pneumatic connections 2 pages...
  • Page 3 VACUUM LEAK DETECTOR VLX ../A-Ex Table of Contents Page Subject Operative Range Requirements for the Interstitial Spaces Containers up to 0.5 bar overlay pressure Pipes/Hoses Permissible overlay pressures/conveyance pressures Stored/conveyed product Resistance to Materials Function Description Normal Operation Air Leaks Liquid Leaks Switch Values of the Leak Detector Installation Instructions...
  • Page 4 VACUUM LEAK DETECTOR VLX ../A-Ex 1. Subject Vacuum leak detectors of Type VLX ../A-Ex in partially explosion-proof models as part of a leak detection system. 2. Operative Range 2.1. Requirements for the Interstitial Spaces  Vacuum-resistant with respect to the operating vacuum of the leak detector, even with temperature fluctuations.
  • Page 5 VACUUM LEAK DETECTOR VLX ../A-Ex 2.3. Pipes /Hoses Pipe Installation Suitable Leak Usage limits example Detector Type L Pipes made at the factory or on-site of metal or L/M–01 VLX 330/A-Ex Up to 10 bar plastic with general building site approval or with conveyor L/M–02 acceptance as part of an individual determination...
  • Page 6 VACUUM LEAK DETECTOR VLX ../A-Ex 3. Function Description 3.1. Normal Operation The vacuum leak detector is connected with the interstitial space via suction-, measuring- and connection line(s). The vacuum generated by the pump is measured and controlled by a vacuum switch. When the operating vacuum is reached (Pump OFF), the pump shuts off.

  • Page 7: Installation Instructions

    VACUUM LEAK DETECTOR VLX ../A-Ex 4. Installation Instructions 4.1. General Notes (1) Observe the approvals of the manufacturer for the tank/pipe and the interstitial space. (2) Only qualified service companies may be used for installation and start up (3) Comply with relevant regulations regarding electric installation , (e.g.
  • Page 8 VACUUM LEAK DETECTOR VLX ../A-Ex 4.3.1 Installation of the leak detector (4) Outside and inside the hazardous location (zone 1), in the open air, without any more protective boxes. Chose a mounting place, where the ventilation in the housing (by convection) between the flange plate (be distant to the housing) and the vent opening is not being effected.
  • Page 9 VACUUM LEAK DETECTOR VLX ../A-Ex (10) Leak detector side flame arresters:  Are necessary, when either the suction line or the exhaust line (or both) are connected to zone 0.  Are not necessary, if both the suction line and the exhaust line are NOT connected to zone 0.
  • Page 10 VACUUM LEAK DETECTOR VLX ../A-Ex (1) Lay connecting lines at a downward angle to the interstitial space or the manifold. If there are low points in the connecting lines and lines are laid out of doors as well, install condensate traps at all low points. (2) Lay suction and measuring lines at a downward angle to the manifold.
  • Page 11 VACUUM LEAK DETECTOR VLX ../A-Ex 21/24 Voltage-free contacts (opened in case of alarm or loss of power) for VLX../A/ME und VLX ../A/ME-MV 21/22/24 voltage-free contacts (two-way) for VLX ../A/ZME Connection between leak detector and indicating unit, A1 (ME, ZME, ME-MV) Connection between leak detector and indicating unit, A2 (ME, ZME) resp.
  • Page 12 VACUUM LEAK DETECTOR VLX ../A-Ex other interstitial spaces become filled with liquid in case of a leak in a pipe. The volumes of the connected pipes must meet the following conditions: 3  V > V ÜR 1 ÜR 1 ÜR 2 ÜR 3 ÜR 4...
  • Page 13 VACUUM LEAK DETECTOR VLX ../A-Ex (2) Frequent switching on or continuous running of the pump indicates leaks, which should be corrected within a reasonable time. (3) If the alarm goes off, this always indicates a more significant leak or a defect. Determine the cause and correct it shortly.
  • Page 14 VACUUM LEAK DETECTOR VLX ../A-Ex (7) As part of the annual function test, check the motor of the pump for running noises (damaged bearings). (8) If the pump has to be changed or when working on the pumps exhaust line a pressure test of the suction- and measuring line with 10 bar has to be carried out for the parts inside the housing.
  • Page 15 VACUUM LEAK DETECTOR VLX ../A-Ex (4) Close the condensate traps. (5) a) Set three-way valves 20 and 21 to position I. (P-096 000) b) V4A Version: set measuring and suction line side stop cock to position 1. (P-098 000) c) MV Version: Additionally activate „start up“ switch if the leak detector alarm in active. (6) Open the stop cocks on the interstitial space side.
  • Page 16 VACUUM LEAK DETECTOR VLX ../A-Ex 6.4.5 Testing the Switch Values with the test equipment (1) Connect the testing device to the two hose ends on each of the free pipe unions of three- way valves 20 and 21. (P-096 000 and P-115 392-a) b) V4A Version: Connect the testing device with both hose ends to each of the free pipe unions of the suction and measuring line side stop cocks.
  • Page 17 VACUUM LEAK DETECTOR VLX ../A-Ex (2) Connect the measuring instrument to three-way valve 21, position III. (P-096 000) b) V4A Version: Connect the measuring instrument to the stop cock on the measuring line side, and set valve to position 2. (P-098 000) (3) The vacuum pump must have reached the Pump OFF switch value for the tightness test.
  • Page 18 VACUUM LEAK DETECTOR VLX ../A-Ex CAUTION: Do not allow the interstitial space in the tanks with flexible leak detector jackets to become pressureless (collapse of the insert). (7) Repairs to the leak detector (e.g. replacement of components) may only be made outside the ex-area or suitable proction measures shall be established.
  • Page 19 VACUUM LEAK DETECTOR VLX ../A-Ex Solenoid Valve Signal light “Feed, yellow (= pump on) ”Network” signal light, green Vacuum gauge Test valve Relay Vacuum pump Suction line Buzzer ”Audible Alarm” switch Interstitial space Connecting line Installation pump connection 1 liter test vessel Test pipe unions (vacuum gauge) Leak detecting device Leak detector...
  • Page 20 15-01-2002 /01-2004 P - 096 000...
  • Page 21 15-01-2002 /01-2004 P - 098 000...
  • Page 22 230 V / 50 Hz 28-01-2002 /01-2004 I - 000 000...
  • Page 23 230 V / 50 Hz 15-01-2002 /01-2004 A - 01...
  • Page 24 15-01-2002 /01-2004 B/C - 01...
  • Page 25 230 V / 50 Hz 15-01-2002 /01-2004 D - 01...
  • Page 26 230 V / 50 Hz 15-01-2002 /01-2004 E - 01...
  • Page 27 230 V / 50 Hz 16-01-2002 /01-2004 F - 01...
  • Page 28 230 V / 50 Hz 16-01-2002 /01-2004 G - 01...
  • Page 29 230 V / 50 Hz 16-01-2002 /01-2004 H/I/J - 01...
  • Page 30 230 V / 50 Hz 16-01-2002 /01-2004 H/I/J - 02...
  • Page 31 16-01-2002 L/M - 01...
  • Page 32 16-01-2002 L/M - 02...
  • Page 33 ÜR 1 ÜR 2 16-01-2002 L/M - 03...
  • Page 34 Toleranzen Werkstoff k.A. Maßstab k.A. nach DIN 7168-m Bezeichnung Stromlaufplan Bearb. Stich 04.03.2016 Gepr. (VLX-A-Ex)mit 24 V DC Alarm Weiterleitung Zeichnungsnummer Blatt SL-854 400-25 Minus an PE gezogen 22.08.2016 Stich Änderung Datum Name...
  • Page 35 Toleranzen Werkstoff k.A. Maßstab k.A. nach DIN 7168-m Bezeichnung Stromlaufplan Bearb. 17.05.2010 Stich Gepr. (VLX-A-MV-Ex) aufgelöster Darstellung Zeichnungsnummer Blatt SL 854 500 Änderung Datum Name...
  • Page 36 Toleranzen Werkstoff k.A. Maßstab k.A. nach DIN 7168-m Bezeichnung Stromlaufplan Bearb. Stich 18.05.2010 Gepr. (VLX-A-MV-Ex mit Schwimmersonde) aufgelöst Darst Zeichnungsnummer Blatt SL 854 510 Änderung Datum Name...
  • Page 37 Toleranzen Werkstoff k.A. Maßstab k.A. nach DIN 7168-m Bezeichnung Stromlaufplan Bearb. 18.05.2010 Stich Gepr. (VLX-A-MV-Ex mit Schwinggabelsonde) aufgel. Darst. Zeichnungsnummer Blatt SL 854 520 Änderung Datum Name...
  • Page 38 100k 680R 470R 470R > 22µ 100µ 680R Toleranzen Werkstoff k.A. Maßstab k.A. nach DIN 7168-m Bezeichnung Stromlaufplan Bearb. 17.05.2010 Stich Gepr. (VLX-ZME) aufgelöster Darstellung Zeichnungsnummer Blatt SL-854 600 Änderung Datum Name...
  • Page 39 90° 90° Kl. 1,0 25-01-2002 /01-2004 P - 115 392 - a...
  • Page 40 Kl. 1,0 25-01-2002 /01-2004 P - 115 392 - b...
  • Page 41 APPENDIX A VACUUM LEAK DETECTOR VLX ../A-EX Using the VLX .. Vacuum Leak Detector on Interstitial Spaces Filled with Leak Detection Liquid A.1 Prerequisites (1) Only leak detectors with suitable alarm pressures, which depend on the tank diameter and the density of the stored product, may be used. (2) The procedure described below is intended for tanks as defined per DIN 6608.
  • Page 42 APPENDIX E VACUUM LEAK DETECTOR VLX ../A-Ex E.1 H , Depending on Density Density of the stored max. material [kg/dm Type 330 Only overground tanks / pipeline(s) Overground and underground tanks / pipeline(s) E.2 Max. Tank Height, Depending on Density Density of the stored max.
  • Page 43 APPENDIX E VACUUM LEAK DETECTOR VLX ../A-Ex E.3 Tank according to DIN 6618 T2: 1989 and vats with dished floors and same dimensions Diameter Height Max. density of the [mm] [mm] stored material [kg/dm Type 34 Type 330  2 820 ...
  • Page 44 APPENDIX TD VACUUM LEAK DETECTOR VLX ../A-Ex Technical Data 1. Electrical data Input capacity (without external signal) 230 V - 50 Hz - 50 W Max. input capacity of the external signal 230 V – 50 Hz – 460 VA Switch contact load, voltage-free contacts, clips 21–24 max: 230 V - 50 Hz - 5 A...
  • Page 45 ANNEX LS VACUUM LEAK DETECTOR VLX ../A-Ex Annex LS Supplements the Technical Description with Design Variant VLX ../A-MV-Ex in conjunction with indicating unit VLX /ME-MV-LS. This indicating unit is expanded by the option to connect a leakage probe. The Technical Description is retained and is expanded by the following points. 1.
  • Page 46 Hole pattern Housing Type Dimension Width A Height B Diameter Bore (B x H x T) (side of strap diameter for dowel straps) VLX ../Ex 380x300x210 VLX ../A-Ex 200x300x160 VLX ../A-MV-Ex 380x300x210 VLX ../ ME 120x200x90 VLX ../ ME-MV 120x200x90 VLX ../ ZME 300x400x155 05/05/2014...
  • Page 47 Work sheet: AB-820 500 Installation of screw connections 1 Flanged screw connection for flanged pipes 1. Oil o-rings 2. Place the intermediate ring loosely in the screw connection sleeve 3. Push the union nut and pressure ring over the pipe 4.
  • Page 48 Work sheet: AB-820 500 Installation of screw connections 4 Quick-release screw connection for PA and PUR hose 1. Cut the PA pipe to length at a right angle 2. Unfasten the union nut and push it over the end of the pipe 3.

  • Page 49: Eu Declaration Of Conformity

    EU DECLARATION OF CONFORMITY SGB GmbH Hofstraße 10 57076 Siegen, Germany, hereby declare in sole responsibility that the leak detectors VLX ../A-Ex and VLX ../Ex (Assembly concerning the Directive 2014/34/EU) comply with the essential requirements of the EU directives listed below.
  • Page 50 Class I vacuum leak detector for monitoring double-walled tanks and pipes Manufacturer: SGB GmbH, Hofstraße 10, 57076 Siegen, Germany Tel.: +49 271 48964-0, e-mail: sgb@sgb.de If applicable, name and contact address of the agent authorised with the tasks according to article 12 para.
  • Page 51 Fax: 040 8557-2295 www.tuev-nord.de Certification Note: Translation of the German test report – Contracting body: no guarantee for translation of technical SGB GmbH terms Hofstr. 10 D-57076 Siegen Manufacturer: see above Subject of testing: Leak detector with leak detector system type VLX ... in the versions VLX .../Ex, VLX .../A-Ex according to DIN EN 13160-1:2003 and DIN EN 13160-2:2003 class 1...
  • Page 52 VLX../A-Ex Approval 65.22-340 Approval 65.22-341 Ordering party / manufacturer SGB GmbH Hofstraße 10 2 D-57076 Siegen Reason for the statement Change of the device configuration of the leak detector type VLX../A-Ex for ensuring the alarm...

  • Page 53: Warranty

    Furthermore, our warranty is subject to our General Terms and Conditions, available on internet: www.sgb.de/en/contact/imprint.html In case of malfunction, please contact your local specialist company: Stamp of the specialist company Yours sincerely SGB GmbH Hofstr. 10 57076 Siegen Germany phone: +49 271 48964-0...
