SGB DLR-G Documentation

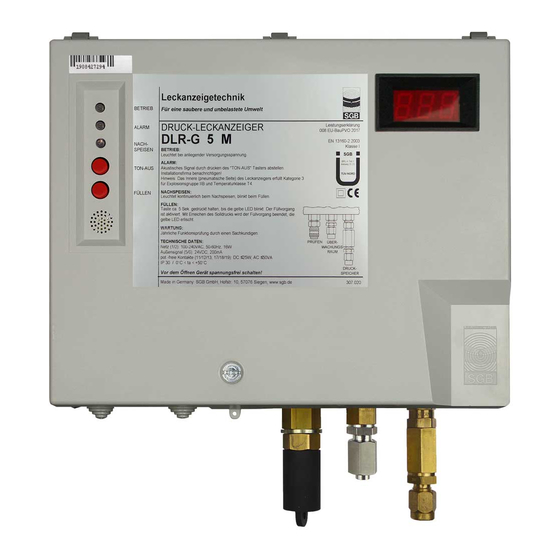

Pressure leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Documentation
Pressure Leak Detector DLR-G
Read instructions prior to commencing any work
As of: 10/2018
Item no.: 604 102

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLR-G and is the answer not in the manual?

Questions and answers

Related Manuals for SGB DLR-G

Summary of Contents for SGB DLR-G

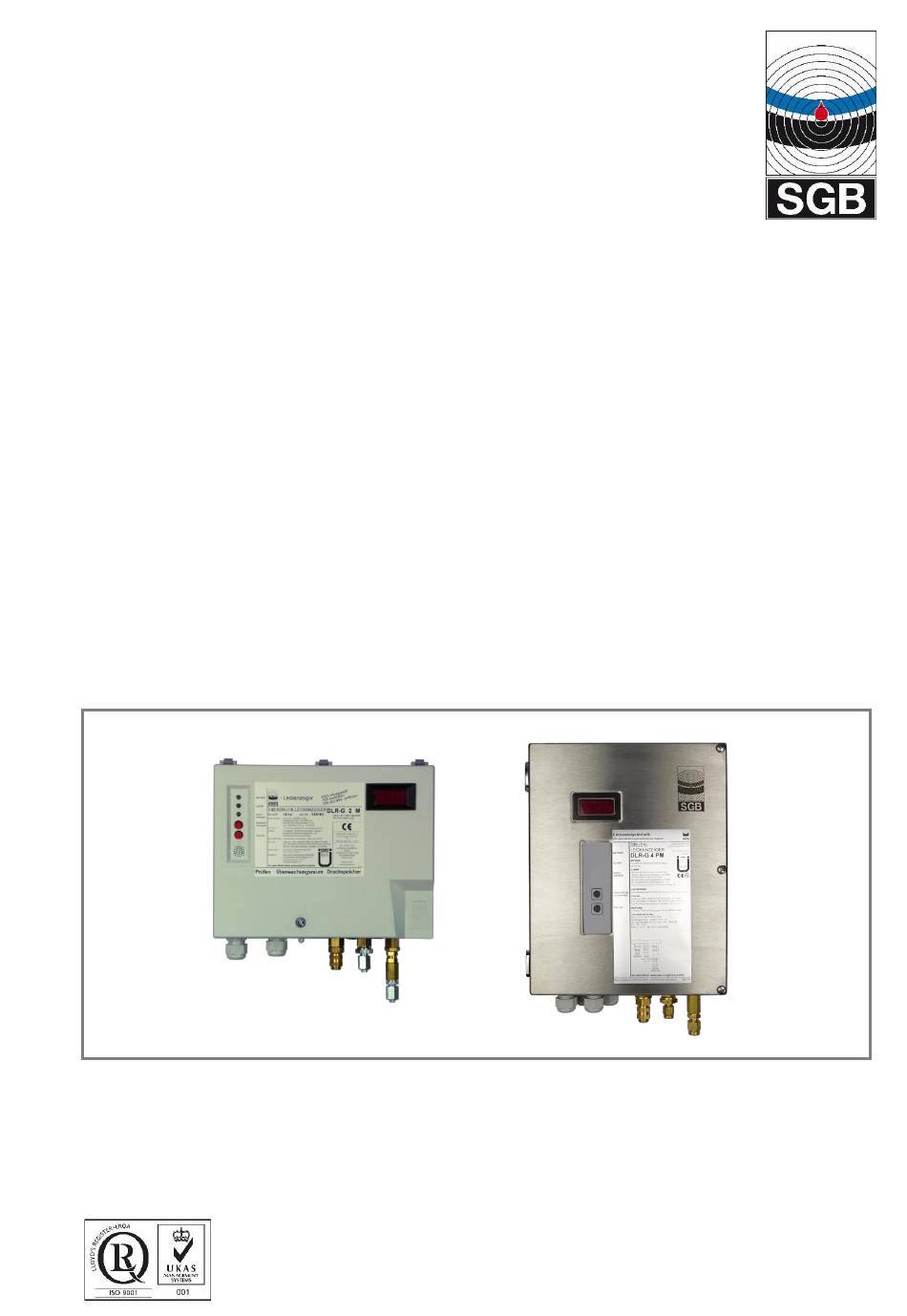

  • Page 1 Documentation Pressure Leak Detector DLR-G Read instructions prior to commencing any work As of: 10/2018 Item no.: 604 102...

  • Page 2: Table Of Contents

    Commissioning the Pressure Gas Bottle Commissioning the Leak Detector Changing the Operating Mode Functional Check and Maintenance ........General Maintenance Functional Check Malfunction (Alarm) ..............Alarm Description How to Behave Spare Parts ..................- 2 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 3 12.2 Personal Protective Equipment 12.3 Dimensions and Drilling Pattern, Plastic Housing 12.4 Dimensions and Drilling Pattern, Stainless Steel Housing 12.5 Declaration of Conformity 12.6 Declaration of Performance 12.7 Certification TÜV Nord - 3 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 4: General

    General Information These instructions provide important notes on using the leak detector DLR-G. Complying with all safety instructions and guidelines is a pre- requisite for safe working. Furthermore, any local regulations for prevention of accidents appli- cable at the site of use of the leak detector and general safety instruc- tions must be complied with.

  • Page 5: Warranty Conditions

    General Warranty Conditions We provide warranty for the leak detector DLR-G for a period of 24 months from the day of installation on site in accordance with the General Terms & Conditions. The maximum warranty period is 27 months from our date of sale.

  • Page 6: Safety

     Section 3.4.5 must be complied with. Any claims arising from misuse are excluded. Obligation of the Operating Company The leak detector DLR-G is used in a commercial environment. The operating company is therefore subject to statutory occupational safe- ty obligations.

  • Page 7: Qualification

    Qualification The personnel must be capable of independently recognizing and avoiding potential risks based on their qualifications. Companies commissioning leak detectors should have completed re- spective training with SGB, through SGB or its authorized representa- WARNING! tive. Danger to humans National guidelines must be adhered to.

  • Page 8: Fundamental Hazards

    Therefore, the chamber must be entered for mounting. Before entering, the corresponding protective measures must be tak- en and it must be ensured that no gas and sufficient oxygen are pre- sent. - 8 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 9: General Data

    DC ≤ 25 W or AC ≤ 50 VA Terminals 17…19 (voltage-free): DC ≤ 25 W or AC ≤ 50 VA Fuse protection: max. 10 A Overvoltage category: * With Ethernet board max. 150 mA - 9 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 10: Switching Values

    10.5  Special switching values Special switching values agreed to by SGB agreed to by SGB and custom- and customers The overpressure valve ÜDV1 can be omitted if it can be assured that the pressure in the interstitial space will not ex- ceed the test pressure (e.g.
  • Page 11 < 20 > 24.2  Special switching values Special switching values agreed to by SGB agreed to by SGB and custom- and customers The following abbreviations are used in the table: Maximum operating pressure in the inner pipe (feed pressure + dy- namic pressure + pressure due to geodetic height differences) Switching value "Alarm ON";...

  • Page 12: Field Of Application

    Germany ≤ 55°C acc. to TRGS 509 and TRGS 751). Restrictions result, according to 3.4.5, from the material to be conveyed and the leak detection medium used.  The conveyed product may not react with the leak detection medi- - 12 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 13 If the pressure supply is performed using a pressure gas bottle, it is necessary to equip the pressure gas bottle with residual pressure monitoring. In case of a notification (drop below the set residual pressure) the pressure gas bottle is to be refilled or replaced with a full one. - 13 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 14: Design And Function

    Signal lamp "Filling" or "Refilling", yellow Button "Commissioning" (filling) Solenoid valve Buzzer Overpressure valve (interstitial space) 70-1 Overpressure valve (supply) 70-2 "Mute" button Display board Main board Pressure sensor Contact for serial data transfer and programming - 14 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 15 Interior view of stainless steel housing, weather-protected, with: Solenoid valve Buzzer Overpressure valve (interstitial space) 70-1 Overpressure valve (supply) 70-2 Display board Main board Pressure sensor Contact for serial data transfer and programming Keypad terminal strip - 15 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 16: Normal Operating Condition

    Design and Function The pressure leak detector DLR-G monitors both walls of the double- walled system for leaks. The monitoring pressure during operation is higher than any pressure on the inner or outer wall, so that leaks will be indicated by a pressure drop.

  • Page 17: Overpressure Valve

    This function is not available during normal operating conditions and malfunctions. The "Alarm" signal lamp can have various displays depending on the pressure in the interstitial space and whether or not the "Audible alarm signal" button has been pressed. - 17 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 18 1 automatic refilling interval in normal operating conditions (i.e. without manual activation of the fill- ing function) to achieve a valid statement. For evaluation of the value displayed see Appendix 11.1. - 18 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 19: Basic Instructions

    (4) NOT in potentially explosive areas. (5) Dimensions of housings and drilling patterns are illustrated in Appendix 12.3 and 12.4, respectively. - 19 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 20: Setting Up The Pressure Gas Bottle And Mounting The Pressure Reducer

     Seal the protective pipe gas-tight and protect from moisture.  Avoid build-up of electrostatic charges (e.g. during pulling of lines). If necessary, install commercial fittings for plastic pipes (specified bending radii). - 20 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 21: Completing Pneumatic Connections

    (1) Select suitable pipe to connect the pressure reducer to the leak detector. Recommendation: Use the Flex tube (SGB item no.: 260 721) (2) Connect the pipe to the pressure reducer (the image shows con- nection via the Flex tube mentioned above).

  • Page 22: Electrical Cables

    (2) Fixed wiring, i.e. no plug or switch connections. (3) Regulations of power supply companies must be adhered to (4) Terminal layout: (see also section 5.9.3) For Germany: also VDE regulations - 22 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 23 (2) Insert cable into the open terminal. (3) Hold cable and remove screwdriver. (4) Check cable for a tight fit and install more cables to the terminals using the same process. - 23 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 24: Installation Examples

    Mounting Installation Examples 5.9.1 Leak detector DLR-G .., operating mode "C", supplied by a local nitrogen system Signal lamp "Alarm", red Shut-off cock Signal lamp "Operation", green Pressure reducer Button "Filling" Signal lamp "Refilling", yellow Test coupling Test valve Buzzer "Mute"...
  • Page 25 Mounting 5.9.2 Leak detector DLR-G .., operating mode "I", supplied by a nitrogen pressure gas bottle Signal lamp "Alarm", red Shut-off cock Shut-off valve Coupling Signal lamp "Operation", green Pressure reducer Pressure cylinder Cylinder shut-off valve Button "Filling" Signal lamp "Refilling", yellow...
  • Page 26 59.2 Relay "Alarm" 59.3 Relay "Refilling" 59.4 Buzzer “Mute” button Main board Pressure sensor Display Control unit Power supply unit 24 V DC Contacts for serial data transfer Keypad terminal strip - 26 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 27: Commissioning The Pressure Gas Bottle

    If necessary, turn off audible alarm signal. With operating mode "C", the power supply activates automatic refilling. For Germany: Additional DIBT requirements must be considered for such double-walled pipes. - 27 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 28: Changing The Operating Mode

    (4) If the switch positions 1-9 are changed at the construction site, it must be assured that the set pressure level does not exceed the set pressure for the overpressure valve. - 28 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 29: Functional Check And Maintenance

    (2) Observe the safety instructions for working with the product to be conveyed. For Germany: Technical service according to water law with expertise in leak detection systems For Europe: Authorization by the manufacturer For Germany: In addition, national laws apply (e.g. AwSV) - 29 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 30 Once the filling process has been completed, close the shut- off valve on the pressure reducer and disconnect the meas- uring gauge and the pressure cylinder. - 30 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 31 Test time (with measurable pressure drop of 10 mbar): 120 x 10 = 1200 minutes ( 20 hours) This section assumes that the operating pressure has been built up in the interstitial space and the pressure has been compensated. - 31 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 32 (2) If shut-off cocks have been installed in the connection lines, they must be sealed in an opened position (if connected to an intersti- tial space). (3) Make sure that for operating mode "C", the pressure gas bottle is filled sufficiently. - 32 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 33: Malfunction (Alarm)

    (1) Inform the installation company immediately and state the display from the preceding paragraph. (2) Determine the cause for the alarm, fix it, and then perform a func- tional check for the leak detection system according to section 7.3. - 33 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 34: Spare Parts

    Manifold DLR-G with sensor 20 bar without overpressure switch, 24 V DC, integrated solenoid valve (please indicate screw connection) Solenoid valve: 342208 Solenoid valve 24 V DC without base body for DLR-G Pressure sensors: 344510 Sensor 10 bar for DLR-G 344520...

  • Page 35: Accessories

    Accessories 10. Accessories For accessories please refer to our website www.sgb.de, e.g. - Installation kits - Electrical isolators - Manifolds - Pressure reducers - Flex tube to connect pressure reducer and leak detector - Weather protection cover for pressure reducer...
  • Page 36 Accessories - Pressure limiter - P version, housing with IP 54 - 36 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 37: Disassembly And Disposal

    EN 1127 or the area must be free of explosive atmos- phere. Avoid the build-up of electrostatic charges (e.g. through friction). 11.2 Disposal Properly dispose of contaminated components (possibly through out- gassing). Properly dispose of electronic components. - 37 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 38: Evaluation Of Tightness Inquiry

    (work should be performed only at a concentration of 50 % below the lower explosion limit)  Measuring equipment to determine the oxygen content in the air (Ex/O-meter) Other manufacturers' or countries' regulations may provide different percentages. - 38 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 39: Dimensions And Drilling Pattern, Plastic Housing

    Appendix 12.3 Dimensions and Drilling Pattern, Plastic Housing Space needed to remove the housing lid Space needed to open the housing lid - 39 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 40: Dimensions And Drilling Pattern, Stainless Steel Housing

    Appendix 12.4 Dimensions and Drilling Pattern, Stainless Steel Housing for Installation Outdoors (IP 54) Ø8,5 - 40 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 41: Declaration Of Conformity

    EN 13 160-1-2: 2003 EN 13 463-1: 2009 The ignition hazard assessment did not result in any additional hazards. Conformity is declared by: ppa. Martin Hücking As of: 03/2018 (Technical Director) - 41 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...

  • Page 42: Declaration Of Performance

    Appendix 12.6 Declaration of Performance Number: 008 EU-BauPVO [EU CPR] 10-2015 Unique identification code of the product type: Pressure leak detector model DLR-G .. Intended use: Class I pressure leak detector for monitoring double-walled pipes Manufacturer: SGB GmbH, Hofstraße 10, 57076 Siegen, Germany Phone: +49 271 48964-0, E-mail: sgb@sgb.de...

  • Page 43: Certification Tüv Nord

    Appendix 12.7 Certification TÜV Nord - 43 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018...
  • Page 44 Hofstr. 10 57076 Siegen Germany Phone +49 271 48964-0 Photos and dimension are not binding E-mail sgb@sgb.de for the extent of delivery. Subject to - 44 - PRESSURE LEAK DETECTOR DLR-G .. 24/10/2018 Text www.sgb.de changes. © SGB GmbH, 10/2018...
