JIGSAW
Model No.CJS1-C
PART NO:6462160
OPERATING & MAINTENANCE
INSTRUCTIONS
12/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Woodworker CJS1-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke Woodworker CJS1-C

Summary of Contents for Clarke Woodworker CJS1-C

  • Page 1 JIGSAW Model No.CJS1-C PART NO:6462160 OPERATING & MAINTENANCE INSTRUCTIONS 12/08...

  • Page 2: Introduction

    INTRODUCTION Thank you for purchasing this CLARKE Jigsaw. Before attempting to use the machine, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

  • Page 3: Table Of Contents

    PARTS: Parts@clarkeinternational.com SERVICE: Service@clarkeinternational.com Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.

  • Page 4: General Safety Rules

    GENERAL SAFETY RULES 1) WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres such as in the presence of flamable liquids, gasses or dust. Power tools create sparks which may ignite dust or fumes.
  • Page 5 6. Dress properly. Do not wear loose clothing or jewellery which may get caught in moving parts. Wear protective hair covering to contain long hair. For best footing, wear rubber soled footwear. Keep floor clear of oil, scrap wood, etc. 7 Concentrate on the job in hand, no matter how trivial it may seem.

  • Page 6: Jigsaw Safety Instructions

    2. Using the correct blade. Use the appropriate saw blade for the material being cut. Different blades are available from your Clarke dealer. 3. Use of the mains cable. Keep the mains cable well away from the ma- chine and ensure an adequate electrical supply is close at hand so that the operation is not restricted by the length of the cable.

  • Page 7: Electrical Connections

    3. Should you wish to replace a detachable fuse carrier, ensure that the correct replacement is used (as indicated by marking or colour code). 4. Replacement fuse covers can be obtained from your local Clarke dealer or most electrical stockists.

  • Page 8: Overview

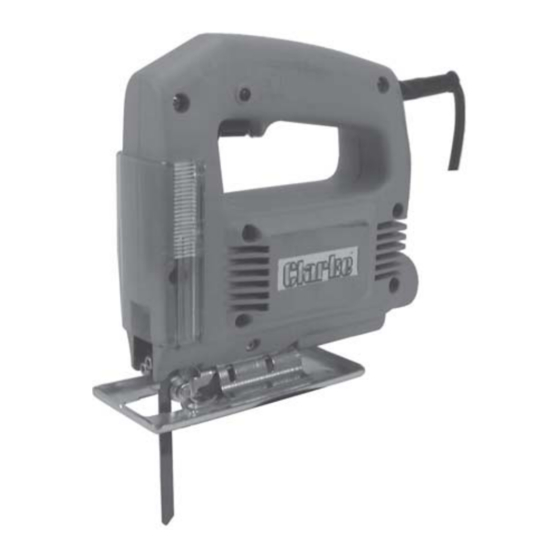

    OVERVIEW The CLARKE CJS1-C is a 350W single-speed jigsaw fitted with a lock-on button for continuous operation. It is fitted with a dust extract port for connection to a vacuum system in accordance with EU regulations and is supplied with 1.8 metres of cable with a ASTA/BS approved 3-pin moulded plug.

  • Page 9: Installing/Changing Blades

    INSTALLING/CHANGING BLADES With the power cable disconnected from the mains supply, raise the blade guard and slacken off the two hexagonal socket screws using the hexagonal key stored at the rear of the tool body. Loosen the two blade securing screws and remove existing Blade blade.
  • Page 10 To start the saw, pull the trigger switch Fig 3 Lock-on button and the blade will move up and down. Wait until the blade is running at speed before attempting to cut the workpiece. To stop the tool if the switch lock is used, pull the trigger switch fully in, then release it and the motor will stop.

  • Page 11: Maintenance

    • Ensure all nuts, bolts and screws remain tight to ensure the jigsaw is in safe working condition. • Refer to your CLARKE dealer if internal maintenance is required. • Check the power cable to ensure it is sound and free from cracks, bare wires etc.

  • Page 12: Fault Finding

    Disconnect the mains lead and check that the blade is correctly fitted see page 9. If the blade is damaged replace it with a new one. If vibration persists, consult your local Clarke dealer, or contact the Clarke Service department.

  • Page 13: Vibration Emissions

    VIBRATION EMISSIONS HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmit- ted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz.
  • Page 14 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.

  • Page 15: Declaration Of Conformity

    The CE mark was first applied in: 2006 Product Description: Jig Saw (350W) CJS1-C Model number(s): Serial / batch Number: Current Manufacture. Date of Issue: 05/01/2006 Signed A.C. AIKEN Senior Manager Clarke International. 08-0016 Jig saw DOC RV1.doc Page 1 of 1...
