Overview SL6+
voice station
Default address setting:
Address
1 Car unit
2 Top unit
3 Lift pit unit
4 Fire unit
5 Fire unit
6 Fire unit

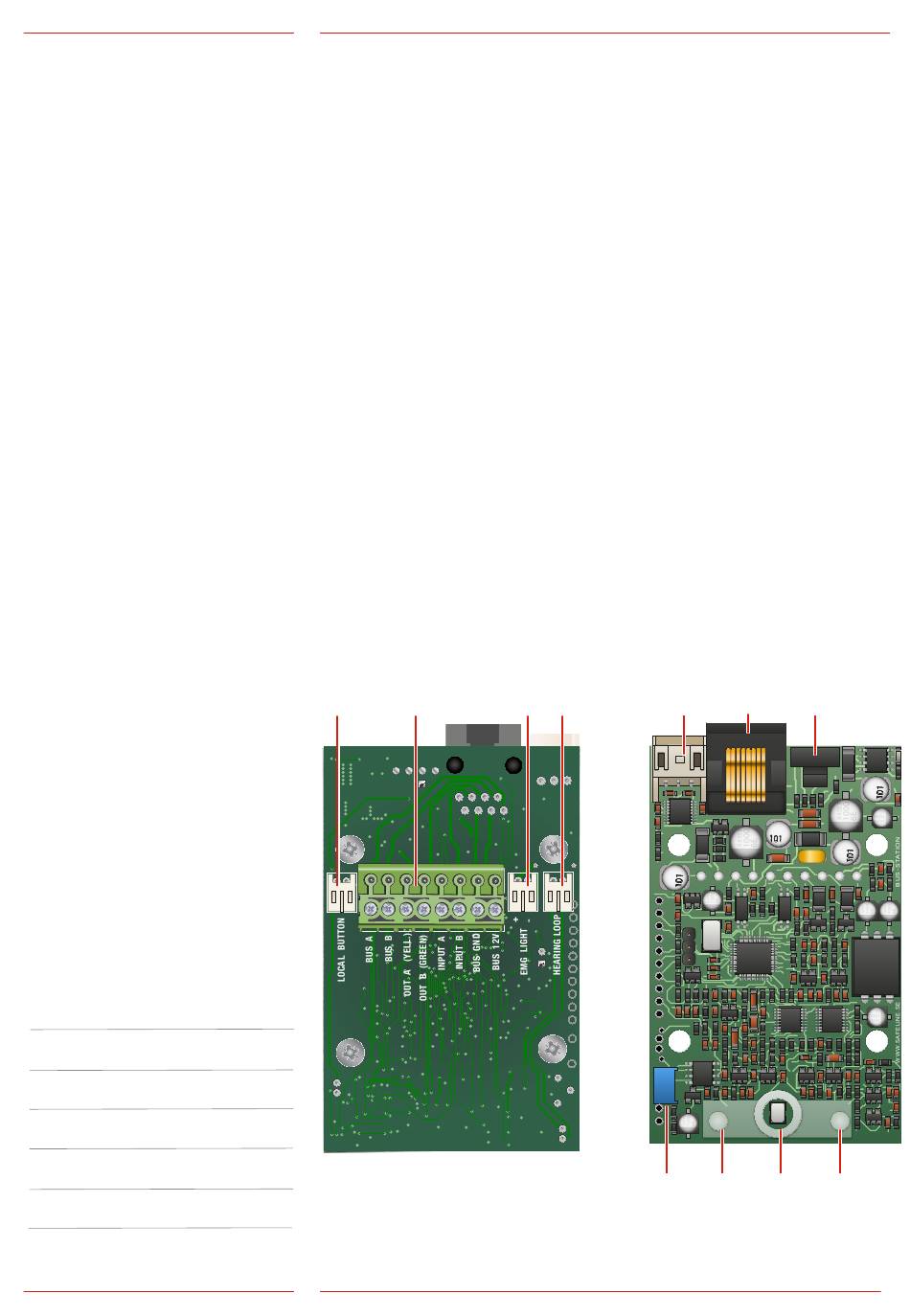

Installation

1. Local button*
Only N/O.
Connected with *Cable13.
2. Screw connector terminals*
3. Emergency light*
Is connected with *Cable13.
4. Hearing loop*
Is connected with *Cable13.
* Note: This connection may
not be present depending
on your product.
1
RS2
J2
Unit
Change the default address
settings using SafeLine Pro
or SafeLine CONNECT.
7
2 3 4
ADDRESS
J4
5. RS232 PC connection
For firmware update.
6. Terminal RJ45
Input/output, bus connection,
power and external pictogram.
7.
Address selector
Selects the bus address for the
unit.
8. Volume control
Pictogram yellow
9.
10.
Microphone
11. Pictogram green
5
J3
K1
K2
K3
K4
K5
K6
K7
K8
K9
K10
P6
P4
P5
P7
P2
P3
8 9
6 7
10
11
