The SL6+ system consists of a main unit and up to six connected
voice stations. The system is based on a two-way system according to
EN 81-28 and uses a bus system for communication between main unit
and stations. The bus system consists of four wires: two for transfering
voice and data, and two for power supply.
Use the adress selector to set a unique adress for each station, ranging
from 1-6. It is important that each station have a unique address set so
the system is able to reach all specific voice stations.

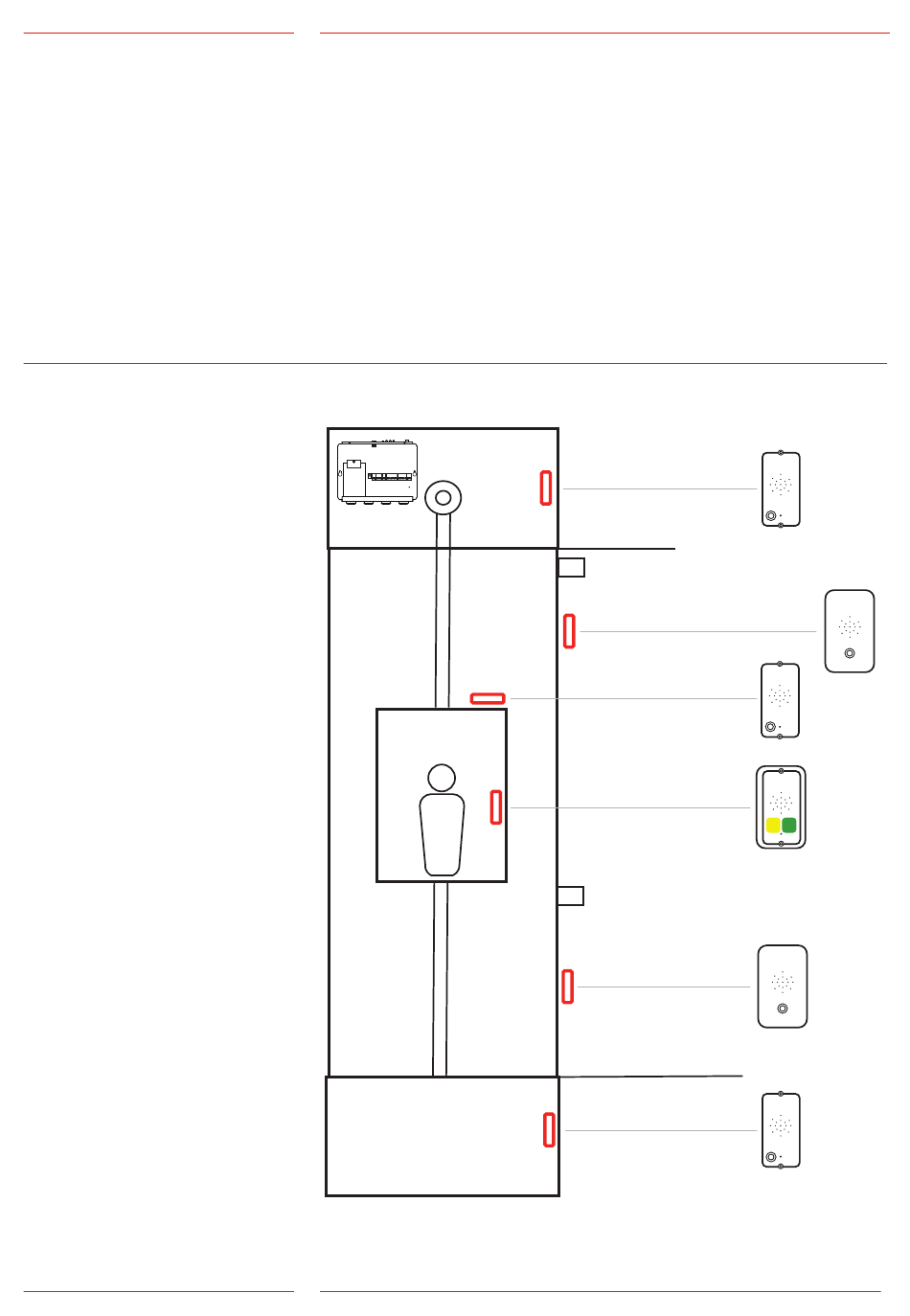

SL6+
