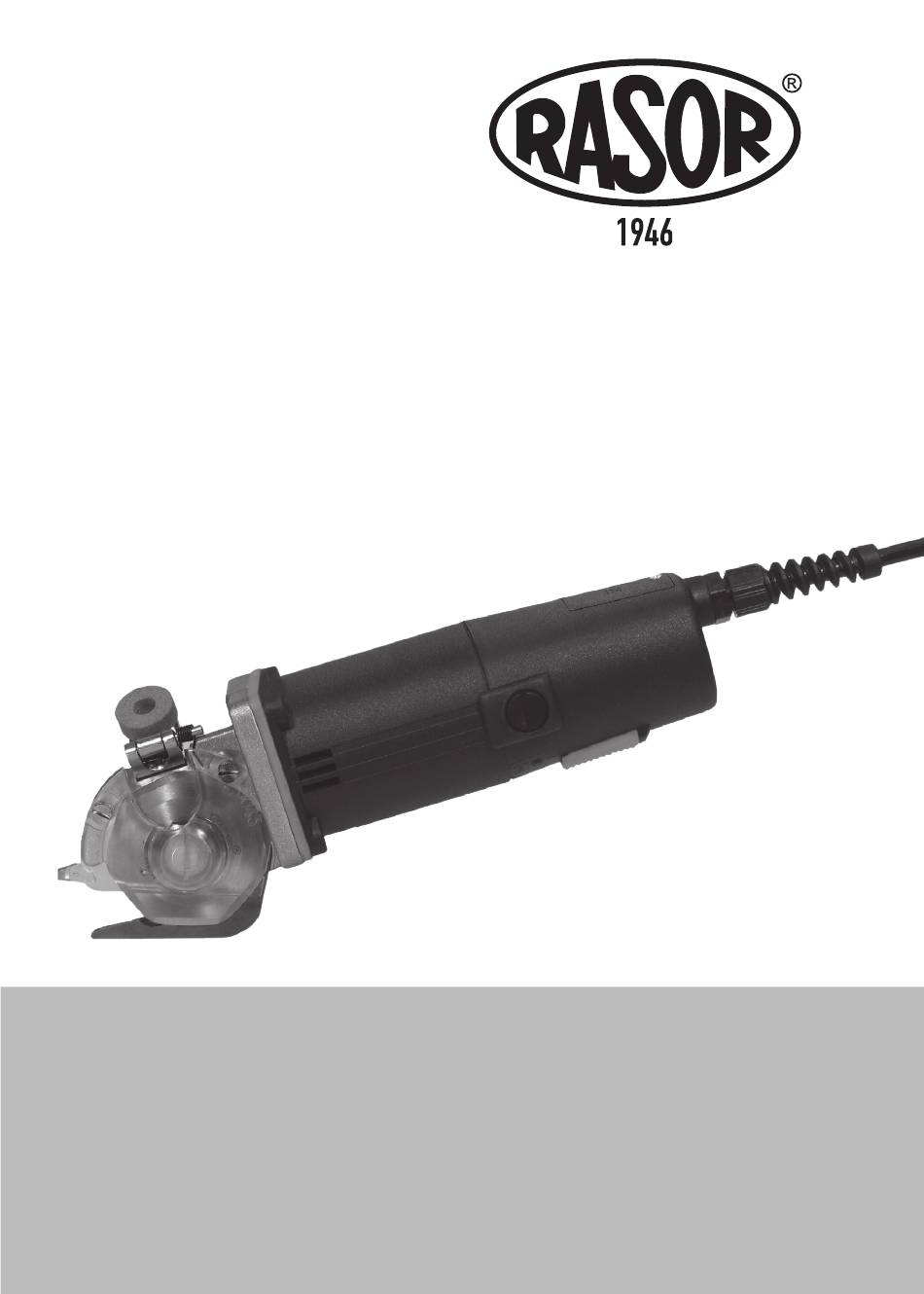

- Page 1 DS503MT ELECTRIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of electric scissors DS503MT and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, electric scissors DS503MT must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Class II double insulation Model READ THE Serial number SHEARING DS503MT INSTRUCTION Elect ri c R ISK 220 230 50 60 0.25... -
Page 6: Product Description

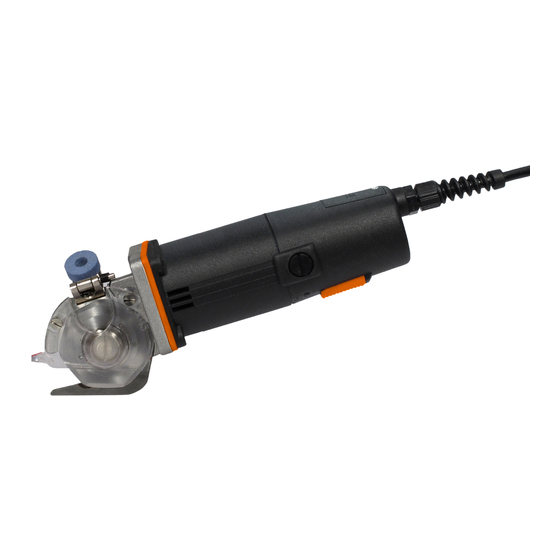

4. PRODUCT DESCRIPTION The fixture described in this manual are electric scissors model DS503MT which are used in order to quickly cut composite materials, in particular the fiber glass. They are extremely versatile, light and precise in the cutting operation. Thanks to the use of a thin foot and an... - Page 7 The technical data are only indicative and they can be changed without notice. 6. RUMOR LEVEL The maximum acoustic pressure level emitted by electric scissors DS503MT is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010.
-
Page 8: Use Warnings
• Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. • It is allowed to assemble electric scissors DS503MT on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... - Page 9 10. USE To use the electric scissors manually, proceed as follows: 1) Lay the material to be cut on a table; 2) Connect the scissors to the power supply; 3) Put the material on the cutting foot; 4) Enable the enabling push button (see picture 3); 5) Push the electric scissors in the desired direction, being careful to keep the material in front of them as stretched as possible and preventing it from...
- Page 10 12. REPLACEMENT OF THE MOTOR BRUSHES Electric scissors DS503MT are provided with a high power permanent magnet motor and torque. For this reason it is necessary to check periodically if the carbon brushes are worn in order not to jeopardize the motor operation and its duration period.
-
Page 11: Blade Replacement
5) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with its sharp side (the one with the writing Rasor) positioned towards the external side of the electric scissors. -
Page 12: Troubleshooting
LA 50SEXT 7-SIDE BLADE, 50 mm, EXTRA STEEL F 5018 MOTOR FRAME WITH MAGNETS F 50302CPL COMPLETE MOTOR COVER F 5047 THREADED BUSH P053/1CPL FOOT WITH WELDED COUNTERBLADE COMPLETE SET OF DS503MT F 5018/1 PAIR OF PERMANENT MAGNETS F 50303 FUSE COVER F 5048 RETAINING RING... - Page 13 ® dal 1946...
-
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
