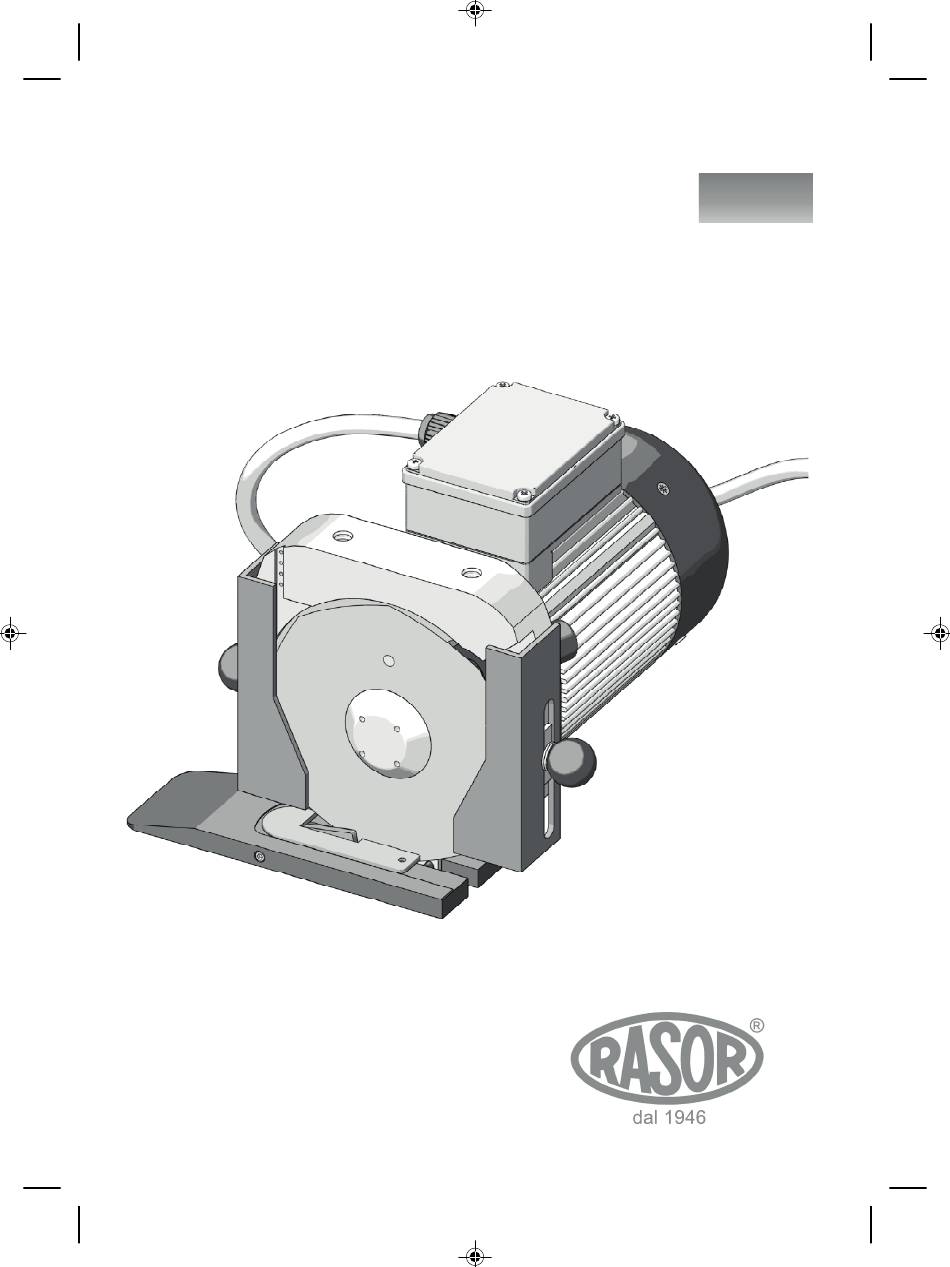

- Page 1 USE MANUAL English CUTTING UNIT MOD. DD120R ED.1-04/13 Enfocus Software - Customer Support...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office for any maintenance work.
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit DD120R and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit DD120R must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model R EAD Serial number SHEARING T H E DD120R R ISK INSTRUCTION 380/400-3ph 0,52 Electric data MANUAL... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a cutting unit model DD120R which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes located in the motor rest. DD120R can operate continuously and it can cut at various heights by means of multiple installation. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit DD120R is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A). -
Page 8: Use Warnings
• Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. • It is allowed to assemble cutting unit DD120R on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
The cutting unit is provided with earthing (yellow-green cable). Possible faulty earthing connections may cause unsafe working conditions. Possible damages are not at RASOR s.r.l. charge. ® The electric feeding must be supplied by a line protected against overcurrent by means of the automatic switch (magnetothermal) or delayed fuses with a suitable dimensions. -
Page 10: Installation And Use
6) Carry out the cutting operation. NOTE Cutting unit DD120R can work in a fixed position (the material has to be moved) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling. -
Page 11: Blade Replacement
Rasor can be seen by the operator. 6) Assemble all the components again and carry out the sharpening. -
Page 12: Troubleshooting
STEEL UPRIGHT SW126300 BLADE FIXING RING NUT GRT12M18 MOTOR COVER SW108000 COUNTERBLADE HOLDER SW121100 STEEL PIN SW1274DDR RIGHT BASE WITH BEVEL DD120R ALLEN SCREWS FOR DD120 SUPPORT SW1274DDRC RIGHT BASE WITH BEVEL DD120R, GRT12M19 MOTOR FAN SW108100 HARD METAL COUNTERBLADE... - Page 13 Enfocus Software - Customer Support...
-
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®... -
Page 15: D D Eclaration Of Conformity
60204-1, Directive 2002/44/EC and to technical rulings UNI EN 414:2002, UNI EN ISO 12100:2010. Noise tests have been carried out according to UNI EN ISO 11202:2010 Standards. Cutting unit DD120R has been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to the Italian legislative decree No. - Page 16 Enfocus Software - Customer Support...
