RASOR D 100 Use Manual

Bench cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

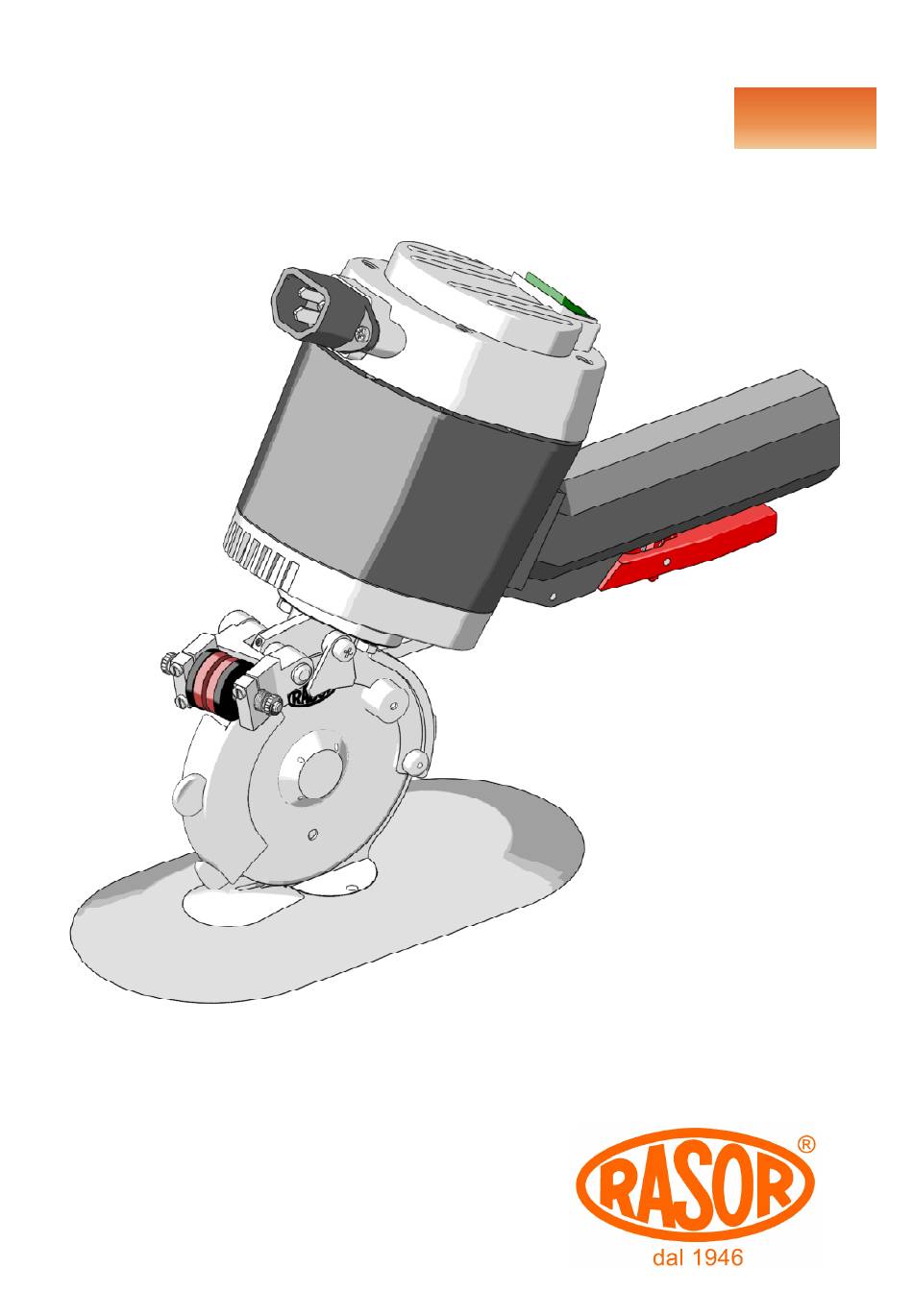

USE MANUAL
english
BENCH CUTTER
MOD. D 100
ED.1-07/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D 100 and is the answer not in the manual?

Questions and answers

Related Manuals for RASOR D 100

Summary of Contents for RASOR D 100

  • Page 1 USE MANUAL english BENCH CUTTER MOD. D 100 ED.1-07/08...
  • Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...

  • Page 3: General Safety Rules

    1. GENERAL SAFETY RULES This manual is an integral part of bench cutter D 100 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

  • Page 4: Informative Letter

    Moreover, they cannot work in case of rain. In case of damage or malfunction, table cutter D 100 must not be used until the Customer Care Technical Service has repaired them.

  • Page 5: Transport And Packing

    2. TRANSPORT AND PACKING The bench cutter is delivered in a cardboard box, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the package: Circular blade;...

  • Page 6: Product Description

    4. PRODUCT DESCRIPTION The fixtures described in this manual is a bench cutter model D 100 which is used in order to quickly cut fabrics in the textile industry and other materials. It is extremely versatile and powerful, it requires little maintenance and has very low management costs. Thanks to the...

  • Page 7: Technical Features

    The technical data are only indicative and they can be changed without notice. 6. RUMOR LEVEL The maximum acoustic pressure level emitted by bench cutter D 100 is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202 (1995). The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

  • Page 8: Use Warnings

    · Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. · It is allowed to assemble bench cutter D 100 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®...

  • Page 9: Residual Risks

    10. RESIDUAL RISKS Even though the bench cutter is safe, operators must pay attention to preserve their and other people’s safety. At the end of the working operations, the motor could be very hot. The cutting blade can work even when the protective device is disassembled. 11.
  • Page 10 12. BLADE SHARPENING AND SHARPENER ADJUSTMENT The blade sharpening is carried out with the cutter on, by lowering the proper lever (1, Pict. 8), until the cutting edge of the rotating blade is reached and the external edge is sharpened. To carry out a good sharpening, lower the lever progressively (1, Pict.

  • Page 11: Blade Replacement

    To carry out this operation, remove the protective plug “A” located on the motor support of the bench cutter and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” a few turns every 2-3 working hours (see picture 12).

  • Page 12: Troubleshooting

    16. TROUBLESHOOTING PROBLEM SOLUTION à Check the distance between the blade and the foot Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between the Check the fabric thickness blade and the sliding foot Check the compatibility between blade and fabric Make sure that the motor turns correctly Reduce the feeding speed...
  • Page 13 ® dal 1946...

  • Page 14: Warranty

    WARRANTY Rasor Elettromeccanica S.r.l. bench cutter has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop.

  • Page 15: Declaration Of Conformity

    EN 414:2002, UNI EN ISO 12100-1:2005 and UNI EN ISO 12100-2:2005. Noise tests have been carried out according to UNI EN ISO 11202 Standards. Bench cutter D 100 has been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to art.
  • Page 16 Authorized dealer (Stamp)
