  • Page 1 SW100 BENCH CUTTER USE MANUAL...
  • Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...

  • Page 3: General Safety Rules

    1. GENERAL SAFETY RULES This manual is an integral part of bench cutter SW100 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

  • Page 4: Informative Letter

    Moreover, they cannot work in case of rain. In case of damage or malfunction, bench cutter SW100 must not be used until the Customer Care Technical Service has repaired them.

  • Page 5: Transport And Packaging

    In such a case, the operator is the only person responsible. Class II double insulation Model Serial number SW100 220 230 50 60 Electric data Year of production R EAD...

  • Page 6: Product Description

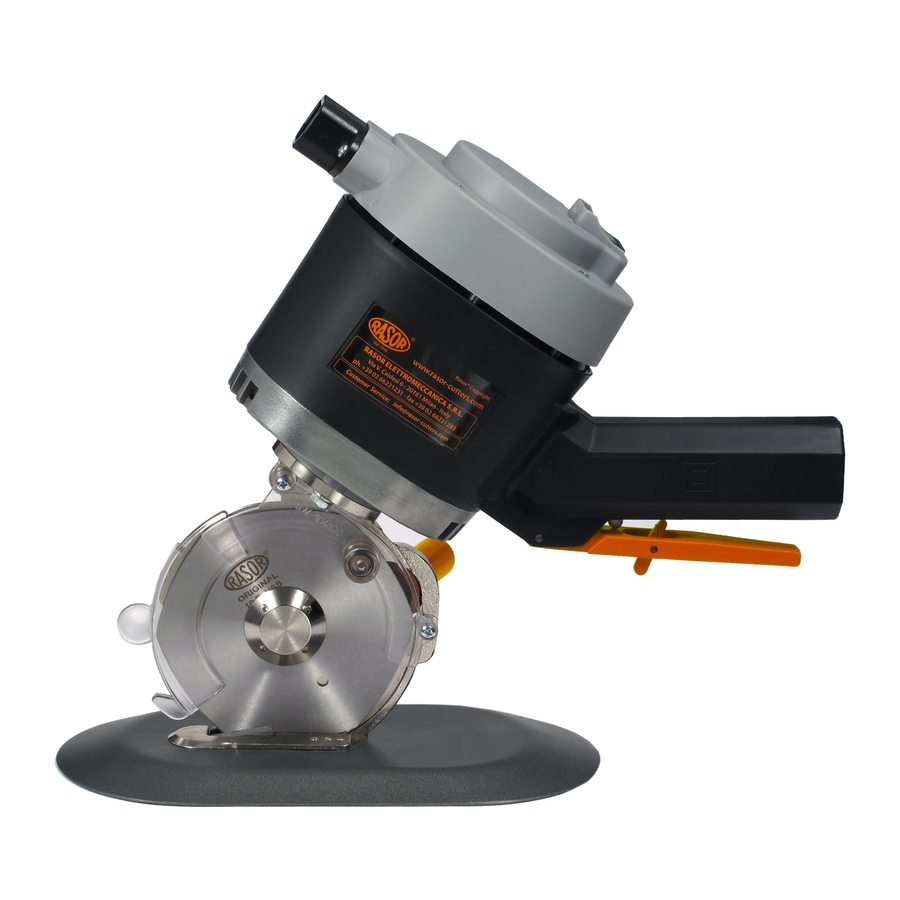

    4. PRODUCT DESCRIPTION The fixture described in this manual is a bench cutter model SW100 which is used in order to cut strong fabrics. By cutting with the blade and the counterblade always in contact and thanks to the steel upper quality of the blade supplied, SW100 cutter guarantees the clear separation without frayings of the two borders of the cut material.

  • Page 7: Technical Features

    This technical data is only indicative and may be subject to change without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by bench cutter SW100 is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202 (1995). The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

  • Page 8: Use Warnings

    • Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. • It is allowed to assemble bench cutter SW100 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®...

  • Page 9: Residual Risks

    10. RESIDUAL RISKS Even though the bench cutter is safe, operators must pay attention to preserve their and other people’s safety. At the end of the working operations, the motor could be very hot. The cutting blade can work even when the protective device is disassembled. 11.

  • Page 10: Blade Sharpening

    To carry out this operation, remove protective plug “A” located on the motor support of the bench cutter and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 2-3 working hours (see picture 10).

  • Page 11: Blade Replacement

    5) Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it, so taht the Rasor writing can be seen by the operator. 6) Assemble all the components again and carry out...

  • Page 12: Troubleshooting

    16. TROUBLESHOOTING PROBLEM SOLUTION Check that the blade and the counterblade are in contact Check the kind of fabric Sharpen the blade Check the fabric thickness The fabric is not cut or it gets stuck between the blade and the counterblade Check the compatibility between blade and fabric Make sure that the motor turns correctly Reduce the feeding speed...
  • Page 13 ® dal 1946...

  • Page 14: Warranty

    WARRANTY Rasor Elettromeccanica S.r.l. bench cutter has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop.
  • Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
