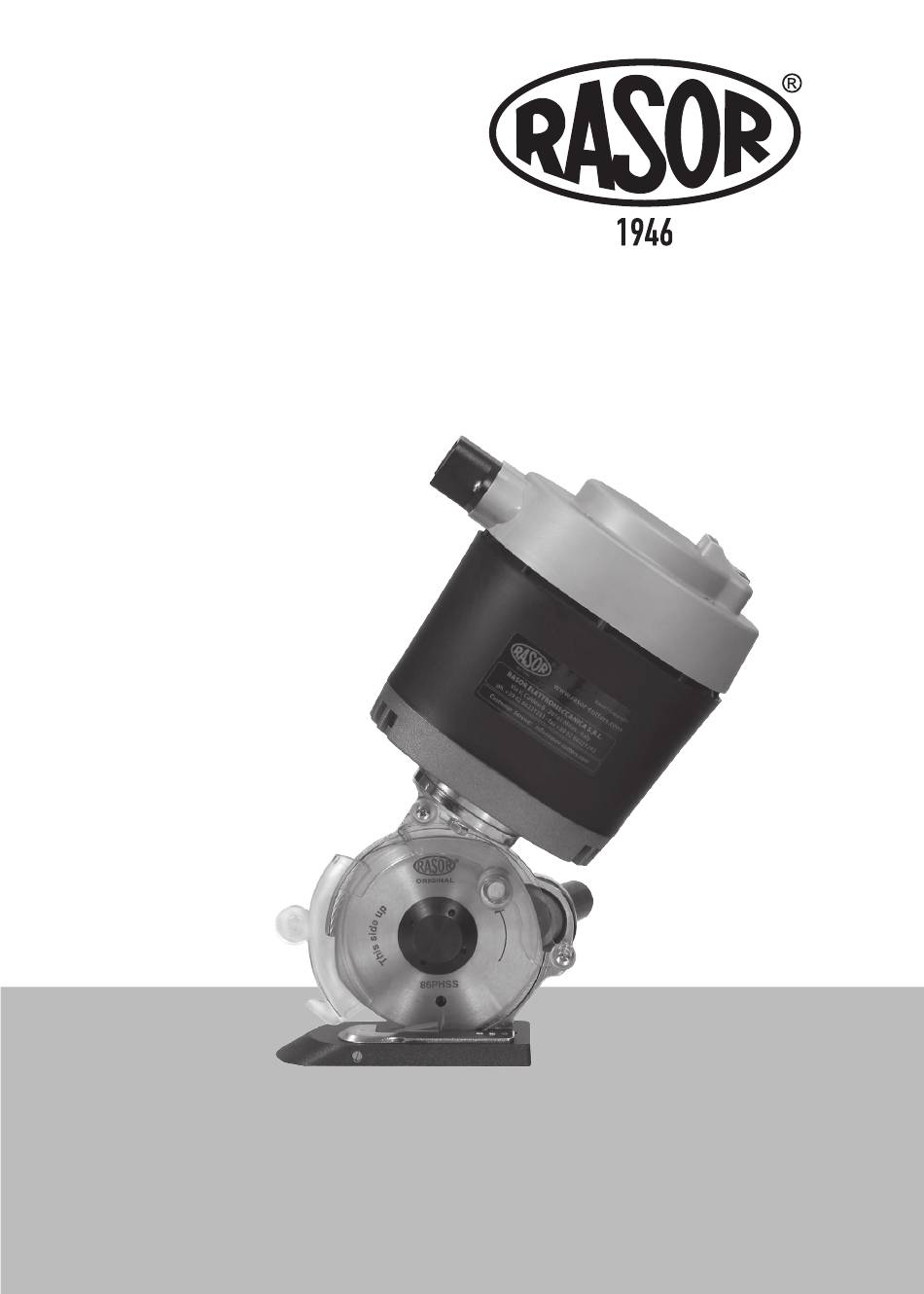

- Page 1 D86PS2 CUTTING UNIT USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit D86PS2 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit D86PS2 must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Class II double insulation Model Serial number D86PS2 220 240 50 60 Electric data Year of production READ THE... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a small cutting unit model D86PS2 which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes located in the motor support. D86PS2 can operate continuously and it can cut at various widths by means of multiple installation. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit D86PS2 is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202:2010. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A). -
Page 8: Use Warnings
Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. It is allowed to assemble cutting unit D86PS2 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
6) Enable the switch; once it has been enabled, it lights with a green light (see picture 8). NOTE Cutting unit D86PS2 can work in a fixed position (the material has to be moved) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling. -
Page 10: Blade Sharpening
To carry out this operation, remove protective plug “A” located on the motor support of the cutting unit and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 2-3 working days (see picture 11). -
Page 11: Blade Replacement
Rasor can be seen by the operator. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
16. TROUBLE SHOOTING PROBLEM SOLUTION Check the distance between the blade and the counterblade Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the motor turns correctly Reduce the feeding speed... - Page 14 The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®...
- Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
