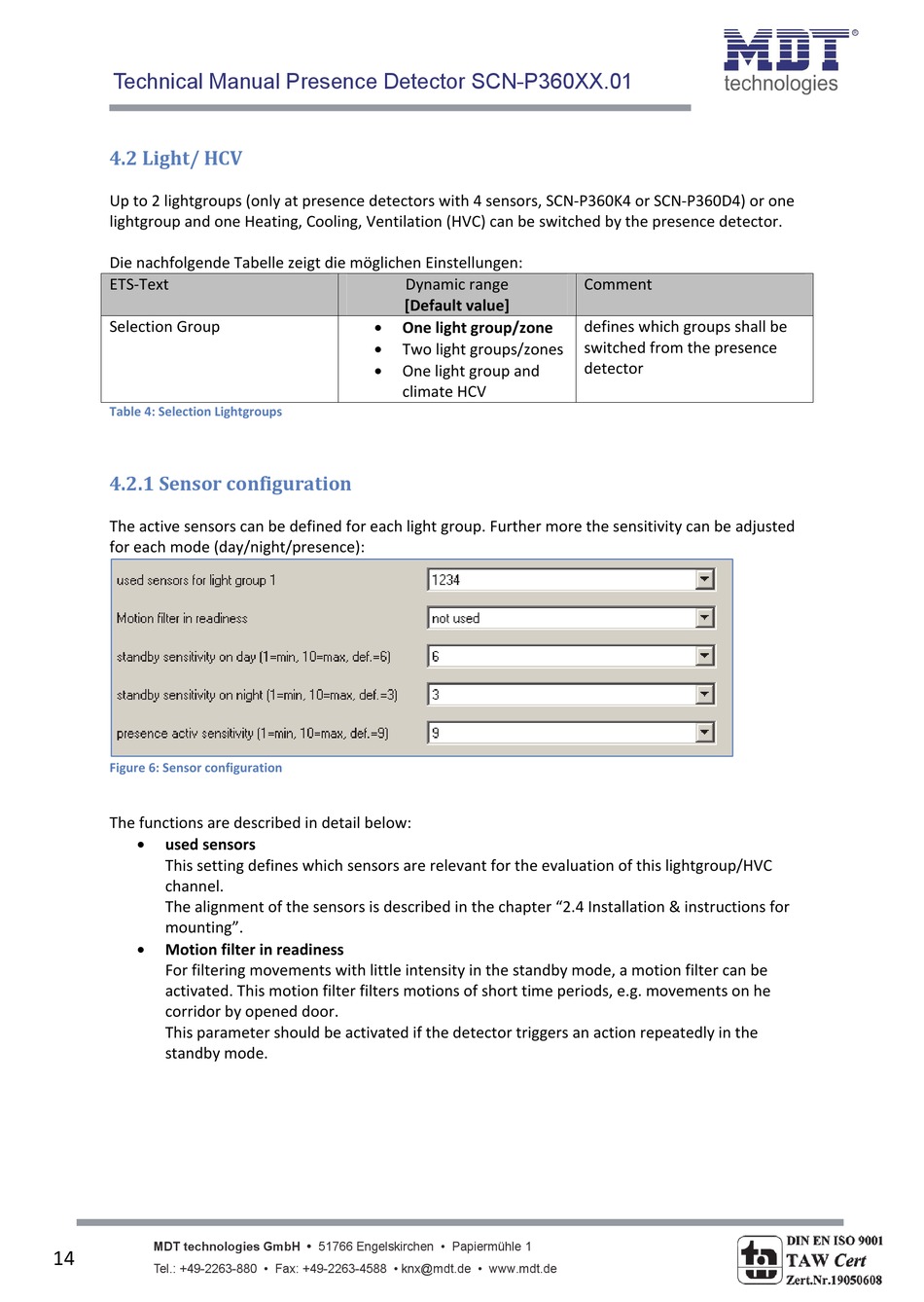

Technical Manual Presence Detector SCN-P360XX.01
4.2 Light/ HCV
Up to 2 lightgroups (only at presence detectors with 4 sensors, SCN‐P360K4 or SCN‐P360D4) or one
lightgroup and one Heating, Cooling, Ventilation (HVC) can be switched by the presence detector.
Die nachfolgende Tabelle zeigt die möglichen Einstellungen:
ETS‐Text
Selection Group
Table 4: Selection Lightgroups
4.2.1 Sensor configuration
The active sensors can be defined for each light group. Further more the sensitivity can be adjusted
for each mode (day/night/presence):
Figure 6: Sensor configuration
The functions are described in detail below:

used sensors
This setting defines which sensors are relevant for the evaluation of this lightgroup/HVC
channel.
The alignment of the sensors is described in the chapter "2.4 Installation & instructions for
mounting".

Motion filter in readiness
For filtering movements with little intensity in the standby mode, a motion filter can be
activated. This motion filter filters motions of short time periods, e.g. movements on he
corridor by opened door.
This parameter should be activated if the detector triggers an action repeatedly in the
standby mode.
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
14
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[Default value]

One light group/zone

Two light groups/zones

One light group and
climate HCV
Comment
defines which groups shall be
switched from the presence
detector
