Technical Manual Presence Detector SCN-P360XX.01
The presence detector should be placed in the middle of the room. It is important for the constant
level control to install the detector in a minimum distance of 60 cm to the next lamp and in the line
of the middle light band.

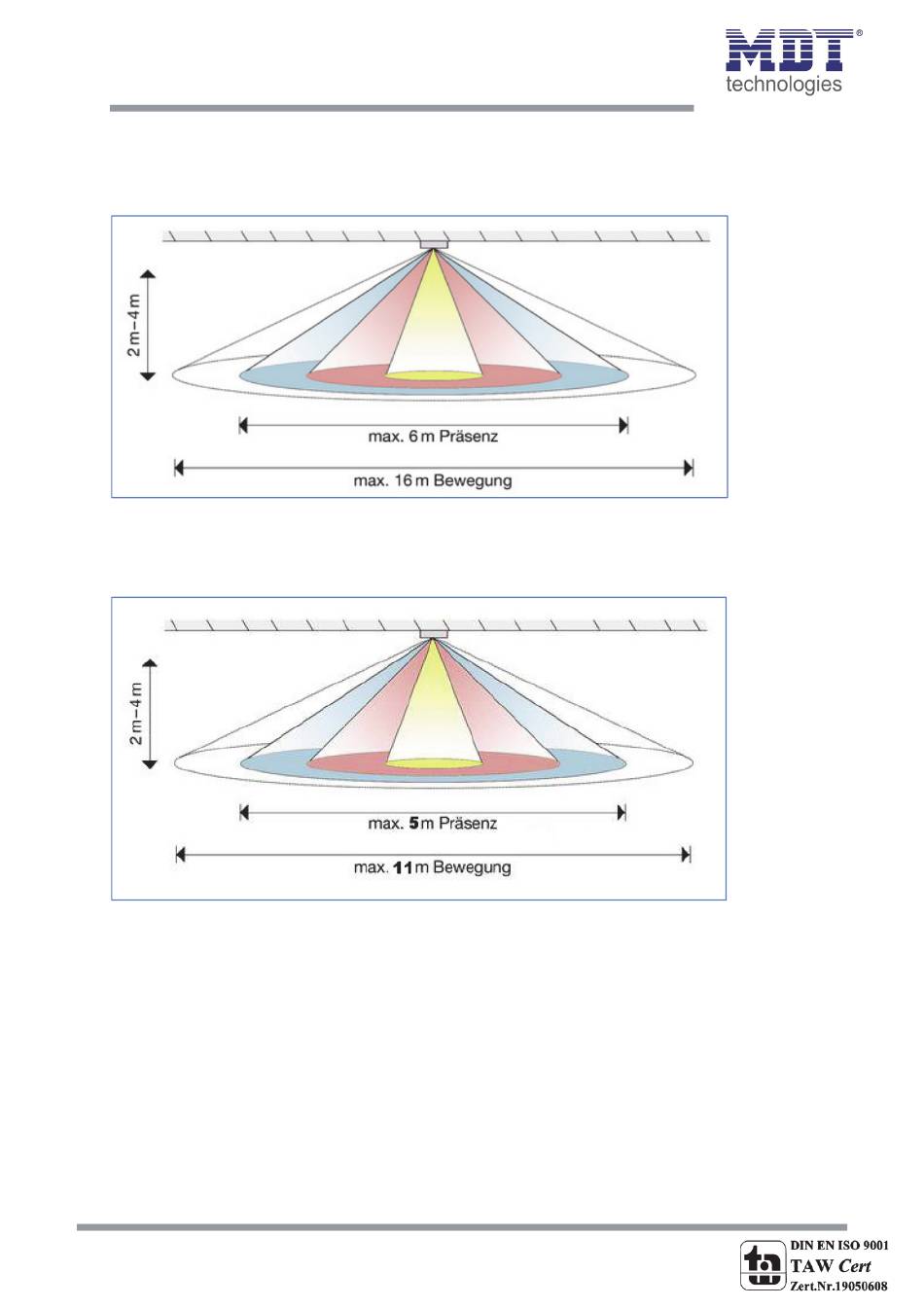

The following figure shows the detection area of the presence detector:
Figure 3: Detection area SCN‐P360x4.01
Figure 4: Detection area SCN‐P360x3.01
