Technical Manual Presence Detector SCN-P360XX.01

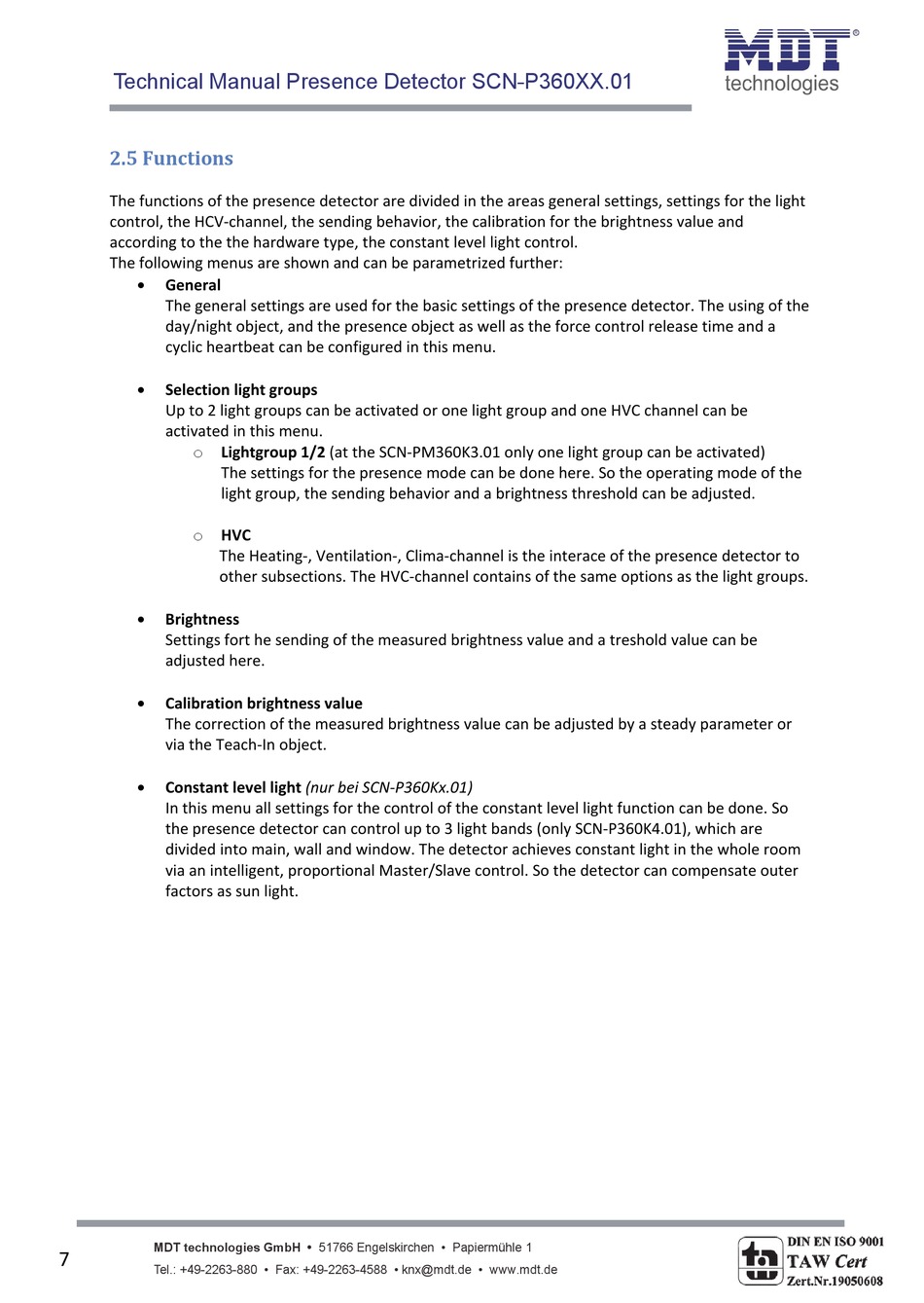

2.5 Functions

The functions of the presence detector are divided in the areas general settings, settings for the light
control, the HCV‐channel, the sending behavior, the calibration for the brightness value and
according to the the hardware type, the constant level light control.
The following menus are shown and can be parametrized further:

General
The general settings are used for the basic settings of the presence detector. The using of the
day/night object, and the presence object as well as the force control release time and a
cyclic heartbeat can be configured in this menu.

Selection light groups
Up to 2 light groups can be activated or one light group and one HVC channel can be
activated in this menu.
o Lightgroup 1/2 (at the SCN‐PM360K3.01 only one light group can be activated)
The settings for the presence mode can be done here. So the operating mode of the
light group, the sending behavior and a brightness threshold can be adjusted.
o HVC
The Heating‐, Ventilation‐, Clima‐channel is the interace of the presence detector to
other subsections. The HVC‐channel contains of the same options as the light groups.

Brightness
Settings fort he sending of the measured brightness value and a treshold value can be
adjusted here.

Calibration brightness value
The correction of the measured brightness value can be adjusted by a steady parameter or
via the Teach‐In object.

Constant level light (nur bei SCN‐P360Kx.01)
In this menu all settings for the control of the constant level light function can be done. So
the presence detector can control up to 3 light bands (only SCN‐P360K4.01), which are
divided into main, wall and window. The detector achieves constant light in the whole room
via an intelligent, proportional Master/Slave control. So the detector can compensate outer
factors as sun light.
