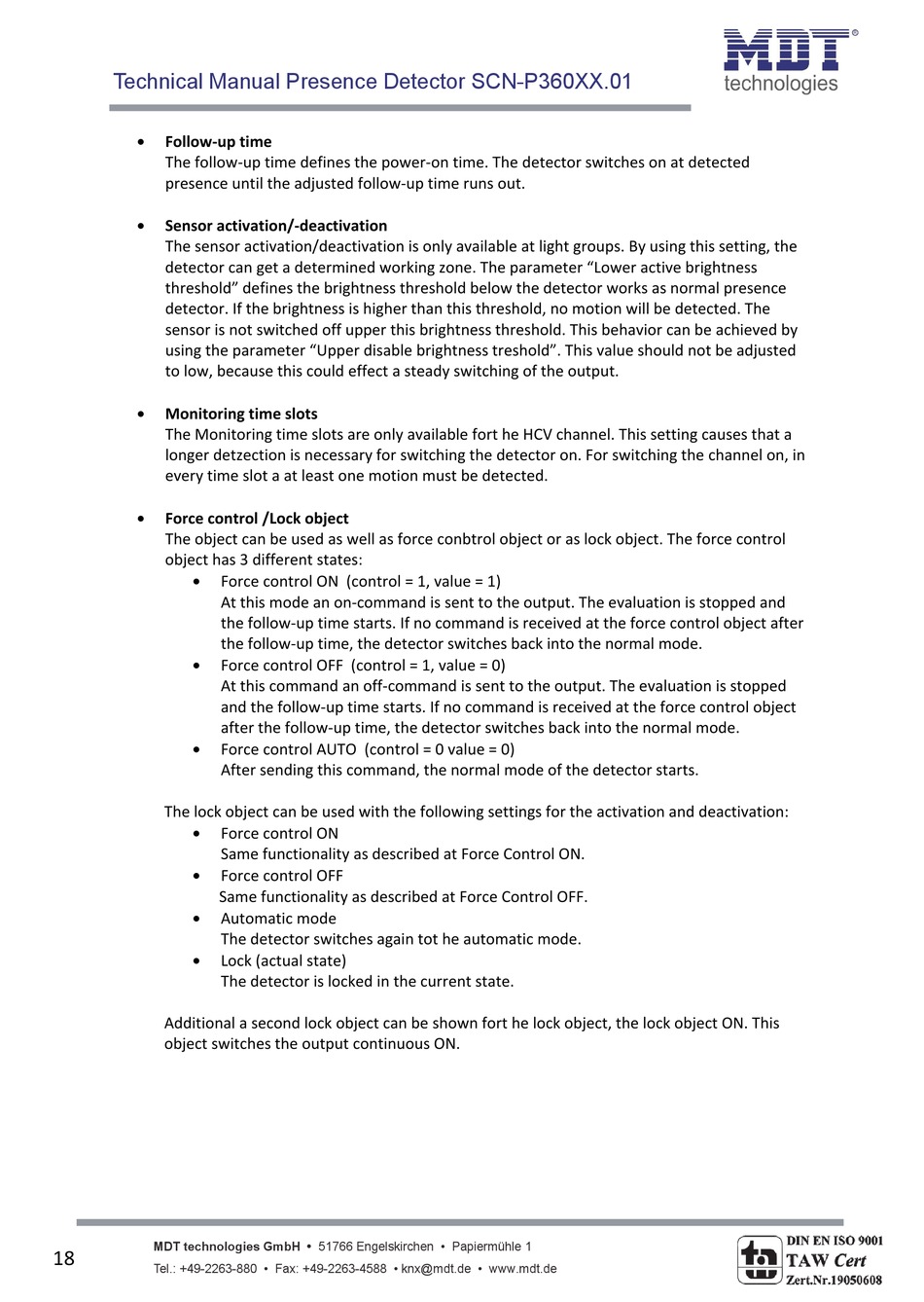

Follow‐up time
The follow‐up time defines the power‐on time. The detector switches on at detected
presence until the adjusted follow‐up time runs out.

Sensor activation/‐deactivation
The sensor activation/deactivation is only available at light groups. By using this setting, the
detector can get a determined working zone. The parameter "Lower active brightness
threshold" defines the brightness threshold below the detector works as normal presence
detector. If the brightness is higher than this threshold, no motion will be detected. The
sensor is not switched off upper this brightness threshold. This behavior can be achieved by
using the parameter "Upper disable brightness treshold". This value should not be adjusted
to low, because this could effect a steady switching of the output.

Monitoring time slots
The Monitoring time slots are only available fort he HCV channel. This setting causes that a
longer detzection is necessary for switching the detector on. For switching the channel on, in
every time slot a at least one motion must be detected.

Force control /Lock object
The object can be used as well as force conbtrol object or as lock object. The force control
object has 3 different states:

Force control ON (control = 1, value = 1)
At this mode an on‐command is sent to the output. The evaluation is stopped and
the follow‐up time starts. If no command is received at the force control object after
the follow‐up time, the detector switches back into the normal mode.

Force control OFF (control = 1, value = 0)
At this command an off‐command is sent to the output. The evaluation is stopped
and the follow‐up time starts. If no command is received at the force control object
after the follow‐up time, the detector switches back into the normal mode.

Force control AUTO (control = 0 value = 0)
After sending this command, the normal mode of the detector starts.
The lock object can be used with the following settings for the activation and deactivation:

Force control ON
Same functionality as described at Force Control ON.

Force control OFF
Same functionality as described at Force Control OFF.

Automatic mode
The detector switches again tot he automatic mode.

Lock (actual state)
The detector is locked in the current state.
Additional a second lock object can be shown fort he lock object, the lock object ON. This
object switches the output continuous ON.
