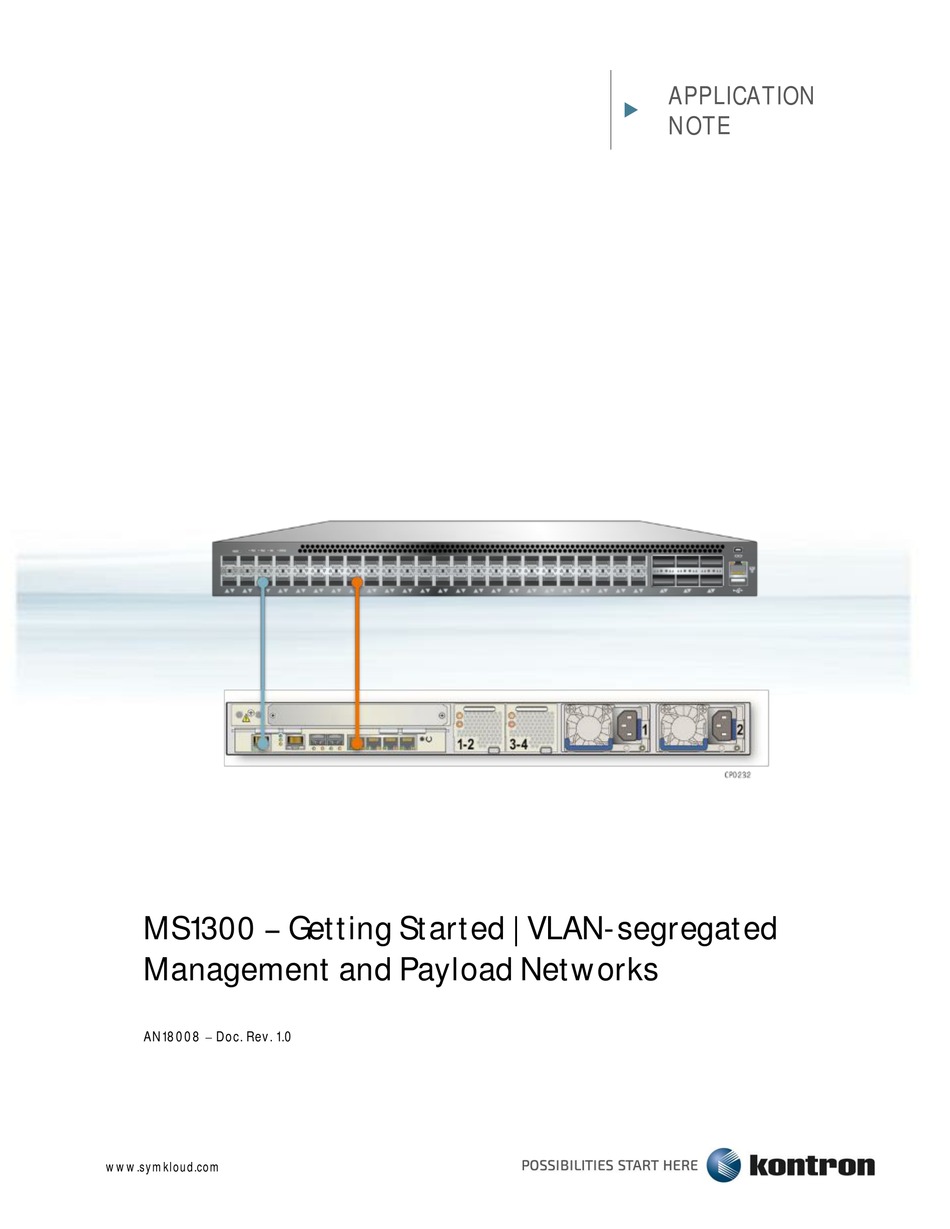

- Page 1 APPLICATION NOTE MS1300 Getting Started | VLAN-segregated Management and Payload Networks AN18008 Doc. Rev. 1.0 www.symkloud.com // 1...
-
Page 2: Table Of Contents
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Table of Contents Table of Contents ....................................... 2 List of Tables ........................................2 List of Figures ........................................2 Introduction ......................................3 1.1. Platform Architecture ....................................4 Introduction and Planning ................................8 Initial Platform Connections ................................ -
Page 3: 1/ Introduction
The steps described in this use case assume that the MS1300 has default configurations loaded in all its elements (factory default). Kontron created other use cases related to the MS1300 network configuration. You may refer to them if you want to: Create a common network for management and payload traffic ... -
Page 4: Platform Architecture
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Note that each MS1300 platform like most rack-mounted deployments contains a switch. It is therefore recommended that you identify the appropriate upstream topology with the help of the IT/network personnel managing the upstream network hardware and configuration. -
Page 5: Figure 2: Ms1300 Management Interconnections
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Each individual modular server processing node (MSP node) has network connections to the switch. Figure 2: MS1300 management interconnections Figure 3: Rack architecture equivalence www.symkloud.com // 5... -
Page 6: Table 1: Faceplate Connectors And Leds
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Figure 4: Faceplate connectors and LEDs Table 1: Faceplate connectors and LEDs Label Description Faceplate marking Management 1GbE RJ45 port MNGT Serial console RJ45 port 1010 10GbE SFP+ uplink port Quad GbE RJ45 uplink ports 3,4,5,6 ID LED (Blue): Payload power removed = On... -
Page 7: Figure 5: Factory Default Ip Addresses
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Figure 5: Factory default IP addresses www.symkloud.com // 7... -
Page 8: 2/ Introduction And Planning
Follow the steps in the order in which they are presented for proper network configuration. The VLANs, subnets and IPs used in this document are the default Kontron values. A valid equivalent must be determined for all the values shown in bold orange based on your infrastructure. -
Page 9: Table 2: User Infrastructure Equivalent Form
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Table 2: User infrastructure equivalent form example using an MS1300 platform with 3 MSP8050 nodes Elements to plan per network Kontron default or User value Comment value used for example purposes... - Page 10 The components used in the sample setup described in this application note are: Cisco C3560X-24T-S Kontron MS1300 platform (including an MSH8900 hub and 3 MSP8050 modular server processing nodes running factory default configurations) The instructions included above are provided as a reference for demonstration purposes only.
-
Page 11: 3/ Initial Platform Connections
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 3/ Initial Platform Connections Unboxing the Initial system Switch Management Payload Performance platform connections configuration configuration access installation assessment 3.1. Introduction By completing the steps described in this section, you will have access to: The platform serial console used to access and configure management and payload components. - Page 12 MS1300 Getting Started | VLAN-segregated Management and Payload Networks You have now completed section Initial System Connections. You should now have access to: The platform serial console used to access and configure management and payload components. You can now proceed to section Switch Configuration. Unboxing the Initial system Switch...
-
Page 13: 4/ Step-By-Step Msh8900 Switch Configuration
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 4/ Step-by-Step MSH8900 Switch Configuration Unboxing the Initial system Switch Management Payload Performance platform connections configuration configuration access installation assessment 4.1. Log In to the Switch CLI To access the switch CLI using the Ctrl+g - command: Simultaneously press and hold the Release both keys minus... -
Page 14: Configure The Msh8900 Switch (Static Ip Source)
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 4.2. Configure the MSH8900 Switch (Static IP Source) If the copy running-config startup-config step is skipped or forgotten, the configuration will be lost at the next switch reboot and/or power cycle! Make sure you perform this step each time you change the configuration. -
Page 15: Verify Msh8900 Switch Management Ip Details And Vlans
MS1300 Getting Started | VLAN-segregated Management and Payload Networks Copy this command list after having adapted it based on the values selected in Table 2. Command Purpose # configure terminal Enter configuration mode. vlan Create VLAN 10 in the VLAN database. name DATA Enter a name for VLAN 10. -
Page 16: Confirm Proper Networking Configuration (Management Network)
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 4.6. Confirm Proper Networking Configuration (Management Network) Confirm the validity of the networking configuration by testing network connectivity to the external network via the management IP of the ToR switch. Command Purpose # ping ip 192.168.101.254... -
Page 17: Confirm Proper Networking Configuration (Payload/Data Network)
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 4.9. Confirm Proper Networking Configuration (Payload/Data Network) Confirm the validity of the networking configuration by retesting the connectivity on the management network, and by testing network connectivity to an external payload/data network. To do so, we will temporarily enable VLAN routing on VLAN 10 and define an IP for it. -
Page 18: 5/ Management Configuration
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 5/ Management Configuration Unboxing the Initial system Switch Management Payload Performance platform connections configuration configuration access installation assessment By completing the steps described in this section, you will set up the management IP address, i.e. the address required to access the platform management features. -
Page 19: Configure The Msh8900 Shmc And The Bmc/Fru0 On Each Msp Node (Static Ip Source)
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 5.2. Configure the MSH8900 ShMC and the BMC/FRU0 on Each MSP Node (Static IP Source) The configuration of the gateway is optional for a static IP. Copy this command list after having adapted it based on the values selected in Table 2. -
Page 20: Confirm Configurations
MS1300 Getting Started | VLAN-segregated Management and Payload Networks 5.4. Confirm Configurations Check the following configurations: IP address source (Static or DHCP), IP address, subnet mask, default gateway IP and 802.1q VLAN ID. Copy this command list after having adapted it based on the values selected in Table 2. The command list must be adapted based on the number of MSP nodes installed in the platform as well as their location (slot 1, 2 or 3). - Page 21 Kontron designs hardware for the software defined world. Service providers and enterprise clients around the globe collaborate with Kontron and its ISV and channel partners to deploy new services with greater speed, confidence and operational efficiency. Our portfolio is a...
