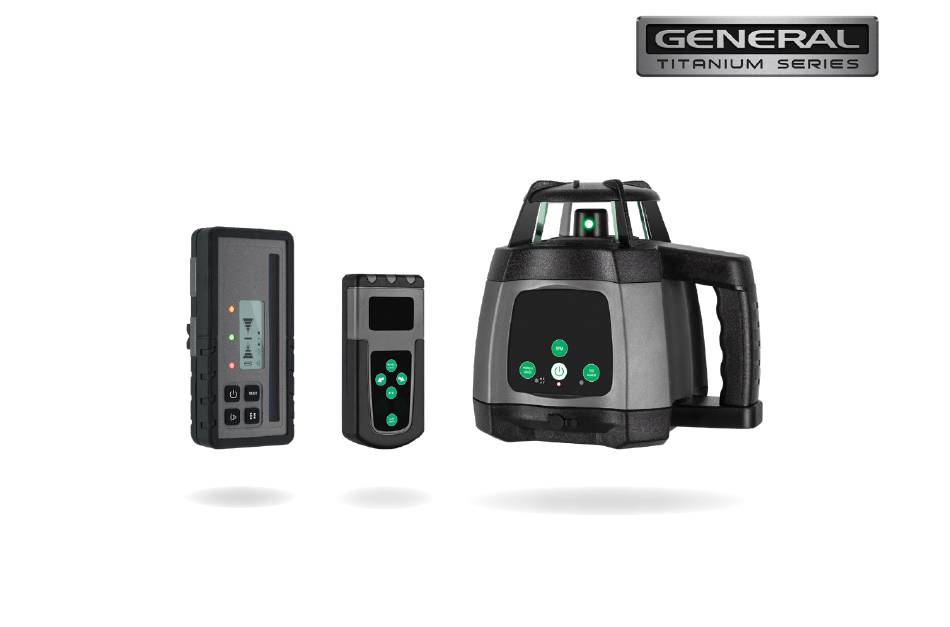

  • Page 1 T R L - 1 0 G G R E E N R O T A R Y L A S E R I N S T R U C T I O N M A N U A L...
  • Page 2 SAFETY Read the following safety instructions before • Tool service must be performed only by qualified attempting to operate this product. repair personnel. Repairs, service or maintenance performed by unqualified personnel will void the Keep these instructions in a safe place or store in the warranty.
  • Page 3 SAFETY (continued) CAUTION: Class 3 Laser Product • Do not let children come in contact with the laser. • Turn the laser off when it is not in use. Leaving • Never look into the laser beam directly and the laser on increases the risk of staring into the intentionally.

  • Page 4: Item Checklist

    If anything is missing please contact your retailer. MANUAL GRADE MANU AL GRADE TI LT ALARM SLEEP MODE General Titanium Remote control Detector & clamp Tripod & Staff Series TRL-10G This accessory is only included in the TRL-10G Package variant (88170) INCHES Carry case...
  • Page 5 LASER OVERVIEW: FRONT Protective lighthouse Rotating laser port Control panel MANU AL TI LT GRADE ALARM Charging port...
  • Page 6 LASER OVERVIEW: CONTROL PANEL Power Manual grade mode Speed control Tilt alarm MANUAL TILT X / Y axis indicator GRADE ALARM (Manual grade mode) X-axis = solid LED light Tilt alarm indicator Y-axis = flashing LED light Power indicator...
  • Page 7 LASER OVERVIEW: BASE Charging port 5/8” x 11 thread for horizontal operation on a tripod Battery thumb screw...
  • Page 8 REMOTE CONTROL OVERVIEW: FRONT Manual grade mode Grade adjustment (manual mode) Grade adjustment (manual mode) MANUAL GRADE Speed control SLEEP MODE Sleep mode...
  • Page 9 REMOTE CONTROL OVERVIEW: BACK Battery compartment...
  • Page 10 DETECTOR OVERVIEW: FRONT LED indicator Laser sensor LED indicator LCD display screen LED indicator Screen backlight (hold) Power on / off (detector) Detection mode Speaker on / off...
  • Page 11 DETECTOR OVERVIEW: LCD SCREEN Arrow indicator Detection mode Centre alignment Arrow indicator Brightness indicator Speaker indicator Battery indicator...
  • Page 12 DETECTOR OVERVIEW: BACK Speaker Staff clamp mounting point LCD display screen Battery compartment...
  • Page 13 USING YOUR LASER POWER SUPPLY Indoor charger Rechargeable battery pack • The indoor charger is for indoor use only. • The instrument is supplied with a rechargeable Ni-MH battery pack that is located in the base of • Do not store in locations where moisture can be the instrument.
  • Page 14 USING YOUR LASER (continued) Charging the rechargeable battery pack Removing and inserting the rechargeable battery pack • Insert the charger into one of the two charging ports. The charging ports are located on the • Loosen the battery thumb screw on the base of battery pack and underneath the control panel.
  • Page 15 USING YOUR LASER (continued) HORIZONTAL MEASUREMENT SET UP VERTICAL MEASUREMENT SET UP Level surface set up Level surface set up • Select a place as close and practical to the work • Select a place as close and practical to the work site as possible, and ensure that the location is site as possible, and ensure that the location is clear of traffic.

  • Page 16: Operation

    USING YOUR LASER (continued) OPERATION Speed control • Press the speed control button on the remote Powering on control to cycle through various rotational speeds. • Press the power button once and the instrument will power on and begin automatically self- levelling.
  • Page 17 USING YOUR LASER (continued) • To change to the Y-axis, press the manual grade Tilt alarm mode button. The LED X / Y axis indicator on the • Once the instrument has been levelled off the tilt laser control panel will flash to indicate the Y-axis alarm can be enabled by pressing the tilt alarm is selected.

  • Page 18: Using Your Remote

    USING YOUR REMOTE POWER SUPPLY REMOTE OPERATION • The remote is powered by two AA alkaline • Ensure the instrument is turned on and the laser batteries head is rotating. • Press the speed control button to increase or decrease the speed of the laser head rotation. Battery replacement •...

  • Page 19: Detector Operation

    USING YOUR DETECTOR POWER SUPPLY DETECTOR OPERATION • Switch the detector on by pressing the power • The detector is powered by one 9V alkaline battery. button. The LCD screen will turn on and the speaker will emit a small tone to indicate the instrument is operating.
  • Page 20 USING YOUR DETECTOR (continued) • Hold the detector upright for horizontal beams or rotate 90° for vertical beams. • The direction arrows or level line on the LCD screen will indicate the position of the laser beam. A digital increment display will indicate the position of the laser beam.

  • Page 21: Checking Calibration

    CHECKING CALIBRATION Before doing any precision levelling it is advised to check the calibration of the instrument. • Set up the laser on a tripod at about 30m facing a wall or staff with a detector. • Allow the instrument to level. •...

  • Page 22: Troubleshooting

    TROUBLE SHOOTING Error Cause & Solution • Check the batteries. They may be in the wrong way or need replacing. Laser does not turn on • Check the battery compartment for signs of damage. Ensure they are clean and not bent. • Check the batteries.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE • This is a precision measuring instrument • The operator should check the accuracy of the and should always be handled with care and instrument before precision levelling is attempted. transported within the carry case provided. Failure to do so may result in inaccurate measurements.

  • Page 24: Warranty

    WARRANTY 3 YEAR STANDARD WARRANTY PERIOD 7 YEAR EXTENDED WARRANTY PERIOD 1. The warranty period for your tool is 3 years from 1. The extended warranty is available on selected the date of purchase. tools only. 2. The warranty period for batteries, battery packs 2.
  • Page 25 WARRANTY (continued) AUSTRALIA NEW ZEALAND “Our goods come with guarantees that cannot be For more information please visit excluded under the Australian Consumer Law. You consumerprotection.govt.nz are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 26: Customer Support

    CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527...

  • Page 27: Specifications

    SPECIFICATIONS Specifications TRL-10G TRL-10G Package Product code 88170 88180 Warranty 7 Years* Accuracy ±1.5mm at 30m Operating range 300m (diameter) Levelling range ±9% / ±5° Laser class 3 Green Battery life 20 hours+ IP rating Weight (kg) 2.38 Dimensions (mm) 210 x 157 x 200 *With online registration (3 years without registration).
