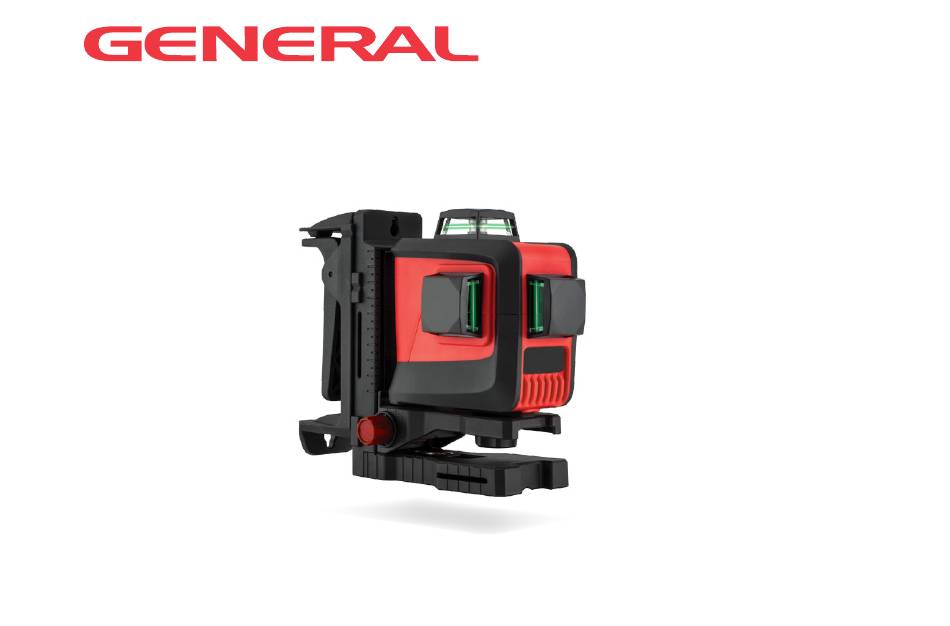

3 D G
M U L T I - L I N E L A S E R
I N S T R U C T I O N
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3DG and is the answer not in the manual?

Questions and answers

Related Manuals for General 3DG

Summary of Contents for General 3DG

  • Page 1 3 D G M U L T I - L I N E L A S E R I N S T R U C T I O N M A N U A L...
  • Page 2 SAFETY Read the following safety instructions before ▪ Tool service must be performed only by attempting to operate this product. qualified repair personnel. Repairs, service Keep these instructions in a safe place or store or maintenance performed by unqualified in the carry case for future reference. personnel will void the warranty.
  • Page 3 Do not set up the tool at a position where WARNING: DO NOT DISASSEMBLE ▪ THE LASER. There are no user serviceable the laser beam can cross any person at head height. parts inside. Disassembling the laser will ▪ Do not let children come in contact with the void all warranties on the product.

  • Page 4: Item Checklist

    ITEM CHECKLIST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. INCHES General 3DG Laser target Laser glasses Multi-purpose mount (two piece) Indoor charger Rechargeable batteries Carry case (two piece)

  • Page 5: Laser Overview

    LASER OVERVIEW Control panel Laser port Laser port Power switch Battery door cover 1/4” tripod thread...
  • Page 6 LASER OVERVIEW: CONTROL PANEL Pulse mode (press and hold for 5 seconds) LINE Line mode (press)

  • Page 7: Detector Overview

    DETECTOR OVERVIEW The detector is an optional accessory which can be purchased from your retailer. LED direction indicator Bubble vial Laser sensor LED centre indicator LED direction indicator LED speaker indicator LED power indicator Sound on / off Power Speaker Bubble vial...
  • Page 8 USING YOUR LASER POWER SUPPLY Charging or replacing the Ni-Mh batteries ▪ Remove the battery cover door and the ▪ The instrument is supplied with four AA batteries. Ni-Mh batteries as its power source. ▪ Insert the batteries into the indoor charger. Insert the supplied power cable and plug into a power source.
  • Page 9 SET UP OPERATION ▪ To turn the instrument on, slide the ▪ Select a place as close as practical power switch to the “on” position. Self to the work site. Ensure the location is levelling will commence and all the clear of traffic.
  • Page 10 USING YOUR DETECTOR ▪ Press and hold the line / pulse mode button on the top of the instrument for 5 seconds to enter into pulse mode. ▪ Switch the detector on by pressing the power button. The speaker will beep indicating the instrument is operating.
  • Page 11 MULTI-PURPOSE MOUNT OVERVIEW Clamp Magnets Screw fixing point Height adjustment lock knob 1/4” thread 1/4” thread thumb screw 5/8” thread Screw fixing point 1/4” thread Height adjustment knob...
  • Page 12 USING THE MULTI-PURPOSE MOUNT Mounting onto a magnetic surface ▪ Attach the instrument to the mount using the thumb screw. ▪ Attach the mount to a metal surface, ensuring that the mount has a strong hold before releasing your hands. ▪...
  • Page 13 USING THE MULTI-PURPOSE MOUNT (continued) Mounting via the clamp ▪ To rotate the instrument on the mount, loosen the mini thumb screw, position the ▪ Attach the two mount pieces together via instrument, and then re-tighten the thumb the magnetic backing. screw.
  • Page 14 USING THE MULTI-PURPOSE MOUNT (continued) Mounting via screw fixing points Mounting onto a tripod ▪ Attach the instrument to the mount using ▪ Attach the mount onto the tripod via the the thumb screw. 5/8” or 1/4” thread. ▪ Fix a screw into a secure surface and ▪...

  • Page 15: Troubleshooting

    TROUBLE SHOOTING Error Cause & Solution ▪ Check the batteries. They may be in the wrong way or need replacing. Laser does not turn on ▪ Check the battery compartment for signs of damage. Ensure they are clean and not bent. ▪...

  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE ▪ This is a precision measuring instrument ▪ The operator should check the accuracy and should always be handled with care and of the instrument before precision levelling transported within the carry case provided. is attempted. Failure to do so may result in inaccurate measurements.

  • Page 17: Warranty

    WARRANTY The General 3DG comes with a 3 (three) year manufacturers warranty. AUSTRALIA NEW ZEALAND “Our goods come with guarantees that more information please visit cannot be excluded under the Australian consumerprotection.govt.nz Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 18: Customer Support

    CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527...

  • Page 19: Specifications

    SPECIFICATIONS Specifications General 3DG Product code 70070 Warranty 3 Years Accuracy ±1.5mm at 10m Operating range 60m (with optional detector) Levelling range ±4° Laser class 3 Green Battery life 5 hours Battery type 4x 1.5v AA Vertical lines Horizontal lines...
  • Page 20 www.s p o to n. c o m .a u...
