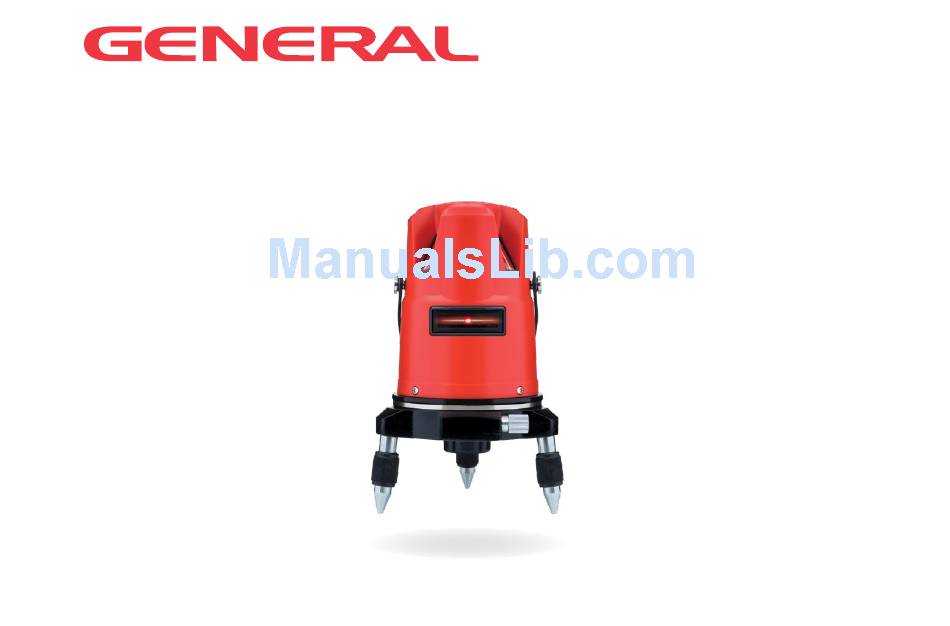

  • Page 1 X L 1 M U L T I - L I N E L A S E R I N S T R U C T I O N M A N U A L...
  • Page 2 SAFETY Read the following safety instructions before ▪ Tool service must be performed only by attempting to operate this product. qualified repair personnel. Repairs, service Keep these instructions in a safe place or store or maintenance performed by unqualified in the carry case for future reference. personnel will void the warranty.
  • Page 3 WARNING: DO NOT DISASSEMBLE ▪ Do not set up the tool at a position where THE LASER. There are no user serviceable the laser beam can cross any person at head height. parts inside. Disassembling the laser will ▪ Do not let children come in contact with the void all warranties on the product.
  • Page 4: Item Checklist

    ITEM CHECKLIST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. INCHES General XL1 Laser target Tripod spacer Carry case Laser glasses Alkaline batteries...
  • Page 5: Laser Overview

    LASER OVERVIEW Control panel and bubble vial Vertical laser port Vertical laser port Horizontal laser port Carry strap Power switch 360° protractor base Adjustable support legs 5/8” x 11 tripod thread...
  • Page 6 LASER CONTROL PANEL Horizontal line Vertical lines LED pulse mode indicator LED power indicator Pulse mode...
  • Page 7: Detector Overview

    DETECTOR OVERVIEW NOTE: The detector is an optional accessory which can be purchased from your retailer. LED direction indicator Bubble vial Laser sensor LED centre indicator LED direction indicator LED speaker indicator LED power indicator Sound on / off Power Speaker Bubble vial...
  • Page 8 USING YOUR LASER ▪ Place the laser on a level surface such as a bench or mount. POWER SUPPLY OPERATION ▪ The instrument is powered by three AA alkaline batteries. ▪ To turn the instrument on, turn the power switch to the “on” position. Self levelling BATTERY REPLACEMENT will commence and the horizontal beam ▪...
  • Page 9 USING YOUR DETECTOR ▪ Press the pulse mode button on the top of the instrument to enter into pulse mode. ▪ Switch the detector on by pressing the power button. The speaker will beep indicating the instrument is operating. ▪ Move the detector into the path of the laser beam.
  • Page 10 MOUNTING TO A CONSTRUCTION TRIPOD NOTE: Instructions are for a domed or NOTE: The construction tripod is flat construction tripod only. an optional accessory which can be purchased from your retailer. ▪ Stand the tripod on a level surface with legs spaced for stability. ▪...
  • Page 11: Troubleshooting

    TROUBLE SHOOTING Error Cause & Solution ▪ Check the batteries. They may be in the wrong way or need replacing. Laser does not turn on ▪ Check the battery compartment for signs of damage. Ensure they are clean and not bent. ▪...
  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE ▪ This is a precision measuring instrument ▪ The operator should check the accuracy and should always be handled with care and of the instrument before precision levelling transported within the carry case provided. is attempted. Failure to do so may result in inaccurate measurements.
  • Page 13: Warranty

    WARRANTY The General XL1 comes with a 3 (three) year manufacturers warranty. AUSTRALIA NEW ZEALAND “Our goods come with guarantees that more information please visit cannot be excluded under the Australian consumerprotection.govt.nz Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 14: Customer Support

    CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527...
  • Page 15: Specifications

    SPECIFICATIONS Specifications General XL1 Product code 70019 Warranty 3 Years Accuracy ±2mm at 10m Operating range 50m (with optional detector) Levelling range ±5° Laser class 2 Red Battery life 10 hours Battery type 3x 1.5v AA Vertical lines Horizontal lines...
  • Page 16 www.s p o to n. c o m .a u...
