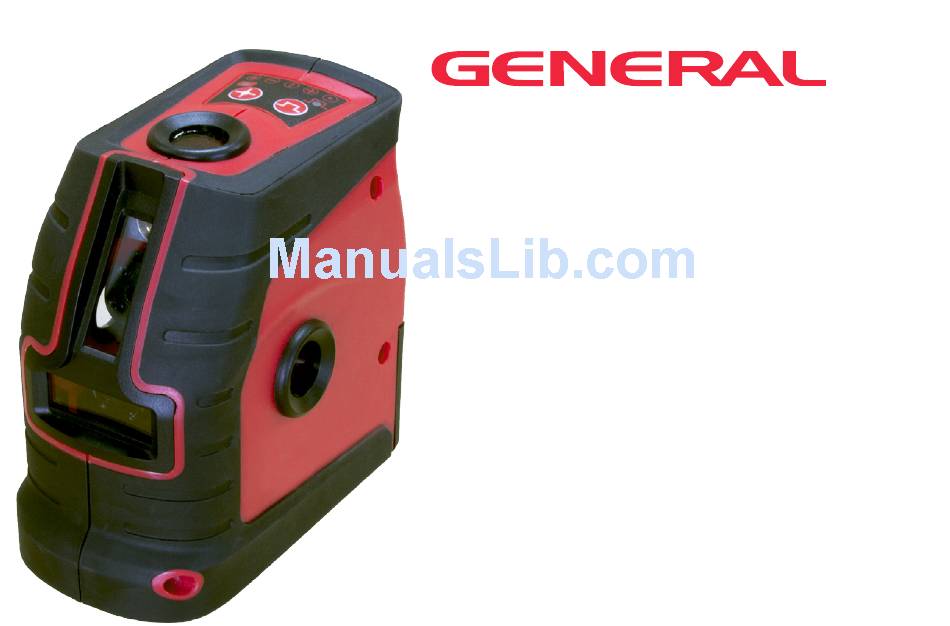

- Page 1 X5 Red Dot and Line Laser INSTRUCTION MANUAL...
- Page 2 SAFETY Please read this instruction manual before operating this product. Please store this instruction manual in the carry case for future reference. CAUTION: Class 2 Laser Product Do not stare directly into the laser beam from apertures. Do not disassemble the instrument or attempt to perform any internal servicing as this will void your warranty.
-
Page 3: Item Checklist
ITEM CHECKLIST Please ensure the following items are included with your laser. If anything is missing please contact your retailer. INCHES Laser target Magnetic base General X5 Carry bag Batteries... -
Page 4: Product Overview
PRODUCT OVERVIEW Control panel Vertical laser port (x1) Horizontal laser port (x1) Dot laser ports (x5) Power / locking switch... -
Page 5: Control Panel
CONTROL PANEL Pulse mode indicator Battery indicator Dot / line mode Pulse mode... - Page 6 DETECTOR CONTROL PANEL* Laser sensor Direction arrows Power indicator Coarse / fine mode indicator On/off button MODE Coarse / fine mode Sound on / off Bubble vial *The detector is an additional accessory which can be purchased from your retailer.
- Page 7 USING YOUR LASER Power Supply The X5 is powered by three AA alkaline batteries. Setting Up ‣ Select a place as close as practical to the work site. Ensure the location is clear of traffic. ‣ Place the laser on a level surface such as a bench or mount.
- Page 8 Using Your Detector* ‣ Press the pulse button on the control panel on top of the laser to enter into pulse mode. ‣ Switch the detector on and move it into the path of the laser beam. ‣ Hold the detector upright for horizontal beams. Rotate the detector 90° for vertical beams.
-
Page 9: Care And Maintenance
‣ Always slide the on/off lock to “off” when transporting the unit. ‣ Whenever possible, store the instrument in a dry, shady location. ‣ The X5 should be calibrated every 6 months, if ongoing accurate levelling is required or an impact has occurred. -
Page 10: Warranty
WARRANTY The General X5 comes with a 3 year manufacturers warranty. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 11: Specifications
SPECIFICATIONS Specifications General X5 Product code 70031 Warranty 3 Years Accuracy ±2mm at 10m Range 50m (detector) Levelling range ±4° Laser class 2 Red Battery life 10 hours Battery type 3x AA Vertical lines Horizontal lines Dots IP rating Weight (kg) 0.55... - Page 12 www.spoton.com.au...
