TREND AD05-24 Product Data

NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR
GENERAL

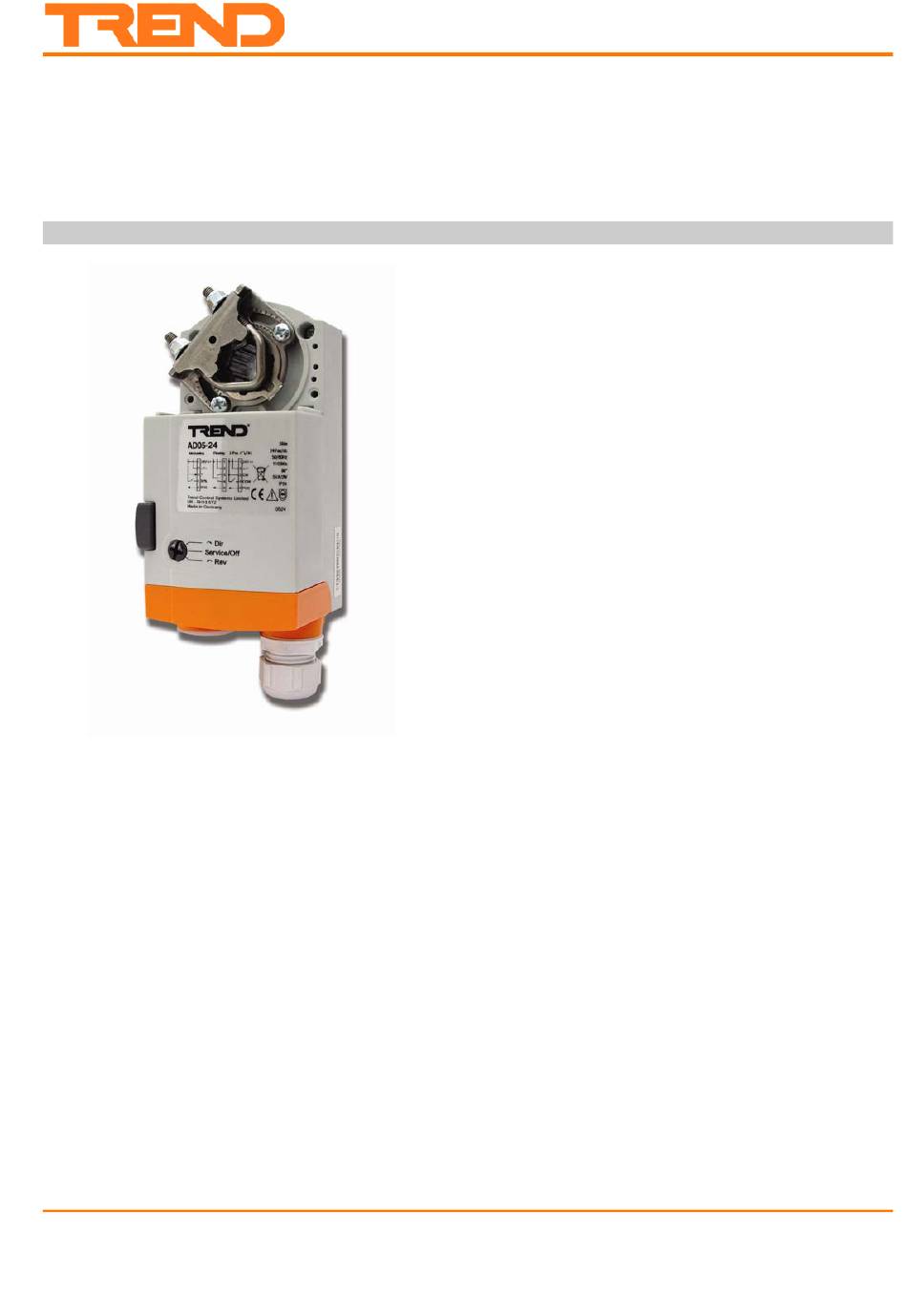

This non-spring return direct-coupled damper actuator
provides floating and two-position control for:
•
air dampers,
•
VAV units,
•
air handlers,
•
ventilation flaps,
•
louvers, and
•
reliable control for air damper applications with up to
2
1 m / (5 Nm) and 2 m
blades; air friction-dependent).
FEATURES
•
Declutch for manual adjustment
•
Adjustable mechanical end limits
•
Removable access cover for direct wiring
•
Mountable in any orientation
•
Rotation direction and service/OFF switch
AD05-24, -230, AD10-24, -230 Data Sheet TA200853 Issue 1/B 12/04/07
AD05-24, -230, AD10-24, -230
2
(10 Nm) (seal-less damper
FLOATING AND 2-POSITION CONTROL
SPECIFICATIONS
Supply voltage
AD05-24/AD10-24
AD05-230/AD10-230
Nominal voltage
AD05-24/AD10-24
AD05-230/AD10-230
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption
AD05-24/AD10-24
AD05-230
AD10-230
Ambient limits
Ambient operating limits
Ambient storage limits
Relative humidity
Safety
Protection standard
Protection class
Overvoltage category
Lifetime
Full strokes
Repositions
Mounting
Round damper shaft
Square damper shaft
Shaft length
Auxiliary switches
Optional accessory ACCA-AD0510-SW2
Torque rating
Runtime for 90°
AD05-24/AD10-24
AD05-24/AD10-24
AD05-230
AD10-230
Rotation stroke
Dimensions
Weight
Noise rating
PRODUCT DATA
24 Vac/dc -15%/+20%,
50/60 Hz
230 Vac -15%/+20%,
50/60 Hz
24 Vac/dc, 50/60 Hz
230 Vac, 50/60 Hz
5 VA / 2 W
22 VA / 2 W at 50 Hz
25 VA / 2 W at 60 Hz
22 VA / 2 W at 50 Hz
25 VA / 2 W at 60 Hz
-20...+60 °C (-5...+140 °F)
-30...+80 °C (-22...+176 °F)
5...95%, non-condensing
IP54
II as per EN 60730-1
II
60000
1.5 million
8...16 mm
6...13 mm; 45° steps
min. 41 mm
5 Nm / 10 Nm
90 sec (dc / 60 Hz ac)
110 sec (50 Hz ac)
65...110 s (60/50 Hz)
65...140 s (60/50 Hz)
95° ± 3°
see "Dimensions" on page 6
450 g
35 dB(A) max. at 1 m;
40 dB(A) for 230 Vac at
65 sec runtime
EN0B-0477GE51 R0407
