Important: Retain these instructions
these instructions shall be used by trained service personnel only
If the equipment is used in a manner not specifi ed by these instructions, the protection provided by the equipment may be impaired.
CoNtENtS
1
Before Startiing Confi guation . .......................................1
2
Installation - Confi guring ...............................................1
3
Connect to IQ4 ............................................................10
1
BeFoReStARtIngConFIguAtIon
Install the IQ41x
IQ41x Installation Instructions - Mounting
(TG201250)
Prepare Ethernet Network
Install DHCP Server
If the IP address settings (IP address, subnet mask, default
router, WINS and DNS servers' addresses) are to be supplied
by a DHCP server, ensure one is installed on the Ethernet
segment to which IQ41x is connected.
Install WINS Server
If host names are being used for IP addressing across a
router, a WINS server must be installed.
Install DNS Server
If email alarms are being sent, and the email server address
is identifi ed by internet domain name, a DNS server must be
installed.
2
ConFIguRAtIonPRoCeDuRe

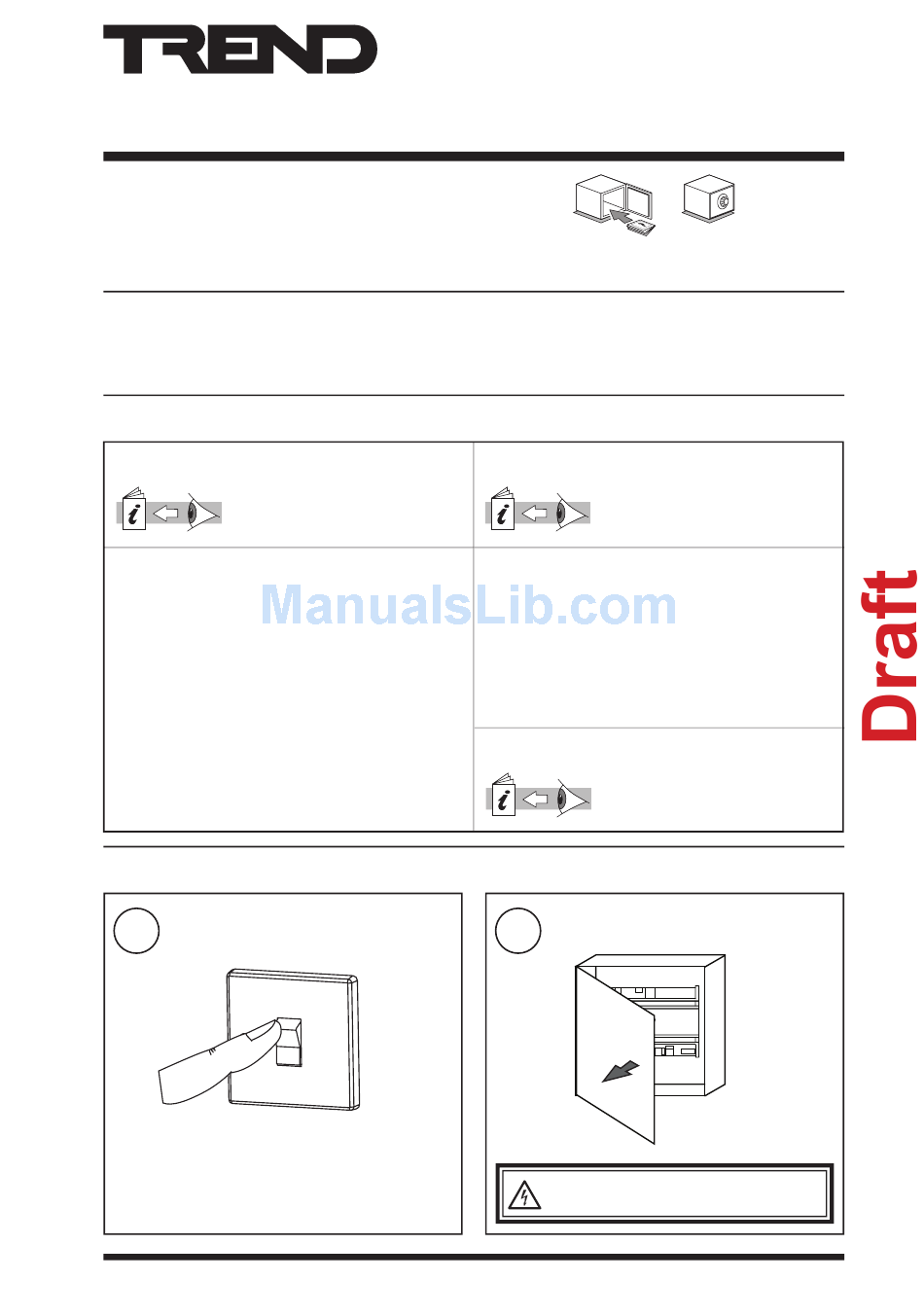

Switch off Power to the IQ41x
1
IQ41x Installation Instructions - Confi guring TG201251 Issue 5, 22-Aug-2014
InstallationInstructions-Confi guring
4
5
InstallSetonPC/Laptop
Additional Documentation Required
(if using Ethernet)
▪
▪
▪
▪
▪
Note: PDF copies are included with SET installation in the
following folder: C:\...\Trend Control Systems\Documentation
Read&AgreetoenduserLicenceAgreement
O
I
Series Controllers
Reset to Defaults . ........................................................12
Disposal . ......................................................................12
SET Manual (TE200147)
SET Manual (TE200147)
IP Tool Manual (TE200638)
IQTool Monitor Applet Manual (TE201298)
IQTool Addresser Applet Manual (TE201299)
IQ4 Confi guration Manual (TE201263)
IQ41x Installation Instructions - Mounting
(TG201250)
Access IQ41x
2
WARNING Opening the panel may expose
dangerous voltages.
IQ41x
1
Advertisement
Related Manuals for TREND IQ41 Series
Summary of Contents for TREND IQ41 Series
- Page 1 ▪ IQ4 Confi guration Manual (TE201263) Install WINS Server Note: PDF copies are included with SET installation in the If host names are being used for IP addressing across a following folder: C:\...\Trend Control Systems\Documentation router, a WINS server must be installed. Read&AgreetoenduserLicenceAgreement Install DNS Server If email alarms are being sent, and the email server address is identifi ed by internet domain name, a DNS server must be IQ41x Installation Instructions - Mounting installed.
- Page 2 IQ41x InstallationInstructions-Confi guring ConFIguRAtIonPRoCeDuRe (continued) Isolate I/o openRotatingCovers WARNING The connecting leads may be connected to supplies. Isolate before touching. Disconnect I/o PeelofftopSerialLabelandRetain Serial Q411B_V53440388 Number Location Addr S/No: Leave Power, Ethernet, Current loop Lan, USB, RS232, and Q411B_V53440388 MAC Addr 00:10:70:0D:1E:92 MS/TP connected (where appropriate). Part No: IQ411-1010U5000 Addr ConnectPC/Laptop Either: via Ethernet Hub/Switch Or: using direct connection Standard Ethernet cable Router (Cat 5e twisted pair) Hub / Switch RJ45...
- Page 3 Normal operation indication RX (yellow) OK (green) Fault indications OK (green) Check Ethernet (green) (yellow) Note: All LEDs illuminate for several seconds after switch on. ChecktrendCurrentLoopnetworkLeDs (IQ41x/LAN only) Normal operation indication Fault indications (yellow) (yellow) No TX signal from previous device on network – check device/wiring RX- TX+ TX- Signal not reaching RX on next device on network – check device/wiring...
- Page 4 IQ41x InstallationInstructions-Configuring ConFIguRAtIonPRoCeDuRe (continued) ConnecttoDataCollectorusingSet/IPtool SET Manual (TE200147) IP Tool Manual (TE200638) Find the IQ41x by its MAC address shown on serial label Q411B_V53440388 MAC Addr 00:10:70:0D:1E:92 Part No: IQ411-1010U5000 Addr SetupIPAddressingDetails (if using Ethernet) Use IP Tool – see step 13 – to choose either static (fixed) or IP Tool Manual (TE200638) dynamic (DHCP) addressing: Dynamic(DHCP)Addressing(default) When set to dynamic (DHCP) addressing the unit automatical Parameter Value obtains its IP addressing details (IP address, subnet mask, default router, WINS server and DNS server) from the Device Mode network’s DHCP (Dynamic Host Configuration Protocol)
- Page 5 Enter the host name of the remote device. The same list must be copied to other EINC type devices on If using static (fixed) addressing: the network. Enter the IP Address of the remote device, in the format: xxx.xxx.xxx.xxx Hint: Ticking the check box next to the Remote Trend Devices Subnet Mask The subnet mask for the remote device, in list retains the list in IP Tool, allowing it to be easily copied to the format: xxx.xxx.xxx.xxx other devices:...
- Page 6 Use SET’s IQTool Monitor Applet to disable autobaud and specify the baud rate. Module Parameter Range IQ Lan Autobaud 0 or 1. 0=Disabled network Baud Rate 1k2, 4k8, 9k6, 19k2, 38k4 SetupAdditionaltrendAddressing (if required) If the IQ41x is to provide a network connection for supervisors IQTool Monitor Applet Manual (TE201298) and tools setup the Supervisor Port and USB Engineering Port as required. Use SET’s IQTool Monitor Applet to set the Supervisor Port or USB Engineering Port as required. Module Parameter Range Address Supervisor port...
- Page 7 InstallationInstructions-Configuring IQ41x ConFIguRAtIonPRoCeDuRe (continued) CheckLAnoKLeD RX- TX+ TX- Normal operation indication LAnoK Lan built OK (green) Attempting to build Lan Fault indication Longer than 2 minutes indicates Lan/ every 15s internetwork cannot be built. ▪ Check baud settings of all devices on Current Loop – see step 6, and check all device connections. ▪ If still flashing, fit loop back. TX- TX+ RX- RX+ 86 87 230V If OFF, device is faulty. If ON, reconnect network and switch off all other devices on the network.
- Page 8 IQ41x InstallationInstructions-Confi guring InStALLAtIon-ConFIguRIng (continued) DownloadStrategy Confi gure the strategy using SET, and test using SET’s SET Manual (TE200147) simulation mode. IQ4 Confi guration Manual (TE201263) Use SET to download the strategy and backdrop fi le (if required). Note: An Ethernet connection is required to download both strategy and backdrop fi les.
- Page 9 RS232 Local supervisor Port, USB Local Engineering Port, or Ethernet port. Connection can also be made over the Trend network over Ethernet or the current loop. BackupStrategy Use SET to upload the strategy and compare it with the SET Manual (TE200147) strategy held by SET.
- Page 10 IQ41x InstallationInstructions-Confi guring CoNNECt to IQ4 Switch off openRotatingCovers Make Connection Connection to IQ4 can be made directly via the RS232 Local Supervisor Port, USB Local Engineering Port, or Ethernet Port. Connection can also be made over a network (Ethernet). Connect Directly to Controller PC via Ethernet Port PC via Local Engineering Port (USB) Standard Ethernet cable (Cat 5e twisted pair) RJ45 max 100 m (109 yds) RJ45 Micro B USB connector USB cable Connection use Notes Connection use Notes IPTool IPTool ü Requires vCNC ü ü Web Browser Web Browser ü...
- Page 11 IQ4. Note: To make a connection with SET, a supervisor or display connect to a vCNC in a Trend device on the same Ethernet Trend network. Note: If connecting with IP Tool, the PC should be on the same Ethernet segment as the IQ4.
- Page 12 Division of Honeywell Technologies Sàrl, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. T rend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes. trendControlSystemsLimited Albery House, Springfi eld Road, Horsham, West Sussex, RH12 2PQ, UK. Tel:+44 (0)1403 211888 Fax:+44 (0)1403 241608 www.trendcontrols.com trendControlSystemsuSA 6670 185th Avenue NE, Redmond, Washington 98052, USA. Tel:(425) 869-3900 Fax:(425) 869-8445 www.trend-americas.com IQ41x Installation Instructions - Confi guring TG201251 Issue 5, 22-Aug-2014...
