Important: Retain these instructions
These instructions shall be used by trained service personnel only
If the equipment is used in a manner not specified by these instructions, the protection provided by the equipment may be impaired.
CONTeNTs
1
Unpacking .....................................................................1
2
Storing ...........................................................................1
3
Installation .....................................................................1
3.1
Installation - Mounting ...................................................1
1
UNpaCkINg
2
sTORINg
3
INsTallaTION
3.1

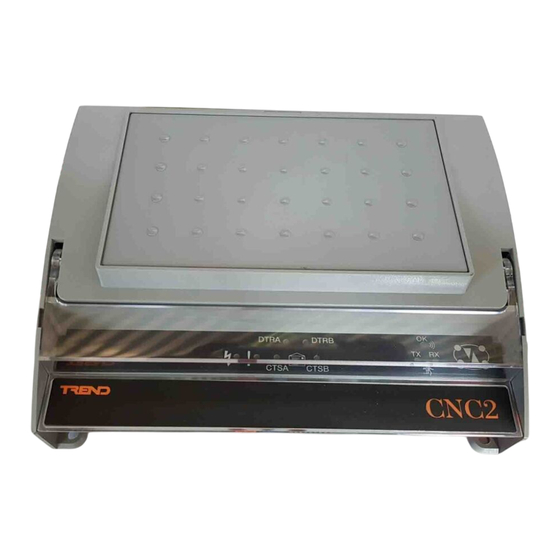

Installation - Mounting
It is recommended that the installation should comply with the local electrical safety installation practices (e.g. HSE
Memorandum of Guidance on Electricity at Work Regulations 1989, USA National Electric Code).
Dimensions
1
DTRA
DTRB
CTSA
CTSB
230 mm
NBOX(B)/CNC2 Communications Node Controller Installation Instructions TG200265 Issue 2 , 20-Sep-2012
Communications Node Controller
+50 °C
-10 °C
H O
OK
TX
RX
70 mm
NBOX(B)/CNC2
3.2
Installation - Configuring ...............................................6
4
Disposal .........................................................................8
../24 only
../230 only
0
95 %RH
2
DTRA
100 mm
Installation
Instructions,
TG200265
50 mm
OK
DTRB
TX
RX
CTSA
CTSB
1
Advertisement
Table of Contents
Related Manuals for TREND NBOX(B)/CNC2
Summary of Contents for TREND NBOX(B)/CNC2

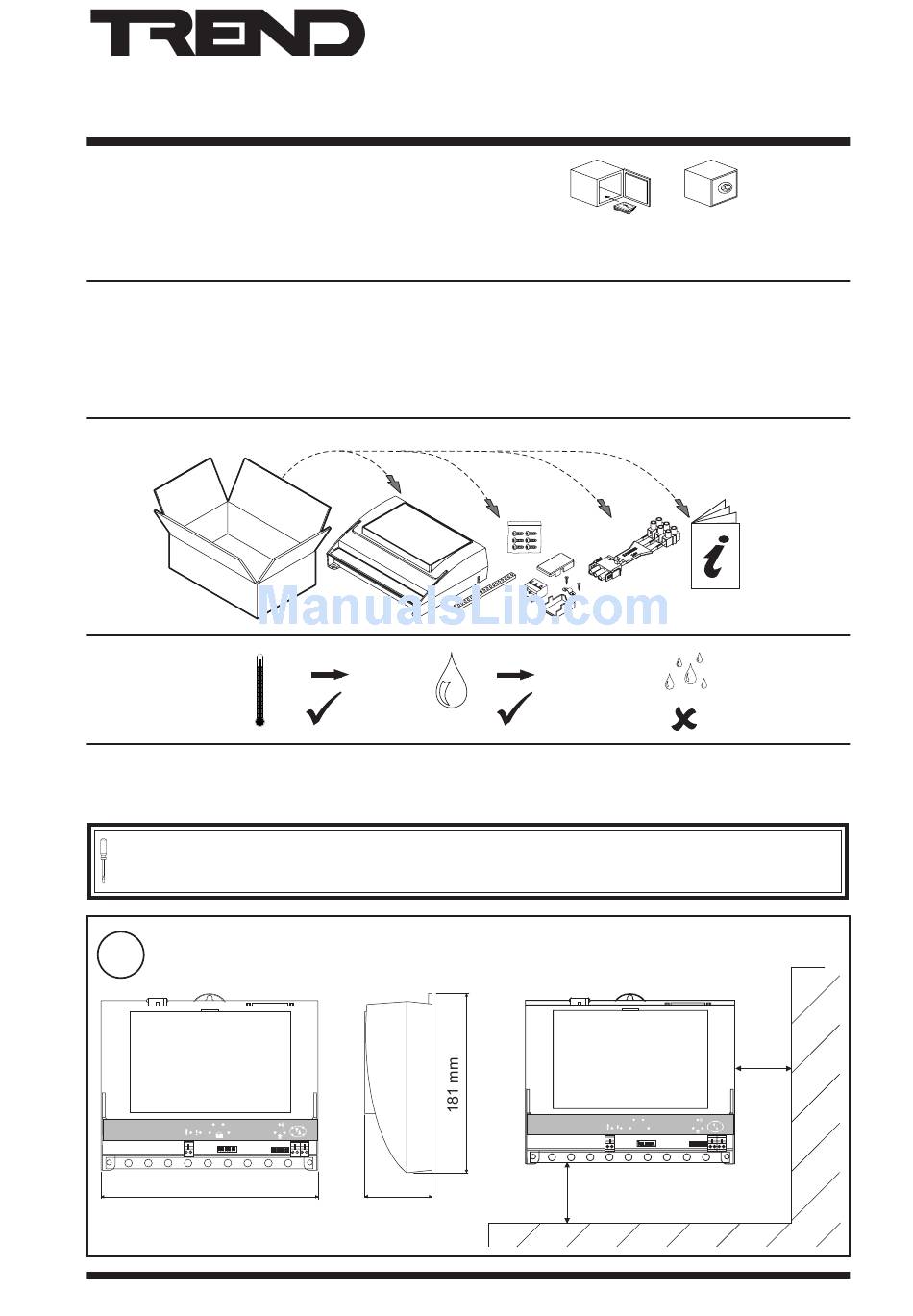

- Page 1 Memorandum of Guidance on Electricity at Work Regulations 1989, USA National Electric Code). Dimensions 50 mm DTRA DTRB DTRA DTRB CTSA CTSB CTSA CTSB 230 mm 70 mm 100 mm NBOX(B)/CNC2 Communications Node Controller Installation Instructions TG200265 Issue 2 , 20-Sep-2012...
