1) Introduction
The Appello tone and speech annunciation
sounder has three different styles in AC and DC.
·
A121APPX & MV121
·
AL121APPX Sounder-Beacon Combination
Sounder-Beacon Combination
available as either a high output LED or
Xenon strobe.
These Sounder units share a common set of
functions:-
·
4 stages, each stage can record up to 30
seconds of CD quality audio.
·
Facility to record via an on board microphone
or a line in input.
·
The recorded message can be played back
proceeded either with or without the choice
of one of forty five tones.
The Beacon functions are either:-
·
Xenon Strobe - 1Hz flash rate
·
LED - Either Steady or 2Hz blink rate
2) Operating and Marking
All units have the
requirements and limitations.
Unit Type No. Voltage Range
Sounder only outputs
A121APPX DC 24Vdc 14-30Vdc
& MV121 DC
Max Current 1.85A @ 30Vdc
A121APPX AC 115Vac 90-260Vac 542mA
& MV121 AC 230Vac 90-260Vac 517mA
Max Current 668mA @ 90Vac
AL121APPX combined unit - Add selected
sounder & beacon currents to calculate total
current required.
Beacon only outputs
LED Beacon DC 24Vdc 10-30Vdc
Max Current 166mA @ 30Vdc
LED Beacon AC 115Vac 90-260Vac 60mA
230Vac 90-260Vac 35mA
Max Current 60mA @ 90Vac
Xenon Beacon DC 12Vdc 10-14Vdc
24Vdc 20-28Vdc
Xenon Beacon AC 115Vac +/-10%Vac 100mA
230Vac +/-10%Vac
Operating Temp: -20 to +55°C
All units IP Rating: Type 4 / 4X / 3R / 13 , IP66
MV121 additional IP Rating: IP67
European Safety Systems Ltd.
Document No. D166-00-001-IS_Issue_2
Sounder
units are
following operating
Current
1.51A
157mA
500mA
250mA
50mA
Impress House, Mansell Road, Acton, London W3 7QH
01-05-12
Sheet 1 of 10
INSTRUCTION MANUAL
A121APPX, AL121APPX & MV121 APPELLO
Alarm Tone and Voice Annunciation Sounder
Marking:

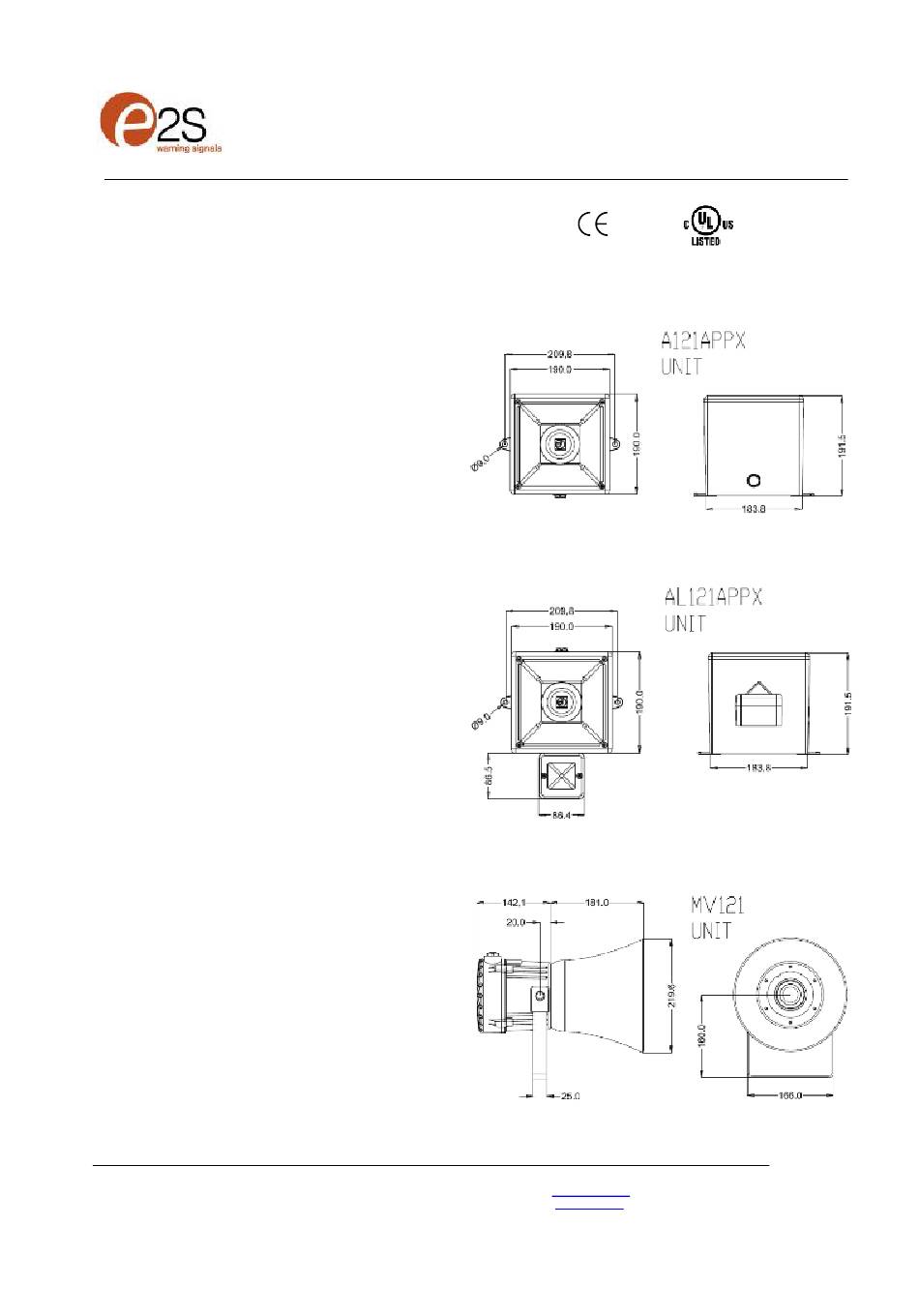

3) Installation & Wiring Requirements
A121APPX
AL121APPX
MV121
