E2S APPELLO A105NAX Instruction Manual

1) Introduction
The Appello tone and speech annunciation
sounder has three different styles in AC and DC.
•
A105NAX Sounder
•
AL105NAXH High Output LED
Sounder-Beacon Combination unit
•
AL105NAXX Xenon Strobe
Sounder-Beacon Combination unit
These Sounder units share a common set of
functions:-
•
4 stages, each stage can record up to 30
seconds of CD quality audio.
•
Facility to record via an on board microphone
or a line in input.
•
The recorded message can be played back
proceeded either with or without the choice
of one of forty five tones.
The Beacon functions are either:-
•
Xenon Strobe - 1Hz flash rate
•
LED - Either Steady or 2Hz blink rate
2) Operating and Marking
All units have the
requirements and limitations.
Unit Type No. Voltage
Sounder only outputs
A105NAX DC 24Vdc
Max Current 256mA @ 30Vdc
A105NAX AC 115Vac 90-260Vac 112mA
230Vac 90-260Vac 124mA
Max Current 127mA @ 260Vac
AL105NAXH / AL105NAXX combined units - Add
selected sounder & beacon currents to calculate
total current required.
Beacon only outputs
AL105NAXH DC 24Vdc
Max Current 166mA @ 30Vdc
AL105NAXH AC 115Vac 90-260Vac
230Vac 90-260Vac
Max Current 60mA @ 90Vac
AL105NAXX DC 12Vdc
24Vdc
AL105NAXX AC 115Vac +/-10%Vac
230Vac +/-10%Vac
Operating Temp: -20 to +55C
IP Rating: Type 4 / 4X / 3R / 13 , IP66
European Safety Systems Ltd.
Document No. D165-00-001-IS_Issue_4
following operating
Range Current
10-30Vdc 256mA
10-30Vdc 157mA
60mA
35mA
10-14Vdc 500mA
20-28Vdc 250mA
100mA
50mA
Impress House, Mansell Road, Acton, London W3 7QH
16-11-22
Sheet 1 of 10
INSTRUCTION MANUAL
A105NAX, AL105NAXH & AL105NAXX APPELLO
Alarm Tone and Voice Annunciation Sounder
Marking:

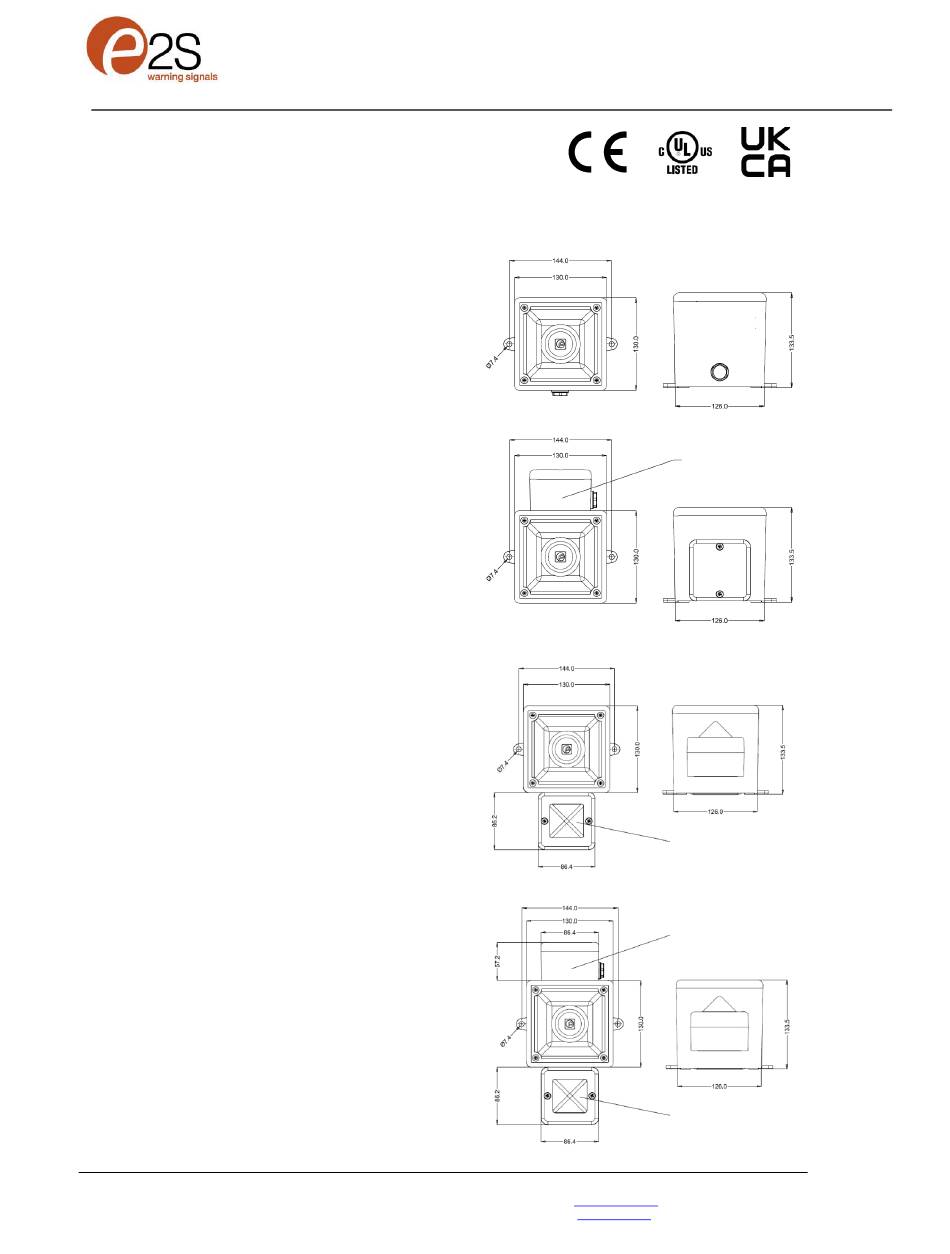

3) Installation & Wiring Requirements
A105NAX
AL105NAXH / AL105NAXX
sales@e2s.com
www.e2s.com
A105NAX
DC UNIT
A105NAX
AC UNIT
AL105NAXH / AL105NAXX
DC UNITS
LED (H) / XENON (X)
BEACON OPTION
AL105NAXH / AL105NAXX
AC UNITS
LED (H) / XENON (X)
BEACON OPTION
