1)
Introduction

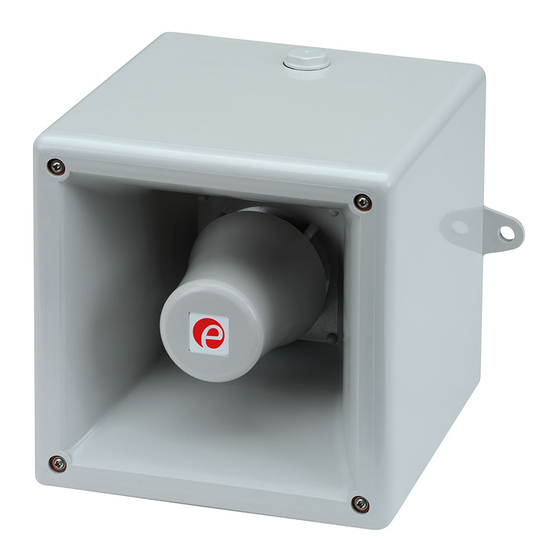

The Appello tone and speech annunciation
sounder has three different styles in AC and DC.
•
A121APPX & MV121
•
AL121APPX Sounder-Beacon Combination
Sounder-Beacon
Combination
available as either a high output LED or
Xenon strobe.
These Sounder units share a common set of
functions:-
•
4 stages, each stage can record up to 30
seconds of CD quality audio.
•
Facility to record via an on board microphone
or a line in input.
•
The recorded message can be played back
proceeded either with or without the choice
of one of forty five tones.
The Beacon functions are either:-
•
Xenon Strobe - 1Hz flash rate
•
LED - Either Steady or 2Hz blink rate
2)
Operating and Marking
All
units
have
the
following
requirements and limitations.
Unit Type No.
Voltage
Range
Sounder only outputs
A121APPX DC
24Vdc
14-30Vdc
& MV121 DC
Max Current 1.85A @ 30Vdc
A121APPX AC
115Vac 90-260Vac 542mA
& MV121 AC
230Vac 90-260Vac 517mA
Max Current 668mA @ 90Vac
AL121APPX combined unit - Add selected
sounder & beacon currents to calculate total
current required.
Beacon only outputs
LED Beacon DC 24Vdc
10-30Vdc
Max Current 166mA @ 30Vdc
LED Beacon AC 115Vac 90-260Vac 60mA
230Vac 90-260Vac 35mA
Max Current 60mA @ 90Vac
Xenon Beacon DC 12Vdc 10-14Vdc
24Vdc 20-28Vdc
Xenon Beacon AC 115Vac +/-10%Vac 100mA
230Vac +/-10%Vac
Operating Temp: -20 to +55°C
All units IP Rating: Type 4 / 4X / 3R / 13 , IP66
MV121
additional IP Rating: IP67
26 Stadium Business Park, Ballycoolin Rd. Dublin 11
Tel. +353 (0) 1 8853008 www.comsec.ie info@comsec.ie
Comsec Protection Systems
Sounder
units
are
operating
Current
1.51A
157mA
500mA
250mA
50mA

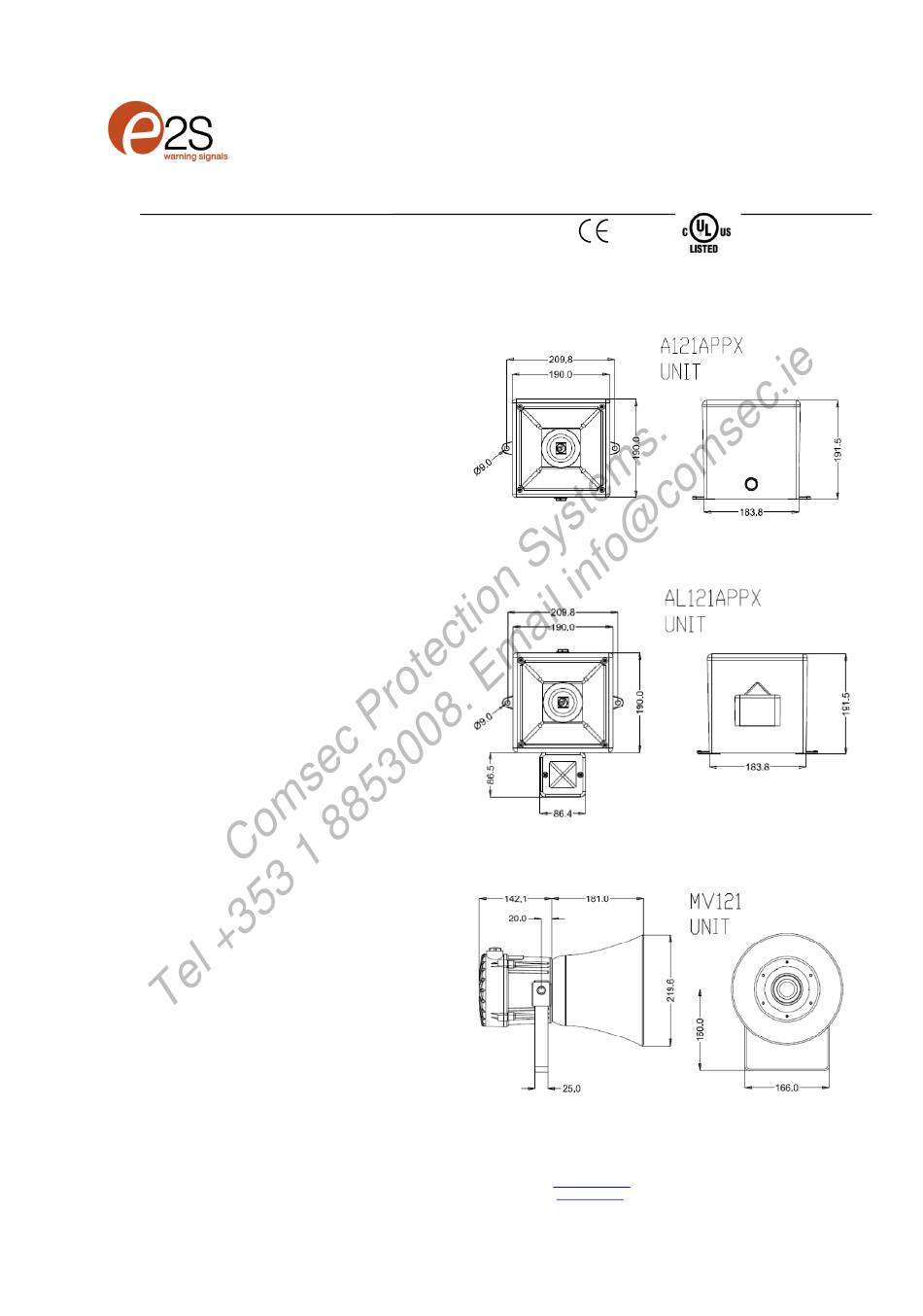

INSTRUCTION MANUAL
A121APPX, AL121APPX & MV121 APPELLO
Alarm Tone and Voice Annunciation Sounder
Marking:
3)
Installation & Wiring Requirements
A121APPX
AL121APPX
MV121
Advertisement
Related Manuals for E2S Appello A121APPX
Summary of Contents for E2S Appello A121APPX
- Page 1 Comsec Protection Systems INSTRUCTION MANUAL A121APPX, AL121APPX & MV121 APPELLO Alarm Tone and Voice Annunciation Sounder Introduction The Appello tone and speech annunciation Marking: sounder has three different styles in AC and DC. • A121APPX & MV121 Sounder • AL121APPX Sounder-Beacon Combination Installation &...
- Page 2 Comsec Protection Systems Always de-energize unit before removing cover. Unit Set-up and Recording The installation of the units must be in The unit will need to be configured to suit the end accordance with any local codes that may apply user.
- Page 3 Comsec Protection Systems DC Units Second, Third and Fourth Stage AC Units Second, Third and Fourth Stage Selection Selection The Appello unit uses –ve switching to change The Appello unit uses Live switching to change the tone to the second, third and fourth stages. the tone to the second, third and fourth stages.
- Page 4 Comsec Protection Systems INSTRUCTION MANUAL A121APPX, AL121APPX & MV121 APPELLO Alarm Tone and Voice Annunciation Sounder S4 - Tones S2 - Set-up AC Power & Alarm Stage Terminal Function L.E.D 's Jumper DC Power & Alarm Stage Terminal On board Alarm Tone &...
- Page 5 Comsec Protection Systems Quick ref - Switch ‘S2’ Dip Switch Function Settings Switch OFF Position ON Position Function Function Record Mode Playback Mode Switch 2 On & Switch 3 On = Alarm Stage 1 Stage selection switch Switch 2 Off & Switch 3 On = Alarm Stage 2 Switch 2 On &...
- Page 6 Comsec Protection Systems Quick Ref - Recording Mode (Stage 1 illustrated) For Stage 1: Set Switch ‘S2’ positions 2,3 & 4 to 'ON' Alternatively for : For Stage 2: Set Switch ‘S2’ positions 3 & 4 to 'ON' For Stage 3: Set Switch ‘S2’...
- Page 7 Comsec Protection Systems Quick Ref - Erase Single stage Mode (Stage 1 illustrated) For Stage 1: Set Switch ‘S2’ positions 2,3 & 7 to 'ON' Alternatively for : For Stage 2: Set Switch ‘S2’ positions 3 & 7 to 'ON' For Stage 3: Set Switch ‘S2’...
- Page 8 Comsec Protection Systems Quick Ref - Mass Erase Mode (Erases All Stages) Set Switch ‘S2’ position 7 to 'ON' Set jumper ‘ME’ to ON position (centre and bottom pin connected) Switch on power or Press reset button Press action button: Erase will begin - - - - erase complete Reset Jumper...
- Page 9 Comsec Protection Systems Quick Ref - Synchronising Two Sounders (All stages) Connect Synch cable to Master and Slave PCB Set 1 off Units as Master and 1 off Unit as Slave Set jumper to SY on Set jumper MA on Master unit to master position (on) Set jumper MA on Slave...
- Page 10 Comsec Protection Systems Table 1: Tone selection table Table 1: Tone selection table Table 1: Tone selection table Table 1: Tone selection table Table 1: Tone selection table Table 1: Tone selection table Switch Switch Stage 2 Stage 2 Stage 3 Stage 4 Stage 1 Stage 1...
