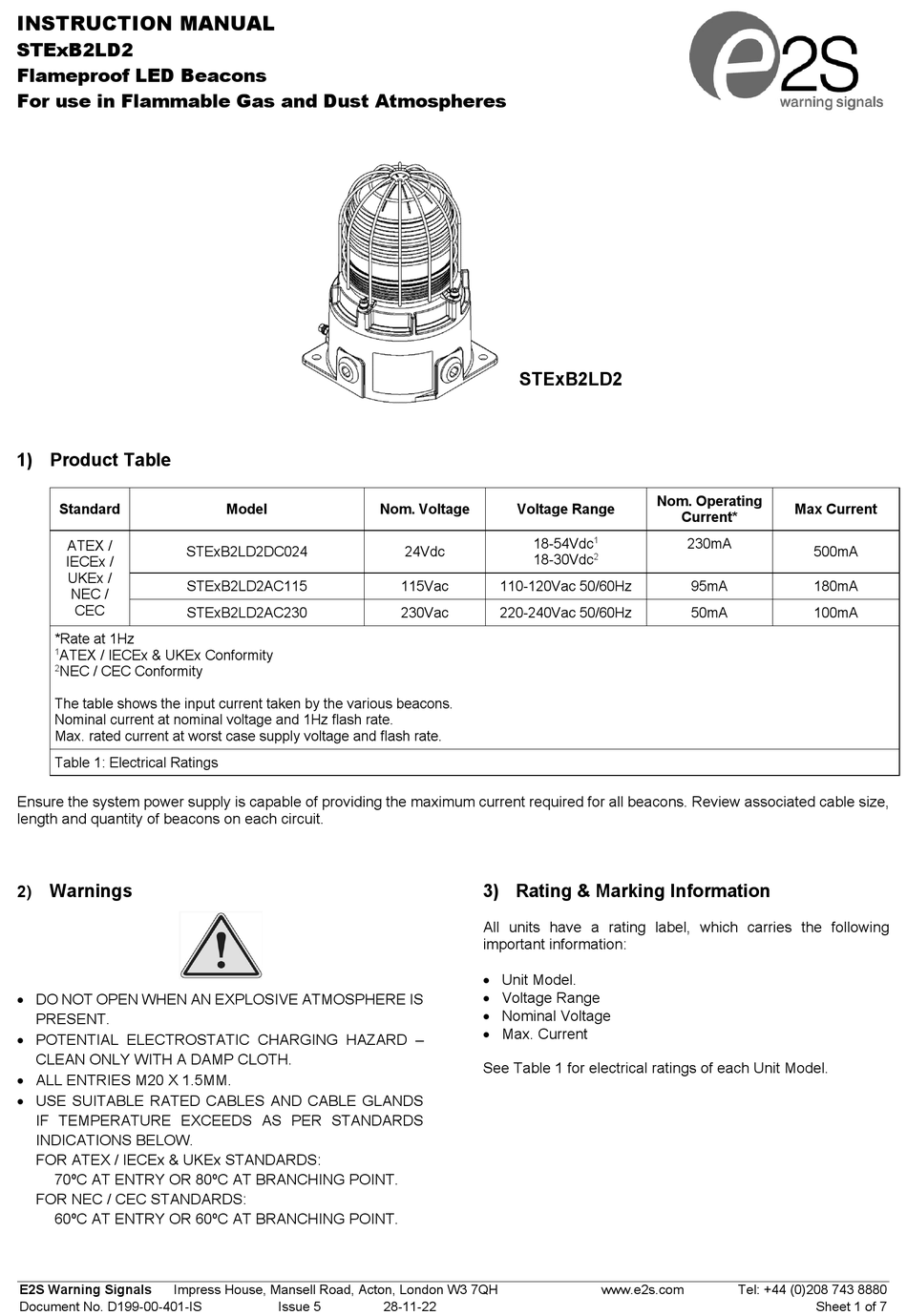

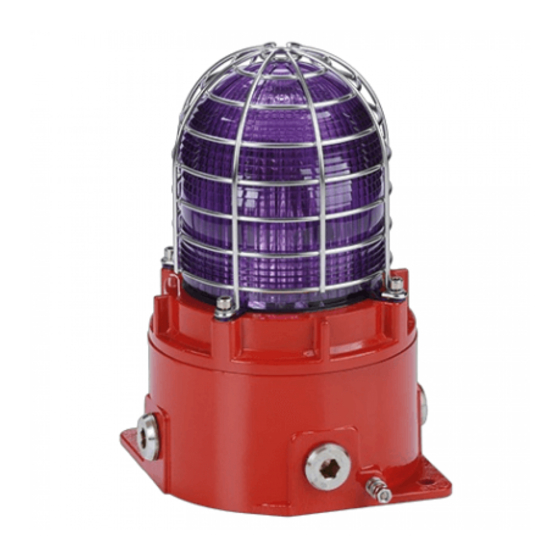

INSTRUCTION MANUAL
STExB2LD2
Flameproof LED Beacons
For use in Flammable Gas and Dust Atmospheres
1) Product Table
Standard
ATEX /
STExB2LD2DC024
IECEx /
UKEx /
STExB2LD2AC115
NEC /
CEC
STExB2LD2AC230
*Rate at 1Hz
1
ATEX / IECEx & UKEx Conformity
2
NEC / CEC Conformity
The table shows the input current taken by the various beacons.
Nominal current at nominal voltage and 1Hz flash rate.
Max. rated current at worst case supply voltage and flash rate.
Table 1: Electrical Ratings
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size,
length and quantity of beacons on each circuit.
Warnings
2)
 DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT.
 POTENTIAL ELECTROSTATIC CHARGING HAZARD –
CLEAN ONLY WITH A DAMP CLOTH.
 ALL ENTRIES M20 X 1.5MM.
 USE SUITABLE RATED CABLES AND CABLE GLANDS
IF TEMPERATURE EXCEEDS AS PER STANDARDS
INDICATIONS BELOW.
FOR ATEX / IECEx & UKEx STANDARDS:
70ºC AT ENTRY OR 80ºC AT BRANCHING POINT.
FOR NEC / CEC STANDARDS:
60ºC AT ENTRY OR 60ºC AT BRANCHING POINT.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-401-IS
Model
Nom. Voltage
Issue 5
28-11-22
STExB2LD2
Voltage Range
18-54Vdc
24Vdc
18-30Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
3) Rating & Marking Information
All units have a rating label, which carries the following
important information:
 Unit Model.
 Voltage Range
 Nominal Voltage
 Max. Current
See Table 1 for electrical ratings of each Unit Model.
Nom. Operating
Current*
1
230mA
2
95mA
50mA
www.e2s.com
Tel: +44 (0)208 743 8880
Max Current
500mA
180mA
100mA
Sheet 1 of 7
