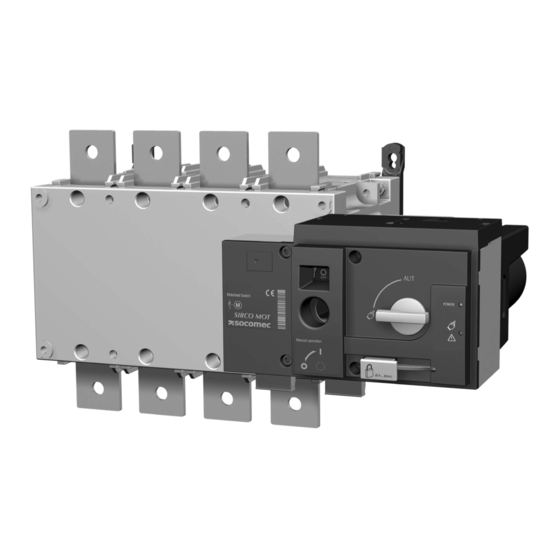

socomec SIRCO MOT PV Instruction Manual

Motorised photovoltaic switches
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

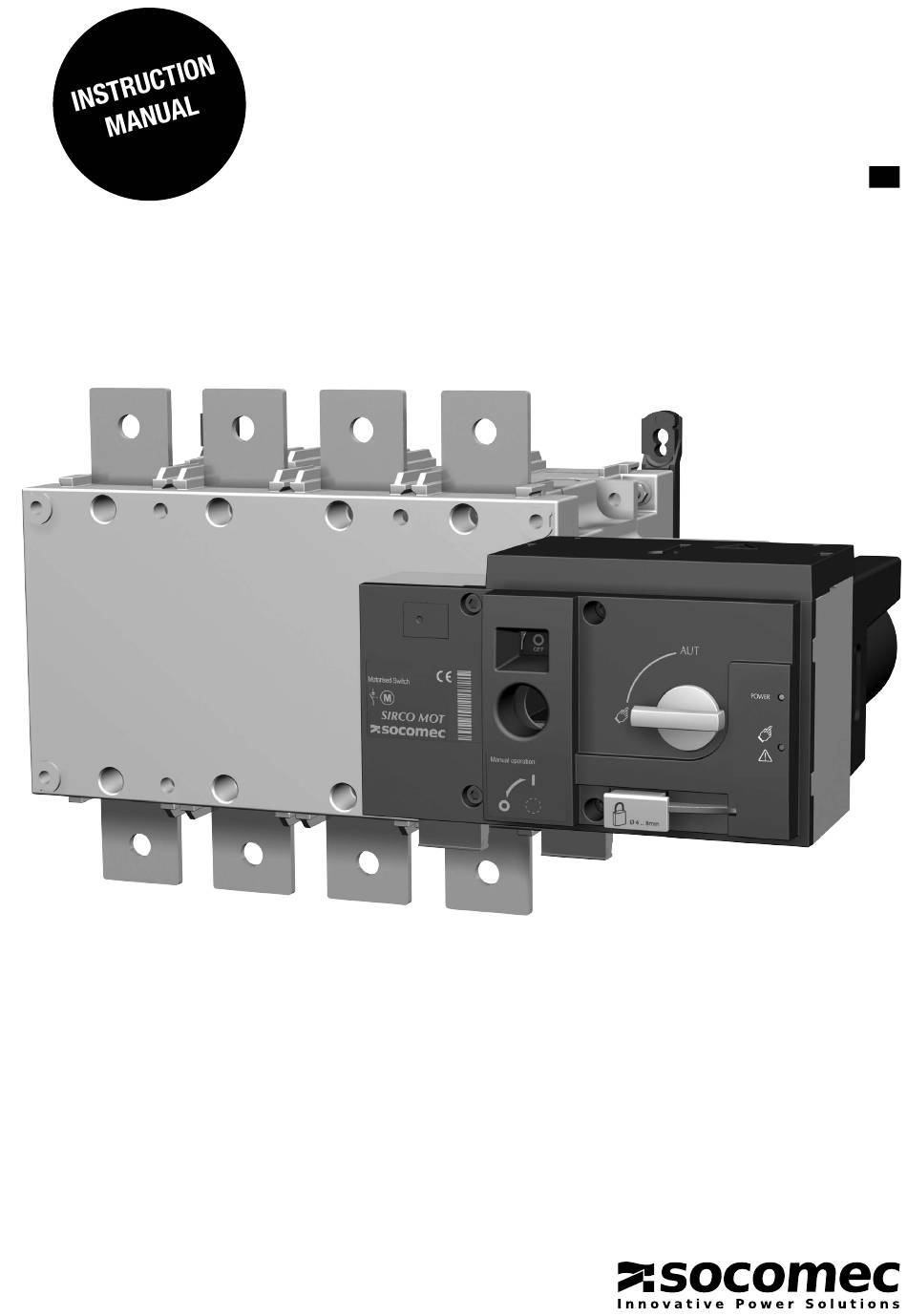

SIRCO MOT PV
Motorised photovoltaic switches
EN
www.socomec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIRCO MOT PV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for socomec SIRCO MOT PV

Summary of Contents for socomec SIRCO MOT PV

  • Page 1 SIRCO MOT PV Motorised photovoltaic switches www.socomec.com...

  • Page 2: Table Of Contents

    ............. .8 2.3.4. Volume and shipping weights by reference sIRCO MOt PV .
  • Page 3 .............30 www.socomec.com To download, brochures, catalogues and technical manuals. This manual is available for download in French and English. SIRCO MOT PV - 543 544 B - SOCOMEC...
  • Page 4 SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 5: General Safety Instructions

    - IS 13947-3 - EN 60947-3 - NBN EN 60947-3 - BS EN 60947-3 The information provided in this instruction manual is subject to change without notice, remains for general information only and is non-contractual. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 6: General Overview

    5. Auxiliary power supply : 230Vac (208 – 277Vac ± 20%) 6. Motorized Control Unit 7. Motor housing 8. Green LED Indication : Power (SIRCO MOT PV control voltage input within specified range). 9. Auto / Manual mode selector switch 10. Emergency manual operation “Direct Handle”...

  • Page 7: Product Identification

    Applicable standards and Terminal incoming and outgoing wiring details. 2. Complete SIRCO MOT PV product current rating and reference number label (serial number, barcode and CE marking) 3. Emergency manual operation direction of rotation indication label 4. Auxiliary power supply contacts identification label 5.

  • Page 8: Environmental

    60 °C … 70 °C * Simplified derating method: Ithu ≤ Ith x Kf * A more precise calculation may be done for specific applications. Should this be required please contact SOCOMEC. 2.3.2.2. Hygrometry • 80% humidity without condensation at 55°C •...

  • Page 9: Volume And Shipping Weights By Reference Sirco Mot Pv

    3 boxes may be stocked vertically ≥ 1000 A : a maximum of 1 box may be stocked vertically ≤ 800 A ≥ 1000 A 2.3.4. Volumeandshippingweightsbyreference sIRCO MOt PV Weight (kg) N° of Reference Volume (cm) Frame Size...

  • Page 10: Emc Standard

    61000-4-5 2KV (A) Surge differential 61000-4-5 1KV (B) 2.4. SIRCO mOT PV accessories aVailable 2.4.1. Customer fitted accessory terminal shrouds (250 to 800 a) control Voltage transformer Incoming and outgoing protection against direct contact with Allows a standard 230 V AC device to be supplied with the connection terminals or parts.

  • Page 11: Installation

    (when using the sirCo mot PV emergency handle). Terminal Overalldimensions Switchmounting connection shrouds Rating(A) a 4p. f 4p. J 4p. m 4p. X 4p. 250/B4 134.5 400/B4 134.5 400/B5 37.5 630/B5 37.5 800/B5 37.5 All dimensions in mm. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 12: Dimensions: Frame B6 & B7 (1000 A To 2000 A)

    (when using the sirCo mot PV emergency handle). Overall switch Terminalshrouds body connection dimensions mounting Rating(A) f 4p. J 4p. m 4p. 1000/B6 60.5 66.5 1250/B6 66.5 1600/B7 67.5 2000/B7 67.5 Toutes les dimensions sont en mm. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 13: Dimensions : Frame B8 (3200 A)

    6. Emergency removable handle to consider the space required for manual operation and wiring. CautIOn (when using the sirCo mot PV emergency handle). Overalldimensions Switchmounting Rating(A) a 4p. m 4p. 3200/B8 Toutes les dimensions sont en mm. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 14: Copper Bar Connection For Sirco Mot Pv 3200 A

    3.2. Copper bar connection for SIRCO MOT PV 3200 A 3.3. Mounting orientation 250 A to 800 A Recommended Not Allowed 1000 A to 3200 A Recommended Not Allowed CautIOn always install the product on a flat and rigid surface. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 15: Assembly Of Customer Mounted Accessories

    3.4. Assembly of customer mounted accessories never handle any customer mounted accessories while there may be the risk of dangeR voltage being or becoming present. 3.4.1. Connection kits for sIRCO MOt PV 3200 a Maximal 708 lb-in 80 Nm Version*...

  • Page 16: Terminal Shrouds

    3.4.2. terminal shrouds Available from 250 A to 800 A. Upstream or downstream mounting. 250a/b4 to 800a/b5. Notcompatiblewithbridgingbars and phasebarriers! 3.4.3. terminal screens 250a/b4 and 400a/b4 SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 17: Inter-Phase Barriers

    400a/b5 to 2000a/b7 3200a/b8 3.4.4. Inter-phase barriers SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 18: Raised Mounting Spacers

    DC power supply available in 12Vdc as well as 24Vdc intended to allow a standard SIRCO MOT PV (250-1600A) to be powered from an appropriate DC supply. (Usually the battery of the backup generator source). This converter is to be positioned as close as possible to the DC power source. 301 302 301 302 SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 19: Factory Fitted Accessory

    Optionally and when including the option “padlocking in 2 positions” key locking will be in positions I, 0. 250 Ato800 A 1000 Ato3200 A 3.5.2. additional auxiliary contacts ntended for pre breaking and signaling of positions I. Up to 2 additional NO/NC auxiliary contacts can be fitted. Pos I Pos I Pos I 250 Ato800 A(Optional) 1000 Ato2000 A(Optional) 3200 A(Standard) SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 20: Connections

    20/26 20/26 40/45 40/45 40/45 40/45 40/45 40/45 40/45 40/45 4.2. Connection configuration 19pV 4025 19pV 4040 19pV 4038 19pV 4063 19pV 4080 Use only with 400A/B4 19pV 4100 19pV 4120 19pV 4160 19pV 4200 SIRCO MOT PV - 543 544 B - SOCOMEC...
  • Page 21 CHARGE / LOAD LOAD CHARGE / LOAD CHARGE / LOAD CHARGE / Ie≤400Aper circuit ie = 800a CHARGE / OnLy 19PV 4039 LOAD LOAD CHARGE / LOAD CHARGE / LOAD CHARGE / CHARGE / LOAD LOAD SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 22: Cable Or Bar Connections

    Verify that the auxiliary power supply feeding terminals 301 and 302 are within CautIOn the limits of 208VaC -> 277VaC ±20% (166-332VaC). Do not handle any control or power cables connected to the sirCo mot PV dangeR when voltage may be present. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 23: Sirco Mot Pv Input And Output Contacts

    Common control terminal for 312 - 316 SIRCO MOT PV (Specific Voltage Supply) do not connect terminals 312 to 317 to any power supply. these order inputs are attentIOn powered through terminal 317 and external dry contacts OnLy. SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 24: Operating Modes

    • Inhibits insertion of the emergency handle. • Allows padlocking when in O Position. POs 0 MODE Padlocking in position I - O is possible when the optional function is included in the SIRCO MOT PV. (Refer to product catalogue) SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 25: Manual Operation

    5.1. Manual operation 5.1.1. emergency manual operation The SIRCO MOT PV can be manually operated whilst retaining the electrical characteristics and performance of the power switching function. This function is usually used in case of emergencies or during maintenance. To operate the SIRCO MOT PV manually ensure that no live parts are accessible, turn the front selector switch into the manual position and insert the handle into the emergency handle shaft location hole provided.

  • Page 26: Electrical Operation

    75A429 630A Ue 1000V Common supply for inputs 312 to 316 75A430 I800A Ue 1000V 75A431 1000A Ue 1000V 75A432 1250A Ue 1000V 75A433 1600A Ue 1000V 75A434 2000A Ue 1000V 75A436 3200A Ue 1000V SIRCO MOT PV - 543 544 B - SOCOMEC...
  • Page 27 (NOTE: 313 – 317 closed / Force SIRCO MOT PV to OFF Position, takes priority over all other orders no matter of the control logic used.) Impulselogic(standardconfiguration): Impulse logic The SIRCO MOT PV is driven to a stable position (I – order I O) after receiving an impulse order. order 0 •...

  • Page 28: Fixed Outputs - Dry Contacts

    Locked mode active when not in manual mode External Fault -> User input Unexpected current flowing through the motor when idle Sampling rate for the above is every 10 ms Exception: motor detection sampling rate is every 5 min SIRCO MOT PV - 543 544 B - SOCOMEC...
  • Page 29 Startup duration 200ms Rated Voltage / Switching Voltage 250VAC Rated Current Surge protection Vin_sg: 4.8kV (1.2/50µs surge) ESD withstand voltage (Contact/air): 2/4kV Dielectric Strength contact/parts: 4.8kVAC (Reinforced Insulation) Insulation: 4.8KVAC Output Terminal: 1.5mm minimum / 2.5mm maximum SIRCO MOT PV - 543 544 B - SOCOMEC...

  • Page 30: Trouble Shooting Guide

    • The FAULT / Manual LED will also be on when contact 313 is closed with 317. (Force the SIRCO MOT PV to off position). This is a normal condition. • Should the Fault LED remain on abnormally, contact SOCOMEC. Impossible to padlock •...
  • Page 31 SIRCO MOT PV - 543 544 B - SOCOMEC...
  • Page 32 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 543 544 b - EN - 09/16...
