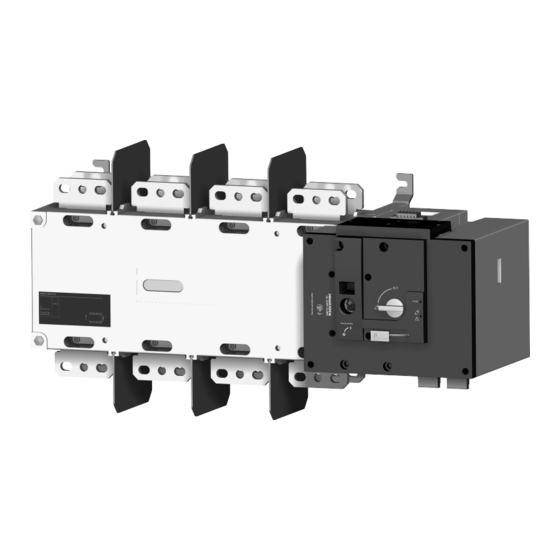

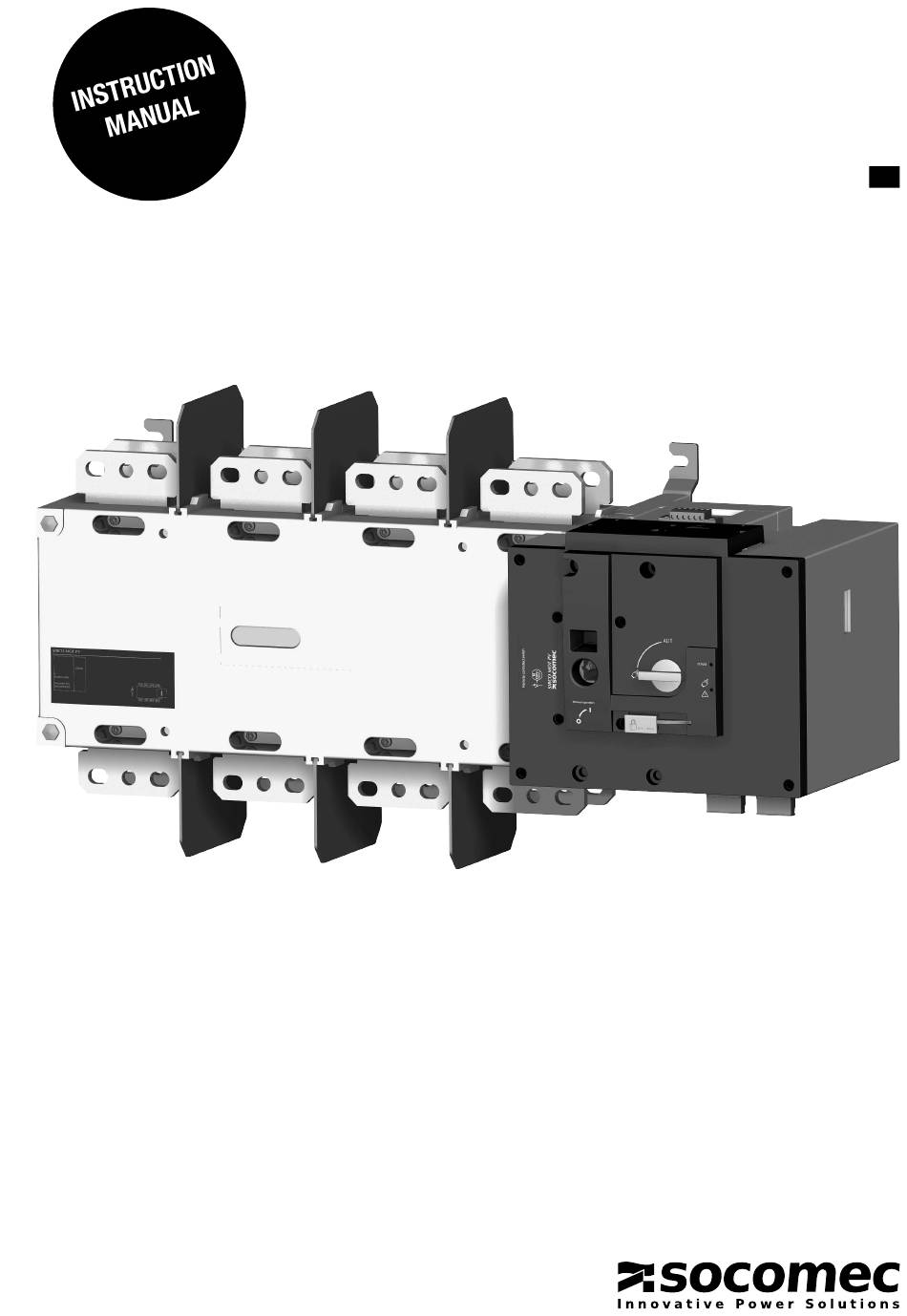

- Page 1 SIRCO MOT PV Motorised photovoltaic switches www.socomec.com...
-
Page 2: Table Of Contents
.............18 www.socomec.com To download, brochures, catalogues and technical manuals. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 3: General Safety Instructions
• As a minimum the SIRCO MOT PV comply with the following international standard: - UL98B The information provided in this instruction manual is subject to change without notice, remains for general information only and is non-contractual. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 4: General Overview
13. Red LED Indication: Product Unavailable / Manual Mode / Fault Condition 14. Padlocking facility (Up to 3 padlocks of dia. 4 – 8mm) 15. Emergency manual operation shaft location (Accessible only in manual mode) 16. Terminal Shields SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 5: Product Identification
2. Complete SIRCO MOT PV product current rating and reference number label (serial number, barcode and UL marking) 3. Emergency manual operation direction of rotation indication label 4. Auxiliary power supply contacts identification label 5. Motor barcode and serial number 6. Output contacts identification label 7. Input contacts identification label SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 6: Environmental
2.3.3.2. Storage duration period • Maximum storage up to a period of 12 months (Recommendation: to be stored in dry, non corrosive and non saline atmospheric conditions) 2.3.3.3. Storage position A maximum of 1box may be stocked vertically SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 7: Shipping Weights By Reference Sirco Mot Pv
2.4.2. Factory fitted accessory SUPPLEMENTARYAUXILIARYCONTACT(AC) Pre-breaking and signaling of positions 0 and I: 2 additionals auxiliary contacts NO / NC are included. As standard for rating 2000 A (UL). For Low level AC: please consult SOCOMEC. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 8: Installation
2. Emergency manual operation: Maximum operating radius with an operating angle of 90° 3. Phase Barriers 4. Flush mounting cutout dimensions for front door 5. Emergency removable handle 3.2. Mounting orientation 2000 A Recommended Not Allowed CAUTION Always install the product on a flat and rigid surface. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 9: Assembly Of Customer Mounted Accessories
1600A) to be powered from an appropriate DC supply. (Usually the battery of the backup generator source). This converter is to be positioned as close as possible to the DC power source. 301 302 301 302 SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 10: Factory Fitted Accessory
Pos I Denomination Terminal Description Characteristics Recommended Cable Section AdditionalAux 81 / 91 Common Contact Dry Contacts 82 / 92 Normally Closed Contact 1,5 – 2,5 mm 2A AC1 / 250V 84 / 94 Normally Open Contact Included SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 11: Connections
2000 A Frame size B8 (UL) 3.94 in Maximum bars width Cu 100 mm 354/398 lb.in Tightening torque min./max 40/45 Nm 4.2. Connection configuration Kit ref. 2609 1200 MANDATORY 2P+(-)/2P-(+) CHARGE / LOAD CHARGE / LOAD SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 12: Control Circuits
Verify that the Auxiliary power supply feeding terminals 301 and 302 are within CAUTION the limits of 208Vac -> 277Vac ±20% (166-332Vac). Do not handle any control or power cables connected to the SIRCO MOT PV DANGER when voltage may be present. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 13: Sirco Mot Pv Input And Output Contacts
Do not connect terminals 312 to 317 to any power supply. These order inputs are ATTENTION 75A436 3200A Ue 1000V 19PV4320 75A436 3200A Ue 1000V TETRA 19PV4320 TETR powered through terminal 317 and external dry contacts ONLY. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 14: Operating Modes
Turn the handle 90° clockwise or anti- selector switch back to clockwise (depending on the position to AUT position. be reached) for each consecutive change in position. I -> O -> I. SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 15: Electrical Operation
75A429 630A Ue 1000V Common supply for inputs 312 to 316 75A430 I800A Ue 1000V 75A431 1000A Ue 1000V 75A432 1250A Ue 1000V 75A433 1600A Ue 1000V 75A434 2000A Ue 1000V 75A436 3200A Ue 1000V SIRCO MOT PV UL - 545 672 B - SOCOMEC... - Page 16 • Order O is maintained. (Bridge 316 – 317) • Orders I have priority over order 0. position I • If order I disappears, the device returns to zero position 0 position. (With the power supply available). maintened (Note: Excludes position switching delays) SIRCO MOT PV UL - 545 672 B - SOCOMEC...
-
Page 17: Fixed Outputs - Dry Contacts
Exception: motor detection sampling rate is every 5 min 5.1.3.4. Technical data Auxiliary Contact Quantity Configuration Mechanical Endurance 800 cycles Response Time 5 – 10 ms Startup duration 200ms Rated Voltage / Switching Voltage 250Vac Rated Current Surge protection Vin_sg: 4.8kV (1.2/50µs surge) SIRCO MOT PV UL - 545 672 B - SOCOMEC... -
Page 18: Trouble Shooting Guide
• The FAULT / Manual LED will also be on when contact 313 is closed with 317. (Force the SIRCO MOT PV to off position). This is a normal condition. • Should the Fault LED remain on abnormally, contact SOCOMEC. Impossible to padlock •... - Page 19 SIRCO MOT PV UL - 545 672 B - SOCOMEC...
- Page 20 SOCOMEC R.C.S. Strasbourg B 548 500 149 B.P. 60010 - 1, rue de Westhouse - F-67235 Benfeld Cedex www.socomec.com 545672B - EN - 04/16...
