- Page 1 STATYS XS 16A / 32A http://www.socomec.com/ www.socomec.com...
-
Page 2: Table Of Contents
10. TROUBLESHOOTING ..........19 STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 3: Warranty Certificate
The warranty terms are stipulated in the offer, by default the following clauses apply. The SOCOMEC warranty is strictly limited to the product(s) and does not extend to equipment which may be integrated with this(these) product(s), nor the performance of this equipment. -
Page 4: Safety Instructions
SOCOMEC. This document is not a specification. SOCOMEC reserves the right to modify the content of this document without notice. Every component of this product is checked for high specification standards, this unit must be exclusively installed, commissioned and repaired by specialist technical personnel authorised by SOCOMEC. -
Page 5: Security
Please confirm the input voltage does not exceed the rated capacity of the Statys XS. Do not disassemble this product without a technician from the original manufacturer or authorized distributor. Doing so voids your warranty and is also a shock hazard. STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 6: Warning Plate Symbols
We remind you of the need to observe the safety recommendations and warnings shown on the labels located inside and outside of the unit. Danger ! High voltage (black/yellow) Ground terminal Read the user manual before performing any operation STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 7: Electrical Risk
SOCOMEC may be used in combination with the devices. • For any questions regarding the disposal of the product, contact SOCOMEC • SOCOMEC disclaims any liability for damage caused to property or persons caused by errors that may have occurred in this document. -
Page 8: Product Description
In addition, the Statys XS also provides user configurable power states (voltage or frequency) for the Statys XS switching condition. Load on Source A STATYS XS Source A Load Source B Load on Source B STATYS XS Source A Load Source B STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 9: Packaging
– Quick Start guide – Handle and screws x1 set – Backplate and screws x1 set – IEC C19 - C20 cables x2 (XS 16A only) – Protective cover and screws x1 sed (XS 32A only) STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 10: Product Introduction

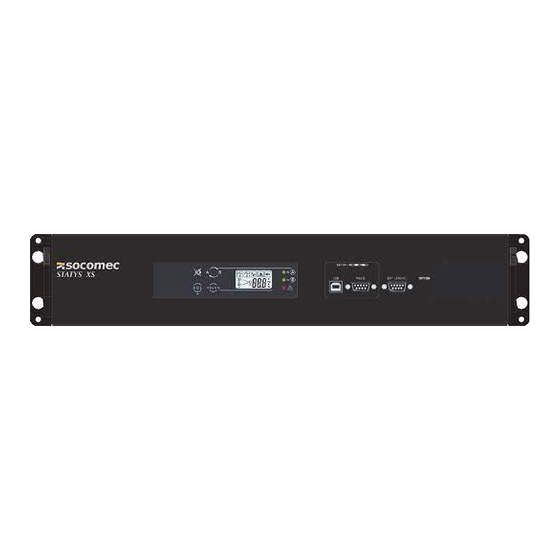

Connection for software setup or monitoring software RS-232 port Connection for software setup or monitoring software Dry contact port Dry Contact External communication slot For external communication cards, e.g. RS- 485, SNMP *only on the Output STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 11: Lcd
Description/function Input A error or power failure Input B error or power failure Overload System malfunction or abnormal Alarm on Alarm off Digital display showing input/output power connected to load Statys XS numeric display STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 12: Rear Panel
4.3. Rear Panel STATYS XS 16A STATYS XS 32A Power input (B) Power input (A) Output socket a = max. 16A b = max.10A Output breaker Mandatory protective cover provided (XS 32A). STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 13: Interfaces
Relay 5 General alarm Common 1 Relay 1 Pre-alarm active Common 2 Relay 2 Over temperature • The Statys XS provides one external communication slot (optional) for the user: SNMP or RS-485 (see § 4.3.1) STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 14: Installation
Circuit breaker rating A: • 16A STATYS XS : 16A circuit breaker ; tripping curve D • 32A STATYS XS : 32A circuit breaker ; tripping curve D STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... - Page 15 Figure 1 Figure 2 Figure 3 STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC...
-
Page 16: Operating
Measurements (voltage, frequency, current and load rate) of each Input or Output can be read with the button. Push the button to change the Input or Output, the pictogram indicate the Input or the Output concerned, A = source A, B = source B and L = output (Load) STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 17: Configuration
6.4. Configuration Statys XS can be customised via USB or serial link using a dedicated software named XS Config. Please refer to the download section of www.socomec.com. 7. DRY CONTACTS AVAILABLE FOR CONFIGURATION Event Code Source A voltage abnormal Er03... -
Page 18: System Specifications
Dimension W x D x H (mm) 440 x 285 x 44 440 x 360 x 88 Net Weight (kgs) Environment Working temperature -5 to 40°C @ 5 to 90% RH (non-condensing) Safety EN 60950-1 Standards compliance EN 62310-2 STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... -
Page 19: Troubleshooting
Statys XS input Error code Er03 to Er06 Request service by professional Abnormal electrical grid electrician Error code Er16 Overload Check the load capacity Error code Er22 to Er33 Abnormal internal components Please contact us STATYS XS - IOMSTAXS1217-EN_04 - SOCOMEC... - Page 20 Socomec: our innovations supporting your energy performance 3,200 independent manufacturer employees % of sales revenue experts worldwide dedicated to R&D dedicated to service provision Your power management expert POWER POWER POWER ExPERt sWitCHing mOnitORing COnvERsiOn sERviCEs The specialist for critical applications •...
