Si00-876

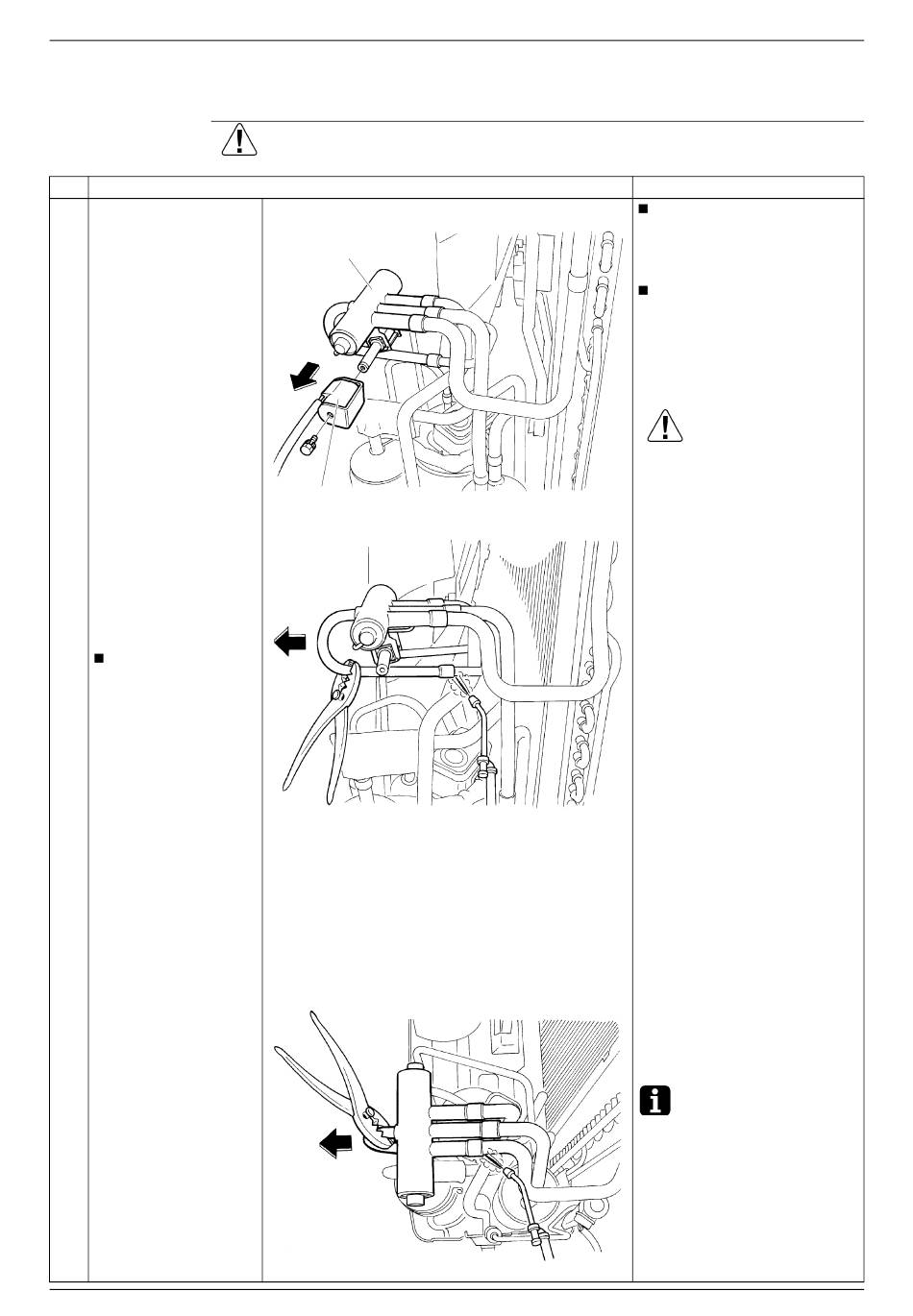

6. Removal of the Four Way Valve

Procedure
Step
1 Loosen the screw of the
four way valve coil.
Heat up the brazed part
2
of the four way valve
and disconnect.
Be sure to apply
nitrogen
replacement when
heating up the
brazed part.
Heat up every brazed
3
part in turn and
disconnect.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Four way valve
Four way valve coil
Removal of the Four Way Valve
Points
Provide a protective sheet or
a steel plate so that the
brazing flame cannot
influence peripheries.
Be careful so as not to break
the pipes by pressing it
excessively by pliers when
withdrawing it.
Caution
Be careful about the four way
valve, pipes and so on, which
(R2734)
were heated up by a gas
brazing machine, so as not to
get burnt your hands.
Cautions for restoration
1. Restore the piping by non-
oxidation brazing. Braze it
quickly when no nitrogen gas
can be used.
2. It is required to prevent the
carbonization of the oil inside
the four way valve and the
deterioration of the gaskets
affected by heat. For the
sake of this, wrap the four
way valve with wet cloth and
(R2735)
provide water so that the
cloth will not be dried and
avoid excessive heating.
(Keep below 120°C)
In case of the difficulty with
gas brazing machine
1. Disconnect the brazed part
where is easy to disconnect
and restore.
2. Cut pipes on the main unit by
a miniature copper tube
cutter in order to make it
easy to disconnect.
Note: Do not use a metal
saw for cutting pipes by all
means because the sawdust
come into the circuit.
(R2736)
21
