Daikin RKD50BVM Service Manual page 5
5.0/6.0/7.1/8.0 kw class
18000/24000/28000 btu/h class
Hide thumbs
Also See for RKD50BVM:
- Service manual (224 pages) ,
- Service manual (210 pages) ,
- Pocket manual (169 pages)
Advertisement
Si00-876

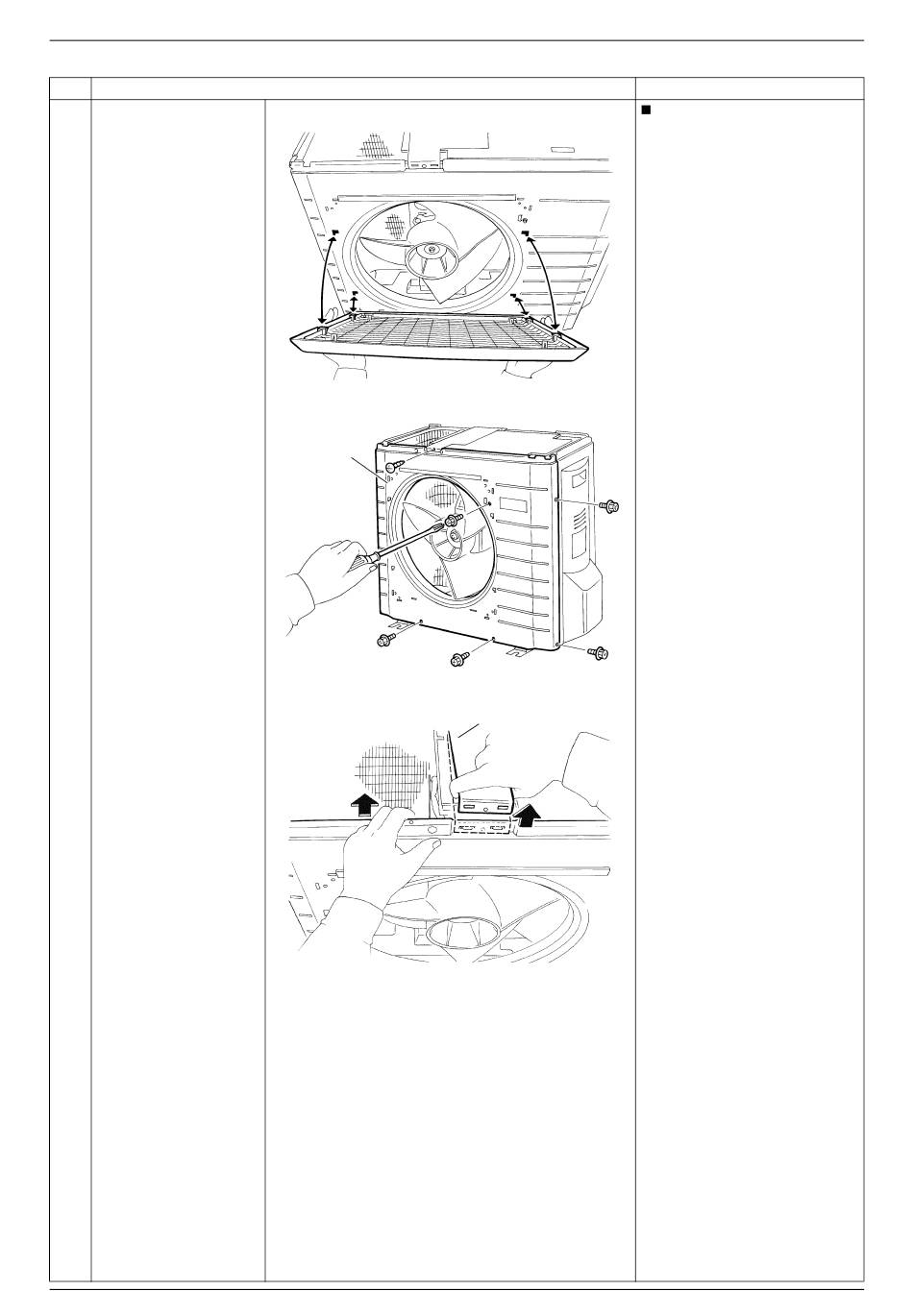

Step
Remove the 6 screws
3
of the front panel.
4
Push the front panel
and lift the shield plate
to unfasten the hooks.
Removal Procedure
Procedure
Front panel
(1) Push the
front panel.
(R2679)
(R2680)
Shield plate
(2) Lift the shield
plate upwards.
(R16560)
Removal of Outer Panels
Points
The discharge grille has 4
hooks.
3
