Removal of Outer Panels

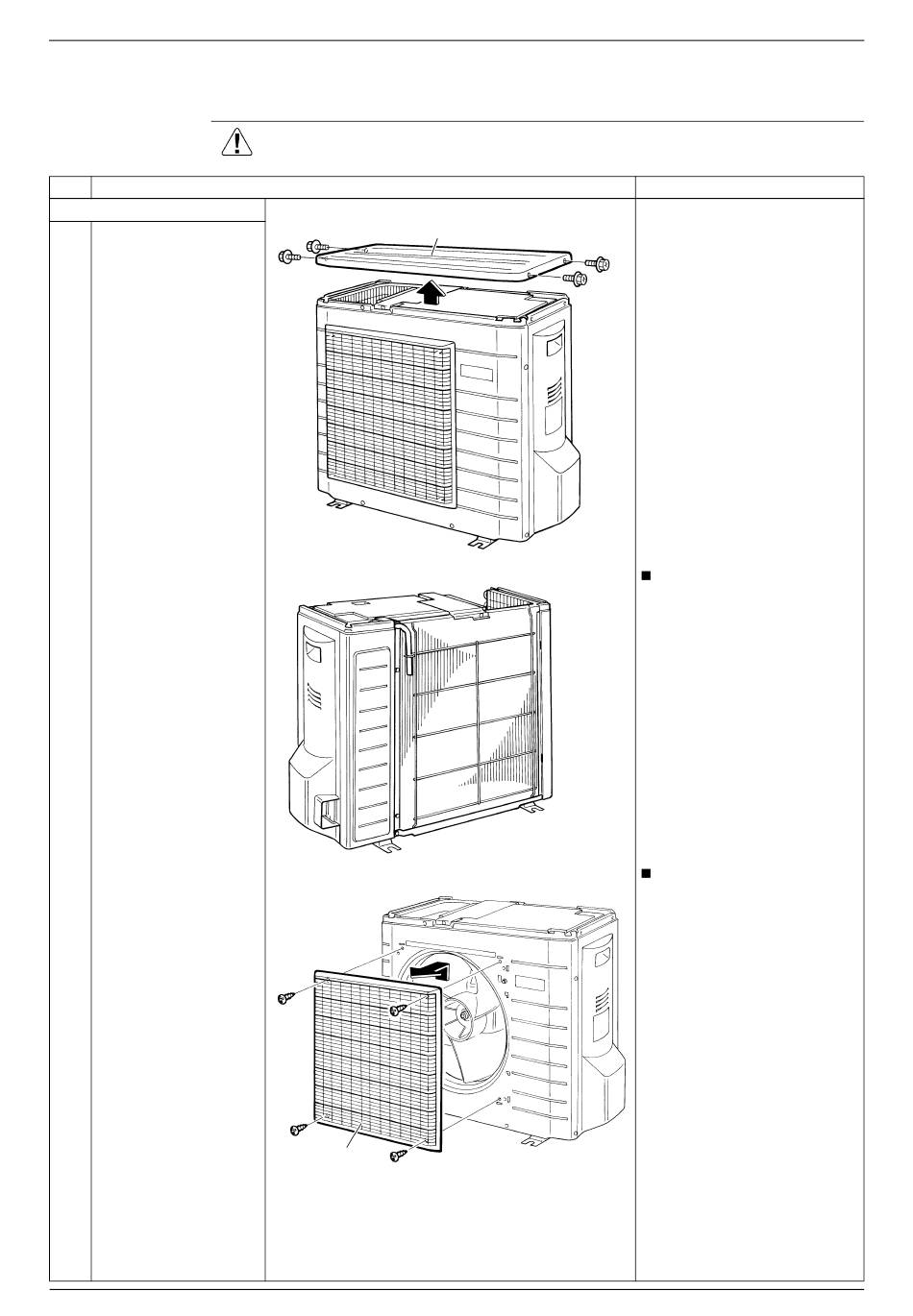

1. Removal of Outer Panels
Procedure
Step
1. Remove the panels.
1
Remove the 4 screws
and lift the top panel.
Remove the 4 screws
2
and remove the
discharge grille.
2
Warning
Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Top panel
Discharge grille
(R16425)
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
(R16426)
Slide the discharge grille
upward and remove it.
(R16559)
Si00-876
Points
Removal Procedure
