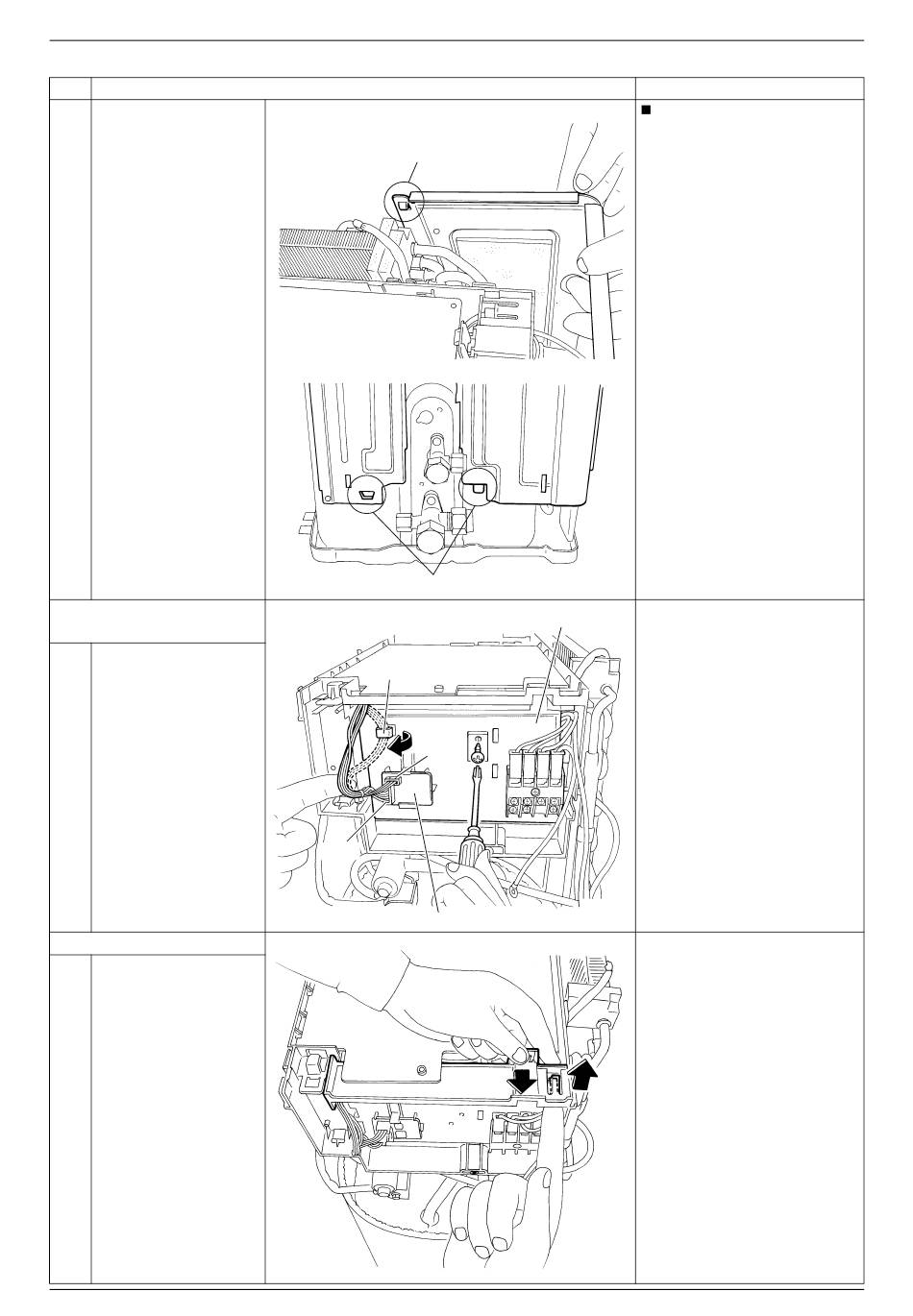

Daikin RKD50BVM Service Manual page 13

Si00-876
Step
5 Unfasten the hooks and
remove the right side
panel.
2. Remove the service
monitor PCB.
Release the harness
1
from the hook.
2 Disconnect the
connectors [S52]
[S102] from the service
monitor PCB.
Remove the service
3
monitor PCB.
4 Remove the screw of
the terminal board.
3. Remove the main PCB.
Unfasten the hook to
1
release the terminal
board.
Open the terminal
board.
Removal Procedure
Procedure
Hook
Hook
Hook
[S52]
[S102]
Service monitor PCB
Removal of PCBs / Electrical Box
When reassembling, insert
the upper hook and the 2
lower hooks back into place.
(R7028)
(R7026)
Terminal board
(R17064)
(R2705)
