Removal of PCBs / Electrical Box

3. Removal of PCBs / Electrical Box
Procedure
Step

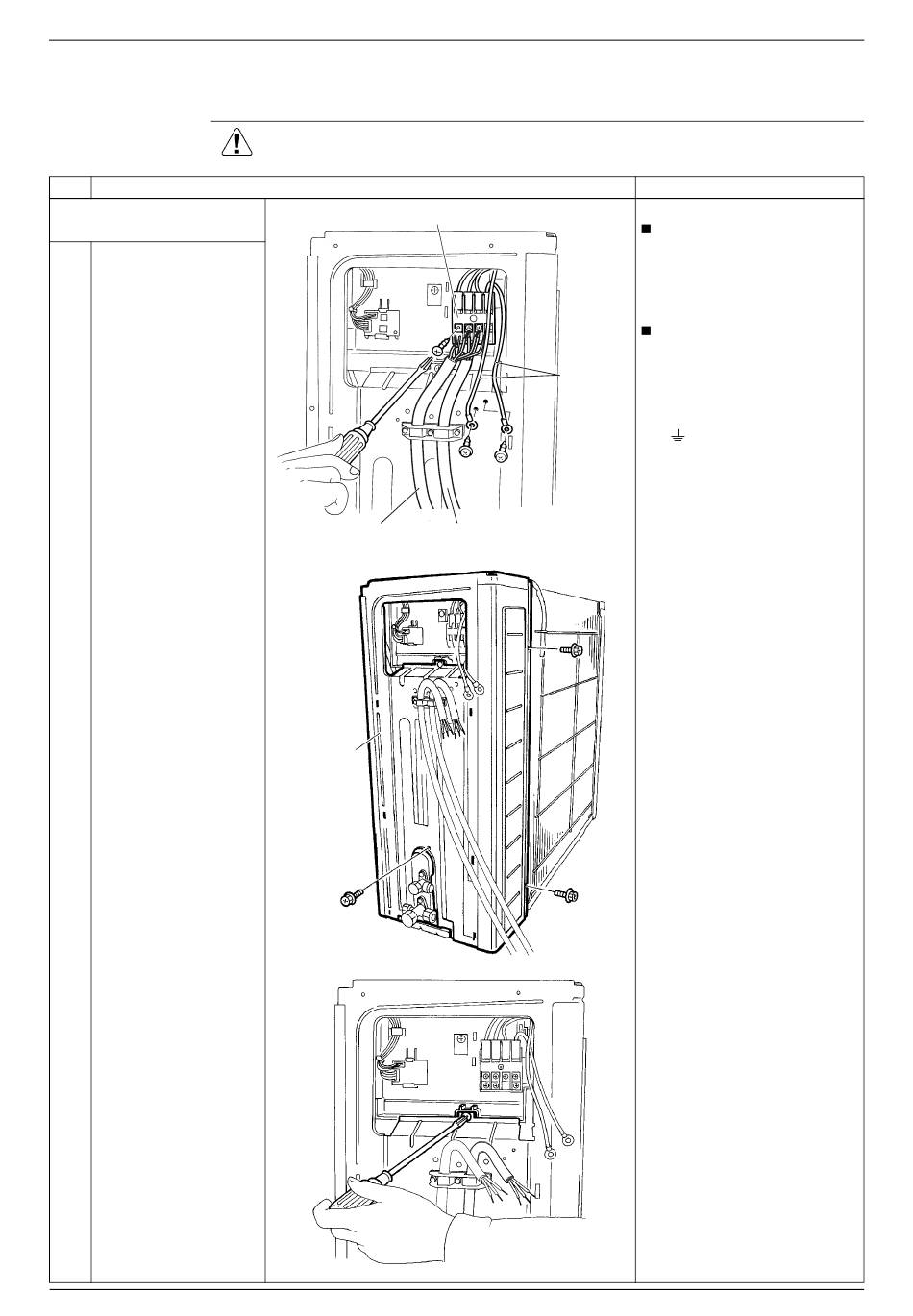

1. Remove the right side
panel.
1 Remove the 4 screws
and disconnect the
connection wire and the
power supply wire.
Remove the 2 screws
2
and detach the earth
wires.
Remove the 3 screws
3
of the right side panel.
Remove the screw of
4
the electrical box.
10
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Terminal board
Connection
wire
Right side
panel
Earth wire
(R16505)
Power supply
wire
(R16506)
(R16507)
Si00-876
Points
Preparation
Remove the top panel and
the front panel according to
the "Removal of Outer
Panels".
Colors of the connection
wires are as follows.
(1) black
(2) white
(3) red
( ) yellow / green
Removal Procedure
