Summary of Contents for Daikin RKS25EBVMV

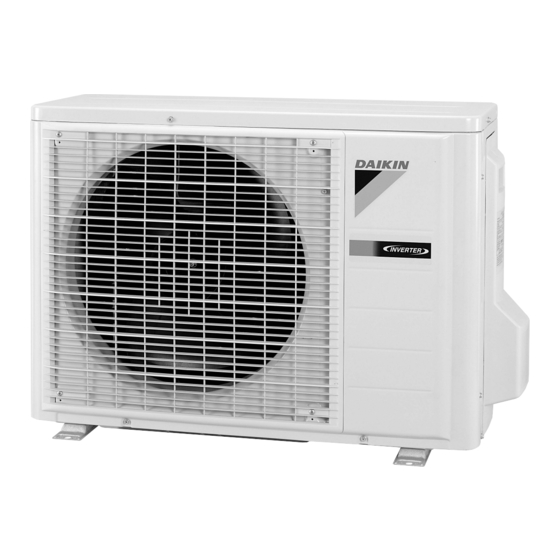

- Page 1 Si001267EB REMOVAL PROCEDURE S E R V I C E M A N U A L 2.5/3.5/4.2 kW Class Outdoor Unit Inverter Pair Type...
- Page 2 Service Manual Removal Procedure Outdoor Unit Cooling Only Heat Pump RKS25EBVMV RXS25EBVMV RKS35EBVMV RXS35EBVMV RKS25GVM4 RXS25GVMV RKS35GVM4 RXS35GVMV RKS25GVMV RKS35GVMV RKS25JVMG RKS35JVMG RKD25GVMV RKD35GVMV RKD42GVMV RKD25HVMV RKD35HVMV RKD42HVMV...
-
Page 3: Table Of Contents
Si001267EB Table of Contents 1. Outer Panels ...................2 2. Fan Motor....................4 3. Electrical Box ..................6 4. PCB......................8 5. Reactor / Partition Plate ................9 6. Sound Blankets ..................10 7. Four Way Valve..................11 8. Compressor...................13 Note: The illustrations may be slightly different depending on the model. The illustrations are for heat pump models as representative. -
Page 4: Outer Panels
Outer Panels Si001267EB 1. Outer Panels Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the screw of The stop valve cover is the stop valve cover. united with the shield plate. - Page 5 Si001267EB Outer Panels Step Procedure Points Remove the 6 screws Take care not to cut your Outdoor temperature thermistor on the right side and the finger by the fins of the Guard net rear side. outdoor heat exchanger. Release the outdoor temperature thermistor.
-
Page 6: Fan Motor
Fan Motor Si001267EB 2. Fan Motor Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the nut of the Nut size: M6 outdoor fan. Remove the outdoor 10 mm fan. - Page 7 Si001267EB Fan Motor Step Procedure Points Open the 2 hooks and When reassembling, put the release the fan motor fan motor lead wire through lead wire. the back of the fan motor (so as not to be entangled with the outdoor fan). Lead wire Outdoor fan (R3249)
-
Page 8: Electrical Box
Electrical Box Si001267EB 3. Electrical Box Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Disconnect the 2 [S30] connectors for the reactor. Disconnect the [S30]: compressor connector [S30]. - Page 9 Si001267EB Electrical Box Step Procedure Points Release the discharge Be careful not to lose the pipe thermistor. fixture for the thermistor. Fixture (R18789) Discharge pipe thermistor (R16457) Cut the clamp. Be careful not to lose the clip for the thermistor. Pull out the outdoor heat exchanger thermistor.
-
Page 10: Pcb
Si001267EB 4. PCB Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the 2 screws You can remove the main and detach the earth / PCB when you disconnect ground wires. -
Page 11: Reactor / Partition Plate
Si001267EB Reactor / Partition Plate 5. Reactor / Partition Plate Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the screw and remove the reactor. Reactor (R11879) Remove the 2 screws. -
Page 12: Sound Blankets
Sound Blankets Si001267EB 6. Sound Blankets Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the sound The design of sound blanket (outer). blankets varies depending on the model. -
Page 13: Four Way Valve
Si001267EB Four Way Valve 7. Four Way Valve Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. - Page 14 Four Way Valve Si001267EB Step Procedure Points Remove the screw and Four way valve coil remove the four way valve coil. (R7247) Remove the sheets of putty. (R7248) Heat up the brazed Four way valve parts and withdraw the piping with pliers. (R7249) (R7250) Removal Procedure...
-
Page 15: Compressor
Si001267EB Compressor 8. Compressor Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. - Page 16 Compressor Si001267EB Step Procedure Points Remove the 2 nuts of the compressor. Compressor (R11889) Heat up the brazed part of the discharge side and disconnect it. Heat up the brazed part of the suction side and disconnect it. Lift and remove the compressor.
- Page 17 Revision History Month / Year Version Revised contents 09 / 2012 Si001267 First edition 11 / 2013 Si001267EA Model addition: RKS25/35GVM4, RKS25/35GVMV, RKS25/35JVMG 02 / 2014 Si001267EB Model addition: RXS25/35GVMV, RKD25/35/42HVMV...
- Page 18 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
