Si00-876
Step
4
Remove the screw of
the main PCB.
Unfasten the 2 hooks
5
and release the main
PCB from the ditch of
the front side.
Disconnect the
6
harnesses [S10] [AC2]
while lifting the main
PCB.
7
Disconnect the
connectors [S51]
[S101].

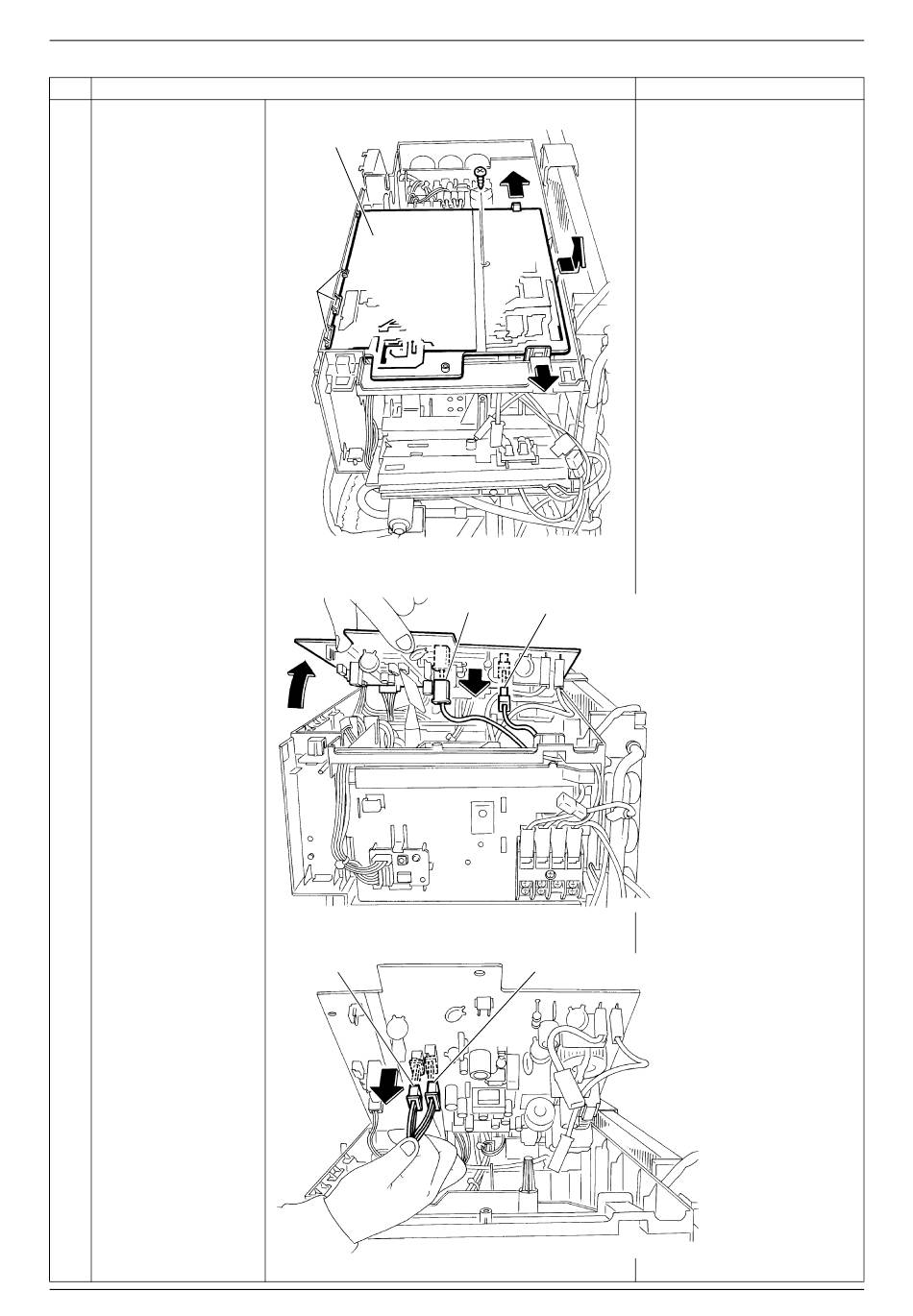

Removal Procedure
Procedure
Main PCB
Ditch
[S10]
[S101]
Removal of PCBs / Electrical Box
(R2709)
[S10] [AC2]: terminal board
[AC2] (white)
(R2710)
[S51] [S101]: service monitor
PCB
[S51]
(R2711)
Points
13
