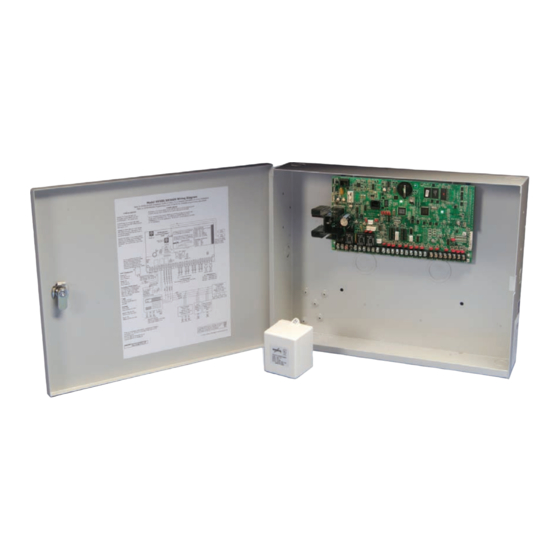

INST ALLA TION GUIDE

XR100 SERIES

COMMAND PROCESSOR™ PANEL

Table of Contents

Need help?

Do you have a question about the COMMAND PROCESSOR XR100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for DMP Electronics COMMAND PROCESSOR XR100 Series

Page 1 INST ALLA TION GUIDE XR100 SERIES COMMAND PROCESSOR™ PANEL...
Page 2 MODEL XR100 SERIES ACCESS CONTROL COMMAND PROCESSOR™ PANEL INSTALLATION GUIDE Contains installation instructions for use with the Model XR100 and XR100N Access Control Command Processor™ Panel. FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception.
Page 3: Table Of Contents
T ABLE OF CONTENTS Revisions to This Document Product Specifications Power Supply .................1 Communication ..............1 Panel Zones ................1 Keypad Bus ................1 LX-Bus™ ................1 Outputs .................1 Enclosure Specifications ............1 Panel Features Description................2 Zone Expansion ..............2 Output Expansion ..............2 Central Station Communication..........2 Before you Begin ..............3 About this Guide..............3 How to Use this Guide ............3...
Page 4 T ABLE OF CONTENTS Smoke and Glassbreak Detector Output Terminals 11 and 12 .............13 Current Rating..............13 Protection Zones 10.1 Terminals 13–24 ..............14 10.2 Operational Parameters............14 10.3 Zone Response Time.............14 10.4 Keyswitch Arming Zone ............14 Powered Zones for 2-Wire Smoke Detectors 11.1 Terminals 25–26 and 27–28 ..........14 11.2...
Page 5 T ABLE OF CONTENTS Area Information 20.1 Ownership ................21 20.2 Annunciation ................21 20.3 Trouble Display..............21 20.4 Closing Wait .................21 20.5 Local Bell Supervision ............21 UL 1023 Specifications 21.1 Audible Devices ..............21 21.2 Auxiliary Circuits ..............21 21.3 Bell Cutoff................21 21.4 Entry Delay ................21 21.5 Exit Delay ................21 21.6...
Page 6 T ABLE OF CONTENTS UL 294 Specifications 27.1 Panel Designation ..............24 27.2 Tamper Protection ..............24 27.3 Compatible Devices ..............24 Universal UL and NFPA Fire Alarm Specifications 28.1 Introduction .................24 28.2 Wiring .................24 28.3 Transformer .................25 28.4 End-of-Line Resistor..............25 28.5 System Trouble Display ............25 28.6 Fire Display ................25 28.7...
Page 7 T ABLE OF CONTENTS Underwriters Laboratories Canada (ULC) 34.1 XR100 Series ULC Installations ..........29 Wiring Diagrams 35.1 Multiple Notification Circuit Modules ........30 35.2 Multiple Notification Circuit Modules for Zoned Annunciation ..31 35.3 Dual Style D Zone Module Installation ........32 35.4 Cellular Backup Installation for Derived Channel Burglary ..33 35.5 Derived Channel Installation Using Bosch D8122.....34...
Page 8: Revisions To This Document
REVISIONS Revisions to This Document This section explains the changes that were made to this document during this revision. This section lists the date the change was made, the section number and heading, and a quick summary of the change. Date Section Number and Heading Summary of Changes...
Page 9: Product Specifications
INTRODUCTION Product Specifications Power Supply Transformer Input: Model 327, plug-in — Primary input: 120 VAC, 60 Hz, Secondary output: 16.5 VAC 50 VA Model 322, wire-in — Primary input: 120 VAC, 60 Hz, Secondary output: 16 VAC 56 VA Standby Battery: 12 VDC, 1.0 Amps Max.
Page 10: Panel Features
INTRODUCTION Panel Features Description The DMP XR100 Series Command Processor™ Panel is a versatile 12 VDC, combined access control, burglary, and fire communicator panel with battery backup. The XR100 Series provides eight on-board burglary zones and two on-board 12 VDC Class B powered zones. The powered zones have a reset capability to provide for 2-wire smoke detectors, relays, or other latching devices.
Page 11: Before You Begin
INTRODUCTION Before you Begin Before installing the XR100 Series, we recommend you read through the entire contents of this guide. Familiarize yourself with the features of the panel and the key points to remember during the installation. Be sure to read and understand all of the caution statements printed in bold italics.
Page 12: Wiring Diagram
INTRODUCTION Wiring Diagram The XR100 Series diagram below shows some of the accessory modules you can connect for use in various applications. A brief description of each module follows in section 3.4. TYPES OF SERVICE NFPA 72 NFPA 72 OPERATING INSTRUCTIONS Central Station DACT service may be provided.
Page 13: Lightning Protection
INTRODUCTION Lightning Protection Metal Oxide Varistors and Transient Voltage Suppressors help protect against voltage surges on XR100 Series input and output circuits. Additional surge protection is available by installing the DMP 370 or 370RJ Lightning Suppressors. Accessory Devices Interface Card 733, 734 Wiegand Interface Provides system codeless entry, and arming and disarming using access control readers.
Page 14: Accessory Devices (Continued)
INTRODUCTION Accessory Devices (continued) Indicating and Initiating Devices 865 Supervised Style Y or Z Provides supervised alarm current when using the XR100 Series panel bell output and up to Notification Circuit Module 5 Amps at 12 or 24 VDC when using a listed auxiliary power supply. The 865 can supervise 2-wire Style Y or Z circuits for ground faults, opens, shorts, and shorts with individual LED annunciation.
Page 15: Installation
INST ALLA TION Installation Mounting the Enclosure The metal enclosure for the XR100 Series must be mounted in a secure, dry place to protect the panel from damage due to tampering or the elements. It is not necessary to remove the XR100 Series PCB when installing the enclosure. Figure 2 shows the mounting hole locations for both the Model 350/350A Enclosures.
Page 16: Connecting Lx-Bus And Keypad Bus Devices
INST ALLA TION Connecting LX-Bus and Keypad Bus Devices Several factors determine the DMP LX-Bus™ and keypad bus performance characteristics: the wire length and gauge used, the number of devices connected, and the voltage at each device. When planning an LX-Bus™ and keypad bus installation, keep in mind the following information: 1.
Page 17: Secondary Power Supply
INST ALLA TION Secondary Power Supply Battery Terminals 3 and 4 Battery Connect the black battery lead to the negative Command Start Processor battery terminal. The negative terminal connects to Panel the enclosure ground internally through the XR100 –B BELL GND Battery Series circuit board.
Page 18: Xr100 Series Power Requirements
INST ALLA TION XR100 Series Power Requirements During AC power failure, the XR100 Series panel and all connected auxiliary devices draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. The following table lists the XR100 Series panel power requirements.
Page 19 INST ALLA TION Standby Battery Power Calculations Standby Current Alarm Current 736P POPIT Interface Module Qty _______ 25mA ______ Qty _______ 25mA ______ Radionics Popex, POPITs, OctoPOPITs Qty _______ ___mA ______ Qty _______ ___mA ______ 738A Ademco Wireless Interface Module Qty _______ 75mA ______ Qty _______...
Page 20: Standby Battery Selection
INST ALLA TION Standby Battery Selection To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from section 6.8 XR100 Series Power Requirements, perform the following: 1.
Page 21: Bell Output
INST ALLA TION Bell Output Terminals 5 and 6 Terminal 5 supplies positive 12 VDC to power alarm bells or horns. This output can be steady, pulsed, or temporal depending upon the Bell Action specified in Output Options. Terminal 6 is the ground reference for the bell circuit. This supervised output detects 1k Ohms or less as normal.
Page 22 INST ALLA TION Protection Zones 10.1 Terminals 13–24 Zones 1 to 8 (terminals 13 to 24) on the XR100 Series panel are all grounded burglary zones. For programming purposes, the zone numbers are 1 through 8. Listed below are terminal 13 to 24 connection functions. Terminal Function Terminal...
Page 23 INST ALLA TION 11.2 Compatible 2-Wire Smoke Detector Chart Manufacturer Model Detector Base Base # of Zone Panel Voltage Detectors Expansion Zones Range (12V/24V) Modules Detection Systems DS230, DS230F MB2W, MB2WL 8.5-33 715, 715-8, Detection Systems DS250, DS250TH MB2W, MB2WL 8.5-33 10/12 9 &...
Page 24 INST ALLA TION Dry Contact Relay Outputs 12.1 Description The XR100 Series panel provides two auxiliary SPDT relays when equipped with two DMP Model 305 relays in sockets K6 (Output 1) and K7 (Output 2) and a Model 431 Output Harness on the J2 4-pin Header. Each relay provides one SPDT set of contacts that can be operated by any of the functions listed below: 1) Activation by zone condition: Steady, Pulsing, Momentary, and Follow 2) Activation by 24-hour 7-day schedule: One on and one off time a day for each relay...
Page 25 INST ALLA TION J23 6-Pin Header 14.1 Description The XR100 Series Command Processor™ panel supports Direct Programming, LX-Bus, and, DMP Wireless operation. These operations cannot function at the same time. Install a jumper on one pair of J23 headers to indicate how the panel is programmed to operate.
Page 26 INST ALLA TION J1 Ethernet Connector (XR100N only) 16.1 Description The J1 Ethernet Connector is available on the XR100N Network version to connect directly to an Ethernet network using a standard patch cable. 16.2 Ethernet LEDs Link LED The two LEDs, located to the left of J1 Ethernet Connector, indicate network Activity LED Ethernet operation.
Page 27 INST ALLA TION 17.5 FCC Registration The Model XR100 Series complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the outside of the enclosure of this equipment is a label that contains, among other information, a product identifier in the format US:CCKAL00BXR500.
Page 28 COMPLIANCE Universal UL Burglary Specifications 19.1 Introduction The programming and installation specifications contained in this section must be completed when installing the XR100 Series panel in accordance with any of the UL burglary standards. Additional specifications may be required by a particular standard.
Page 29 COMPLIANCE Area Information 20.1 Ownership The control unit system shall be under one ownership. 20.2 Annunciation The System shall be installed so that when arming any area from any keypad, the local bell shall annunciate. 20.3 Trouble Display The Status List programming shall be set to annunciate all trouble messages at all keypads. See the XR100 Series Programming Guide (LT-0896).
Page 30 COMPLIANCE 22.4 Exit Delay The maximum exit delay used must not be more than 60 seconds. See the XR100 Series Programming Guide (LT-0896). 22.5 Proprietary Dialer The Model XR100 Series provides Grade A proprietary service when configured as a digital dialer. 22.6 Grade B Central Station Grade B Central Station service can be provided under by adding a Grade A Ademco AB12M bell and bell housing and placing the Model XR100 Series panel into the Model 350A Grade A Attack Resistant Housing.
Page 31 COMPLIANCE UL 1635 Specifications Digital Burglar Alarm Communicator System Units 24.1 System Trouble Display The Status List Display must include at least one keypad that displays system monitor troubles. See the XR100 Series Programming Guide (LT-0896). 24.2 Digital Dialer Telephone Number Both programmed telephone numbers must begin with a P.
Page 32 COMPLIANCE UL 609 Specifications Police Station Connected and Local Burglar Alarm Units and Systems 26.1 Grade A Mercantile For Grade A Mercantile and Police Station Connect operation the Model XR100 Series must be mounted in a Grade A Attack Resistant Housing, (DMP Model 350A). 26.2 Entry Delay The maximum entry delay used must not be more than 60 seconds when using the Model 350A Grade A housing.
Page 33 COMPLIANCE 28.3 Transformer A wire-in transformer should be used. Use the Model 322 wire-in 16 VAC 56 VA transformer or Model 327 plug-in 16 VAC 50 VA transformer installed inside an ES501 Enclosure with all wiring in conduit. The transformer must be mounted within 20 feet of the panel and connected by conduit.
Page 34 COMPLIANCE UL 864 NFPA 72 (Chapter 9) Specifications Control Units for Fire-Protective Signaling Systems 29.1 Zone Restoral Reports The Restoral Reports option must be selected as YES or Disarm. See the XR100 Series Programming Guide (LT-0896). 29.2 Power Fail Delay The Power Fail Delay option must be selected as required by the service of the panel.
Page 35 COMPLIANCE 30.2 Audible Devices At least one listed audible device rated to operate over the voltage rate of 11.7 VDC to 12.8 VDC and rated at 85 DB minimum must be used. 30.3 Auxiliary Circuits At least one fire alarm initiating device shall be used on the system. If the voltage for the device is applied by the control unit the fire alarm initiating device shall be rated to operate over the range of 11.5 VDC to 12.7 VDC.
Page 36 COMPLIANCE False Alarm Reduction Programmable Options * 33.1 Shipping Defaults and Recommended Programming for ANSI/SIA CP-01-2000 DMP XR100 SERIES SIA CP-01 FEATURE PROGRAMMING SHIPPING RECOMMENDED PARAGRAPH # AND REQUIREMENT RANGE GUIDE LT-0896 DEFAULT PROGRAMMING* DESCRIPTION SECTION # Required 4.2.2.1 Exit Time 14.2 Exit Delay 45 sec.
Page 37: Underwriters Laboratories Canada (Ulc)
COMPLIANCE False Alarm Reduction Programmable Options (continued) 33.2 Call Waiting (ANSI/SIA CP-01-2000) The Call Waiting default setting is disabled. To cancel the Call Waiting feature, program * (star) 7 0 P (pause), the standard telephone code prefix that cancels call waiting, into the telephone number string. Cancel Call Waiting for telephone lines that have Call Waiting operational on the telephone line.
Page 38: Wiring Diagrams
WIRING DIAGRAMS Wiring Diagrams 35.1 Multiple Notification Circuit Modules Digital Monitoring Products XR100 Series Installation Guide...
Page 39: Multiple Notification Circuit Modules For Zoned Annunciation
WIRING DIAGRAMS 35.2 Multiple Notification Circuit Modules for Zoned Annunciation �� ...
Page 40: Dual Style D Zone Module Installation
WIRING DIAGRAMS 35.3 Dual Style D Zone Module Installation �� ...
Page 41: Cellular Backup Installation For Derived Channel Burglary
WIRING DIAGRAMS 35.4 Cellular Backup Installation for Derived Channel Burglary �� ...
Page 42: Derived Channel Installation Using Bosch D8122
WIRING DIAGRAMS 35.5 Derived Channel Installation Using Bosch D8122 �� ...
Page 43: Lx-Bus™ Module Connection
WIRING DIAGRAMS 35.6 LX-Bus™ Module Connection Digital Monitoring Products XR100 Series Installation Guide...
Page 44: Model 860 Relay Module Connection
WIRING DIAGRAMS 35.7 Model 860 Relay Module Connection Digital Monitoring Products XR100 Series Installation Guide...
Page 45: Powered Burglary Devices
WIRING DIAGRAMS 35.8 Powered Burglary Devices �� ...
Page 46: Listings And Approvals
Listings and Approvals Underwriters Laboratories (UL) Listed Access Control System Units Police Connected Burglar Local Burglar Holdup Alarm Units and Systems Accessory 1023 Household Burglar 1076 Proprietary Burglar 1610 Central Station Burglar 1635 Digital Burglar Household Fire Warning Fire Protective Signaling UL AA High Line Security Underwriters Laboratories Canada (ULC) Listed ULC 5545...
