X1 SERIES OUTPUT EXPANSION MODULE
Installation and Programming Guide
GET STARTED
The X1 Series Output Expansion Module wires to the 4-pin connector on an X1 Door Controller or on the 4-pin connector
on the last XD Door Controller Module of an X1-8 Door Controller. Each X1 Series Door Controller can support up to nine
output module PCBs. Each output module supports up to ten outputs, giving the controller up to 92 outputs which
includes the onboard outputs of the X1 Door Controller PCB. For any additional outputs, a second Door Controller is
required.
Configuration
X1 Output Expansion
Module
X1 Output Expansion
PCB Only
For additional information about installing and programming an X1 Series Door Controller from beginning to end, see the
following documents:
• X1 Door Controller Installation and Programming Guide - LT-2264
• X1-8 Door Controller Installation and Programming Guide - LT-2289

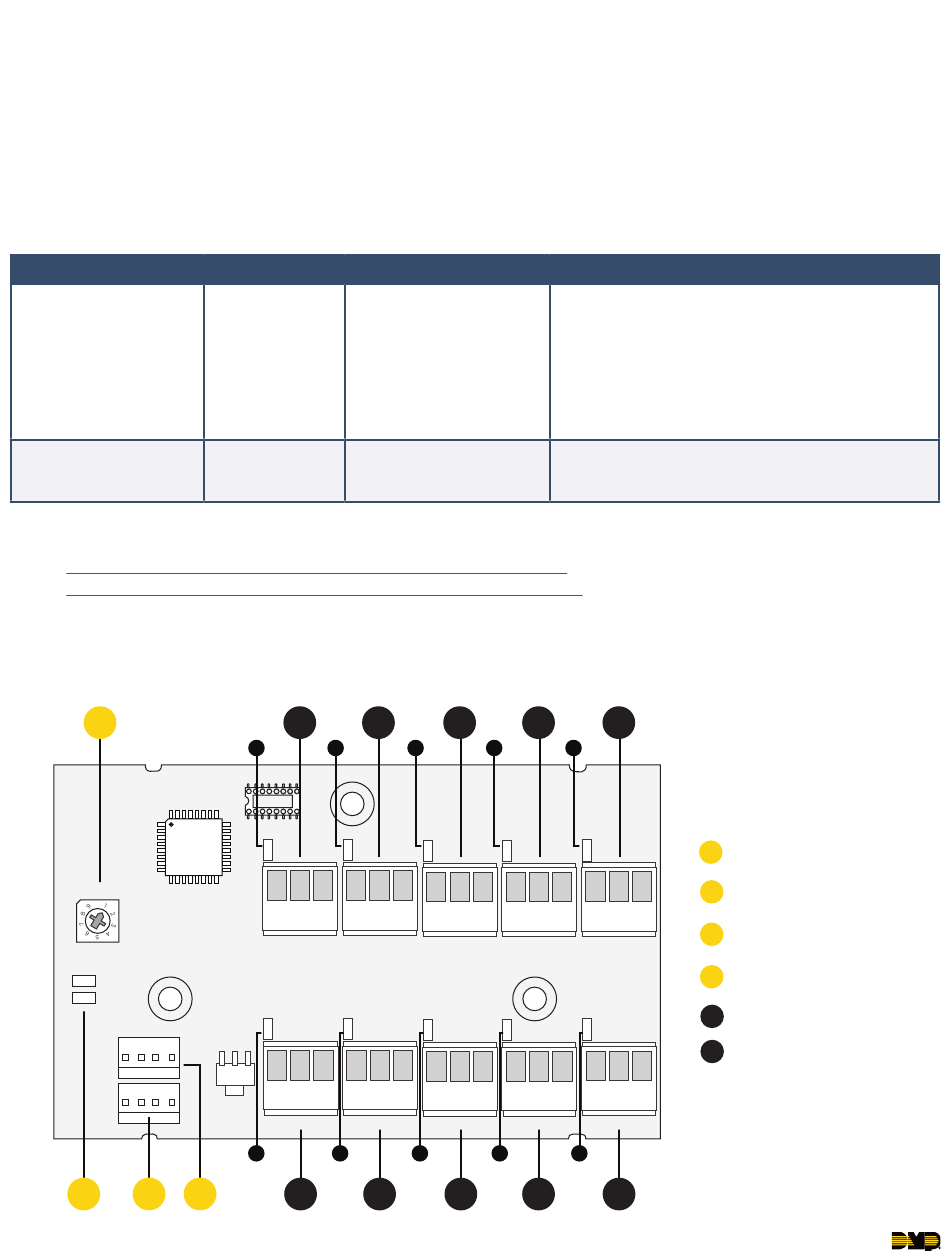

Output Module PCB Components
Refer to the diagram below throughout the installation.
A
ADDR
0
PWR
DATA
B
C
LT-2467 21293 © 2021 Digital Monitoring Products, Inc.
Part Number Included Hardware
X1-OUT-EXP •
•
X1-OUT-PCB •
RELAY RELAY
LED LED
1
2
NC 1 NO NC 2 NO
6 7
NC 6 NO NC 7 NO
LED LED
D
RELAY RELAY
Output Module This accessory includes all needed parts for
up to 10 additional outputs in one enclosure.
Enclosure
The X1-OUT-EXP can expand the number of
outputs through adding two more X1-OUT-
PCBs to the enclosure (10 outputs per PCB)
and additional X1-OUT-EXPs (up to nine total
Output Module PCBs per X1 Series system)
Output Module This accessory to X1-OUT-EXP is for
expanding from 10 to 20 outputs.
RELAY RELAY
LED LED LED
3 4
NC 3 NO NC 4 NO
8 9
NC 8 NO
NC 9 NO
LED LED
RELAY RELAY
Description
RELAY
5
A
Address Rotary
B Power LEDs
C Bottom 4-Wire Connector
NC 5 NO
D
Top 4-Wire Connector
10
Output Relays
RELAY
Output Relay LEDs
LED
NC 10 NO
LED
RELAY
