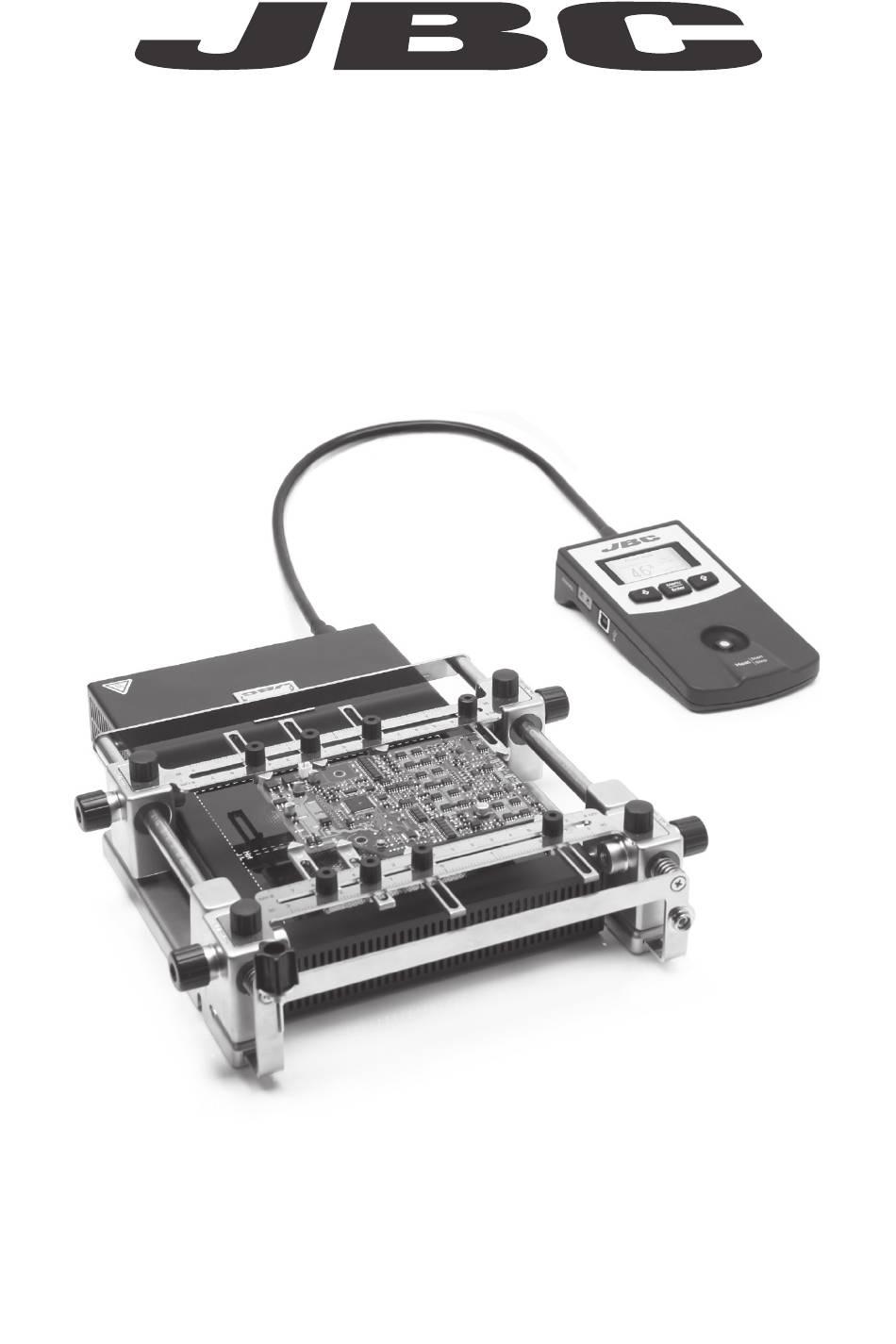

- Page 1 INSTRUCTION MANUAL IR Preheater Set Ref. PHS-KC...
-
Page 2: Packing List
Power Cord ..........1 unit Ref. PHS-SA Ref. 0009417 (100V/120V) 0009401 (230V) Kapton Tape ....1 unit Thermocouple ....1 unit Manual ......1 unit Ref. PH217 Ref. PH218 Ref. 0018633 w w w.jbctools.com INSTRUCTION MANUAL IR Preheater Set Ref. PHS-KC... - Page 3 w w w.jbctools.com Features Heater Unit Heating Areas Zone A Zone B Fixing brackets for PHS-SA Convection Preheater Support Power Power socket Pedal socket (optional) Ref. P-005 Console Control Unit Start / Stop USB-B connector to PC: Update software Thermocouple (Type K) Ref.
-
Page 4: Height Adjustment
PHS-SA Features Allen key Slot clamps Spring guide For fixing irregular shaped PCBs to the support. For fixing identical PCBs in the same Sliding guide position. Clamp knobs Height Adjustment It allows adjustment for 3 heights between the PCB and the Heating Area of the PHS-B Heater Unit. Low level 28mm For PCBs of 0.8 - 2.4mm thick... - Page 5 w w w.jbctools.com Changing PCBs of the same batch The support lets you place PCBs of the same batch so as to always heat the same area. Use the sliding guides to change the PCBs. Removing the PCB Placing another PCB After loosening the SP guide knobs, push the Push the PCB against the SP guide, position it PCB against the SP guide and lift out.
- Page 6 Positioning PHS on RWS The position of the PHS can be fixed on the RWS by means of positioning caps. Positioning Cap Fit the positioning cap into the positioning bolt. The four corner guides helps to the placement of the Unit. Positioning Bolt.
- Page 7 w w w.jbctools.com Notes...
-
Page 8: Operation
JBCset profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 9: Recommended Guidelines
w w w.jbctools.com Recommended Guidelines 1. Place the Thermocouple (TC) as near as possible to the component being worked on. Fix the TC with Kapton Tape Auxiliary Thermocouple (TC) 2. If there are any sensitive components, use the Auxiliary Thermocouple as protection. You can select the protection temperature in Station settings. -
Page 10: Display Control
Display Control... - Page 11 w w w.jbctools.com...
-
Page 12: Maintenance
Clean periodically - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 13 w w w.jbctools.com Safety It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause fire. - The mains cable must be plugged into approved bases.
-
Page 14: Exploded View
Exploded View... - Page 15 w w w.jbctools.com...
-
Page 16: Specifications
267 x 259 x 96 mm (10.5 x 10.2 x 3.8 in) Complies with CE standards. ESD protected housing. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
