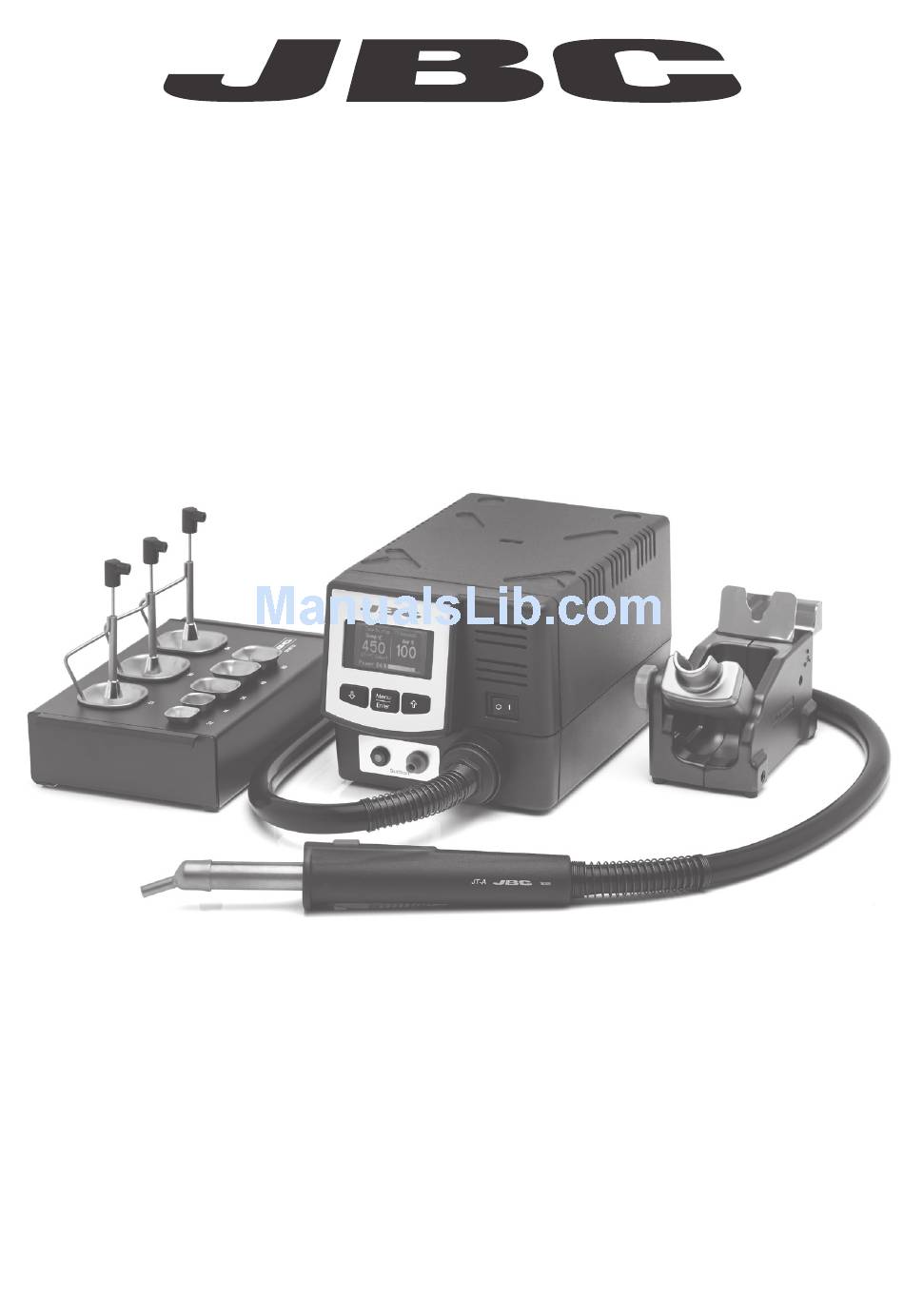

www.jbctools.com
www.jbctools.com

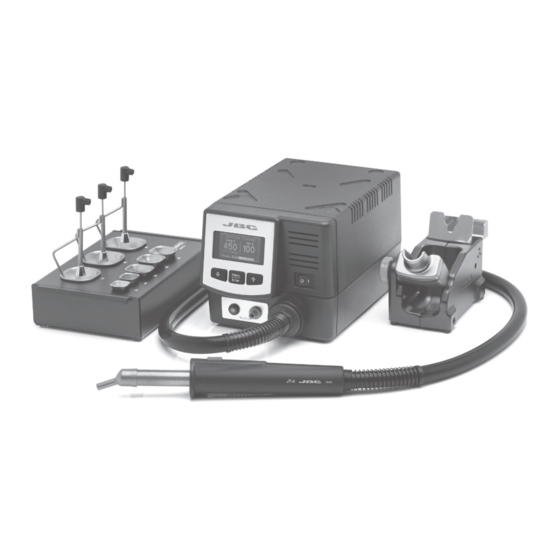

Hot Air Station
Ref. JT-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JTE-1B and is the answer not in the manual?

Questions and answers

Related Manuals for jbc JTE-1B

Summary of Contents for jbc JTE-1B

  • Page 1 www.jbctools.com www.jbctools.com Hot Air Station Ref. JT-B...

  • Page 2: Packing List

    Packing List Control Unit Stand Heater hose set Ref. JTE-1B Ref. JT-SB Ref. JT-T1A (100V - 120V) JTE-2B JT-T2A (230V) JTE-9B Extractor stand* Tripod* Nozzles Ref. 0008752 Ref. T2050 Ø 39mm Ref. JN2015 Ø 4mm T2250 Ø 85mm JN2012 Ø 6mm JN2020 Ø...
  • Page 3 Features Control Unit Ref. JTE-1B JTE-2B JTE-9B Main switch USB-B connector: Heater - Update station software inlet - Create graphs - Manage parameters via PC Activation of Vacuum inlet for tripods suction pump and extractors Suction Power...

  • Page 4: Adjustable Stand

    Adjustable Stand Adapted to JT-TA heating set. Used to remove the JT Nozzles Nozzles Straight Bent Flat Ref. Shape Size JN2020 Straight Ø 8mm JN8417 Straight Ø 10mm JN2015 Bent Ø 4mm JN2012 Bent Ø 6mm JN6633 Bent Ø 8mm JN7637 Flat 10 x 2mm...
  • Page 5 w w w.jbctools.com Protectors & Extractors To desolder small components you must use For bigger components use the extractors the protector + tripod (fig. 1 and 2). (fig. 3 and 4). Protectors Extractors * Ref. AxB (mm) * Ref. AxB (mm) * Ref.

  • Page 6: Process Control

    Process Control Manual Mode Time to stop 45 seconds º T e m p A i r % Current temperature 400 º C Select Selected temperature Power % Instant power supplied to heater Decrease & Increase & move up Access Menu move down (pess key 2 seconds)

  • Page 7: Menu Screen

    w w w.jbctools.com Menu Screen Original PIN: 0105 M a i n m e n u Reset settings Station Settings Profile Settings Counters Program version E x i t S e t t i n g s P r o f i l e S e t t i n g s 1 Temp unit Celsius Profiles...
  • Page 8 Process Control Edit Profile This option allows you to edit or create a profile. First , you must select the profile to edit and then modify the points that make up the profile. Each profile is composed of 9 points, each point is formed by three parameters: 1.

  • Page 9: Replacing The Heating Element

    w w w.jbctools.com Replacing the Heating Element Only perform this operation when element is cold and unit is disconnected from mains. 1. Untighten screw. 2. Pull element forward off handpiece. 3. Connect new heating element, ensuring its seated all the way in. 4.

  • Page 10: Maintenance

    Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 11 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.

  • Page 12: Technical Specifications

    - Complies with CE standards - ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.

This manual is also suitable for:

Jte-2bJte-9bJt-b
