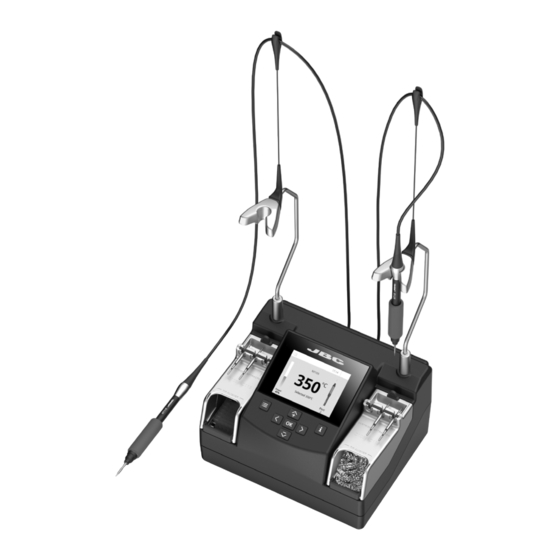

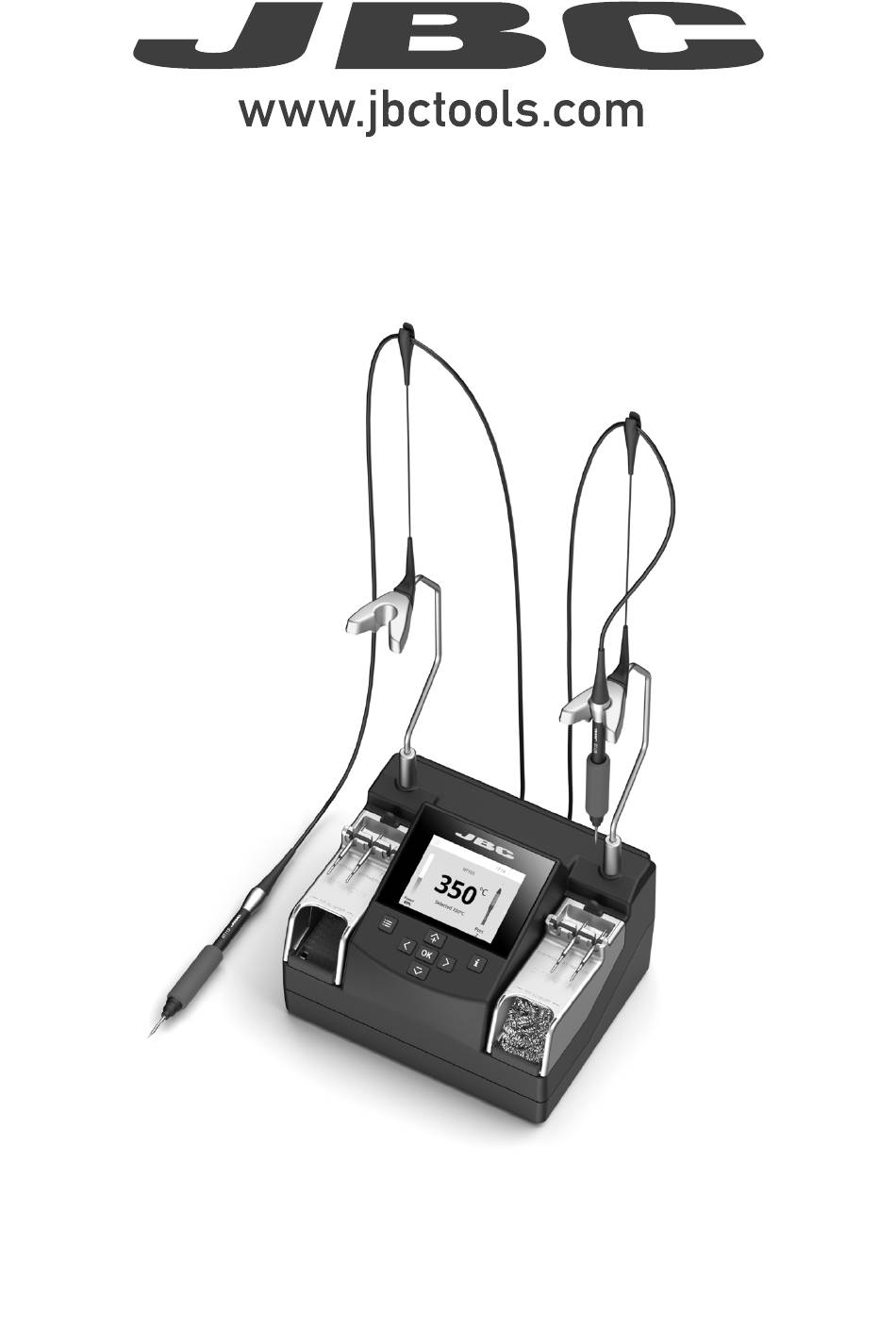

- Page 1 INSTRUCTION MANUAL NANE 2-Tool Nano Soldering Station...
-
Page 2: Table Of Contents
This manual corresponds to the following references: - NANE-9C (100V) - NANE-1C (120V) - NANE-2C (230V) Packing List The following items are included: Nano Control Unit ..1 unit Nano Handle ....2 units Cabel Collector Ref. NT115-A and Stand ....2 units Ref. -
Page 3: Nano Control Unit
para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Cable Collector 100 mm Accessory not included: Tool extension cord (1m) Ref. A1205 80 mm Stand: Intelligent Heat Management 60 mm NT115 Nano Handle 50 mm Display 40 mm Cartridge Extractor... - Page 4 Tool Holder Assembly Tool Holder Replacement Loosen the screw (1) and withdraw the tool Insert the new tool holder (3) and tighten the holder (2). screw (4). 4 4 4...
- Page 5 para manuales - color gris 200 mm DDE Work Screen Work Screen 130 mm 130 mm The DDE offers an intuitive user interface which provides quick access to station parameters. The work screen offers an intuitive user interface which provides quick access to station Default PIN: 0105 parameters.
- Page 6 Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update...
- Page 7 200 mm Operation 130 mm 130 mm JBC’s Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. 100 mm As a result, tip life increases by 5.
-
Page 8: Pedal
The Pedal is frequently used to rework components with tweezers. AN115, JBCs Adjustable Nano Tweezers, is the most effective tool for desoldering chip components but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS station. -
Page 9: Manual
For this operation JBC´s desoldering station DSS is needed. Manual Solder Paste Dispensing Solder Paste Dispenser Apply the solder paste amount needed to solder the new chip component. The use of JBC´s DPM solder paste dispenser is recommended. NT105 Selected 350ºC Power... - Page 10 Placing Do not press the pedal. Use the tweezers to position the component on the previously tinned pad. Note: The inactive tweezers prevents the component from heating up prematurely. Soldering Once in position press and hold the pedal to activate the tweezers and perform the soldering.
- Page 11 para manuales - color gris 200 mm Changing Cartridges 130 mm 130 mm Save time and change cartridges safely without having to switch the station off. Removing Inserting Aligning 100 mm 80 mm 60 mm Place the cartridge into the Push the new cartridge into Use the holes to rotate the extractor slot (1) and pull...
- Page 12 Changing Grips 1. Inserting 2. Removing Tab First, put the slide-on Hold the grip and pull tabs into the new grip, the tab. Use pliers if then push the grip necessary. with the tabs onto the handle. Tabs Grip for NT115 Ref.
- Page 13 para manuales - color gris 200 mm Working hrs Sleep hrs Hiber hrs 5257 5257 No tools hrs Sleep cyc 2577 2577 Menu Options Partial reset 130 mm 130 mm Back Main Menu Station (Original PIN: 0105) 19:29 19:29 19:29 100 mm Station Graphics...
- Page 14 Tools View Scale Manual Peripher. Do y Maximum temp 400ºC Pro les Minimum temp 0ºC Graphics Max Power 100% Files Min Power Menu Options Counters Grid Power 19:29 Language Back Main Menu Station Reset Files (Original PIN: 0105) Tools Exit 19:29 19:29 19:29...
- Page 15 Sound Disable or enable the key sound. 60 mm Enable or disable communication via USB connector for QST (Quality Soldering Traceability) libraries, available on JBC’s website. Robot Disable or enable remote control with robot. 50 mm Allows to lock the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters.
- Page 16 Peripherals Setting Description Pedal Configure the settings of connected pedals (for each port). Module Unused feature. Fume Extractor Disable or enable a fume extrator for each port. Profiles Setting Description Max. Rate Select the max./min. rate (per second) that can be set in profiles mode. Edit Edit an already existing profile.
- Page 17 para manuales - color gris 200 mm Files 130 mm 130 mm Setting Description Graphics Export or delete temperature graphics. 100 mm Profiles Export/Import or delete soldering profiles. 80 mm Counters Setting Description 60 mm Plug Hrs. Check how many hours the station has been on. Working Hrs.
- Page 18 2. Press the new fuse into the fuse holder fuse. If necessary use a tool to lever it off. and replace it in the station. Fuse holder Fuse holder Fuse - Repairs should only be performed by a JBC authorized technical service.
- Page 19 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
- Page 20 Notes...
- Page 21 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 22 Notes...
- Page 23 130 mm 130 mm NANE 2-Tool Nano Soldering Station Ref.: NANE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V Ref.: NANE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V 100 mm Ref.: NANE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V - Output Peak Power:...
- Page 24 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
