Summary of Contents for jbc HA245

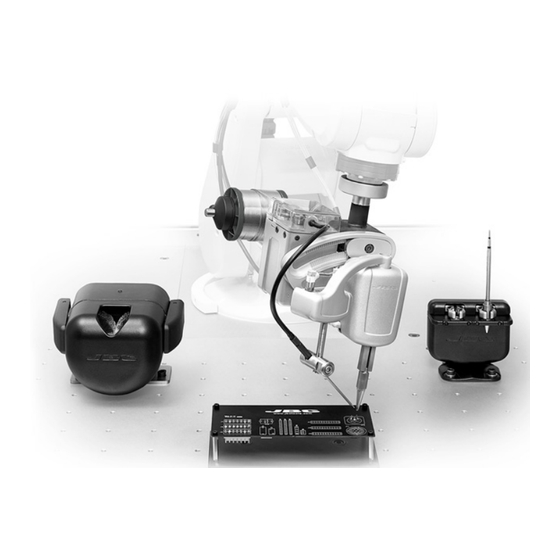

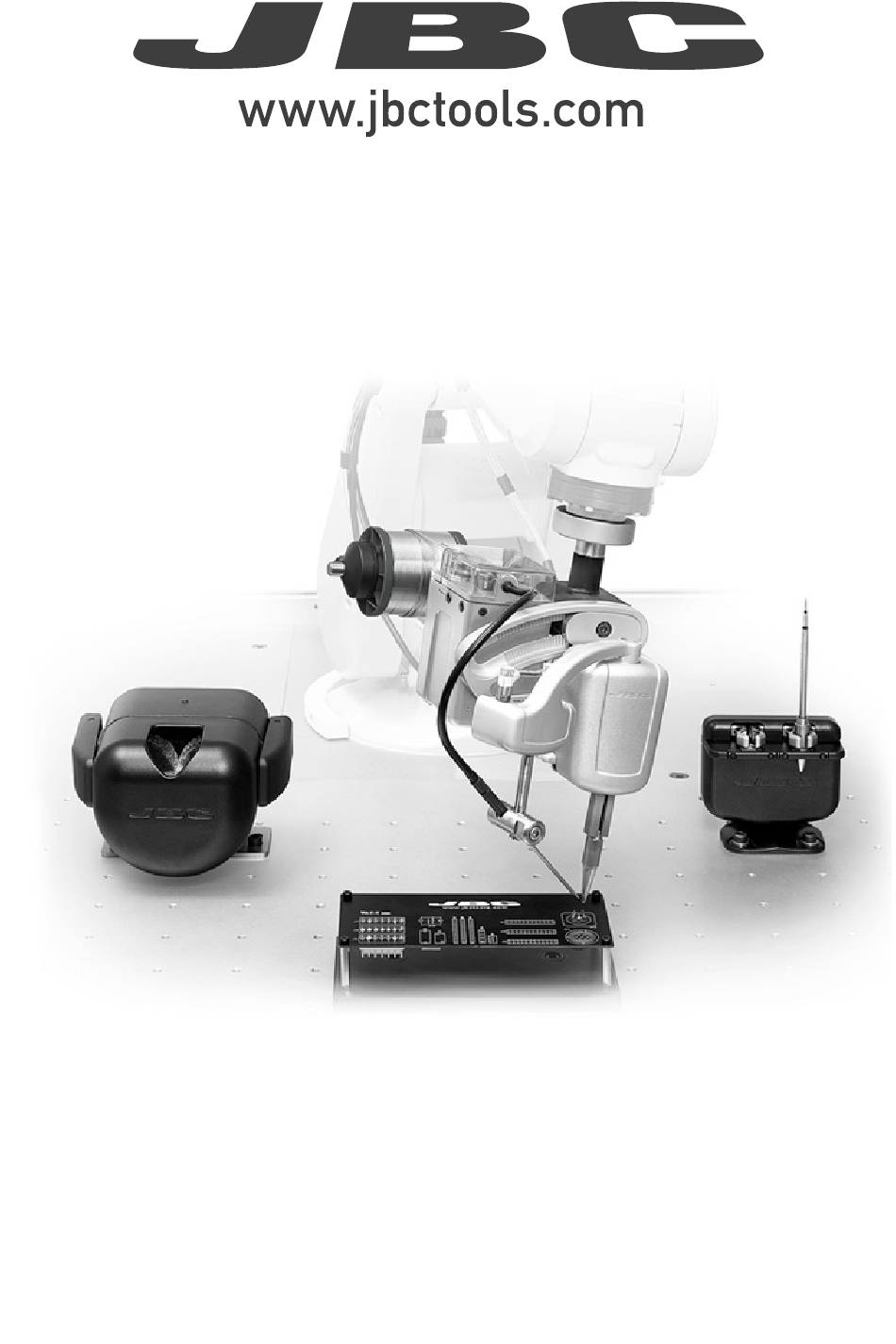

- Page 1 INSTRUCTION MANUAL HA245/HA470 Automatic General/Heavy Duty Soldering Set for Robot...
- Page 2 This manual corresponds to the following references: - HA245A-5B works with R245 cartridges - HA470A-5B works with R470 cartridges Packing List Work Place Examples HA Automatic Soldering Set for Robot Manual ......1 unit Ref. 0027871 HM Soldering Set for Robot TRA includes: Manual ............
- Page 3 w w w.jbctools.com SFR includes: Solder Feeder for Reel Support ....1 unit Communications Robot ......1 unit Cable 3 m......1 unit Ref. 0024561 Ref. SFR-B Ref. 0024563 Allen Key 1,5 mm ..1 unit Allen Key 2,5 mm ..1 unit Allen Key 3 mm ..
- Page 4 UCR includes: Control Unit for Robot ........................... 1 unit According purchased reference included either Ref. UCR245-5A Ref. UCR470-5A Power Cord 1.5m ..1 unit Tool Cable 3m ....1 unit Communications Ref. 0023714 (230 V) Ref. 0027924 Cable 3m ......1 unit Ref.
- Page 5 w w w.jbctools.com CSR includes: Screw ............2 unit DIN 912 M6x20 Ref. 0842925 Cartridge Exchanger for Robot .... 1 unit Washer ............2 unit DIN 125 Ø6.4 mm INOX According purchased reference included either Ref. CS2R245-B Ref. 0919480 Ref. CS2R470-B Upper Center Jig ........
- Page 6 CLMRP includes: Tip Cleaner for Robot with Fiber Brushes ..................1 unit Ref. CLMR-PA Fiber Brushes ..........1 pair Connector Cable (3m) ......1 unit Ref. CL2008 Ref. 0024563 (2 brushes - already assembled) Manual .................................. 1 unit Ref. 0029764...
- Page 7 w w w.jbctools.com Features and Connections PLC / Robot CLMRP Connections: Compressed Air RS 232 Comunication Air Tube 100-240 V AC Further information can be found in the instruction manuals for the individual products, which are contained in the respective product box. For SFR download the Robot Communication Protocol at www.jbctools.com/jbcsoftware.html Maintenance and Safety Follow the instructions in the individual instruction manuals, included in each product box.
- Page 8 19.29 x 19.09 x 10.94 in / 23.18 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
