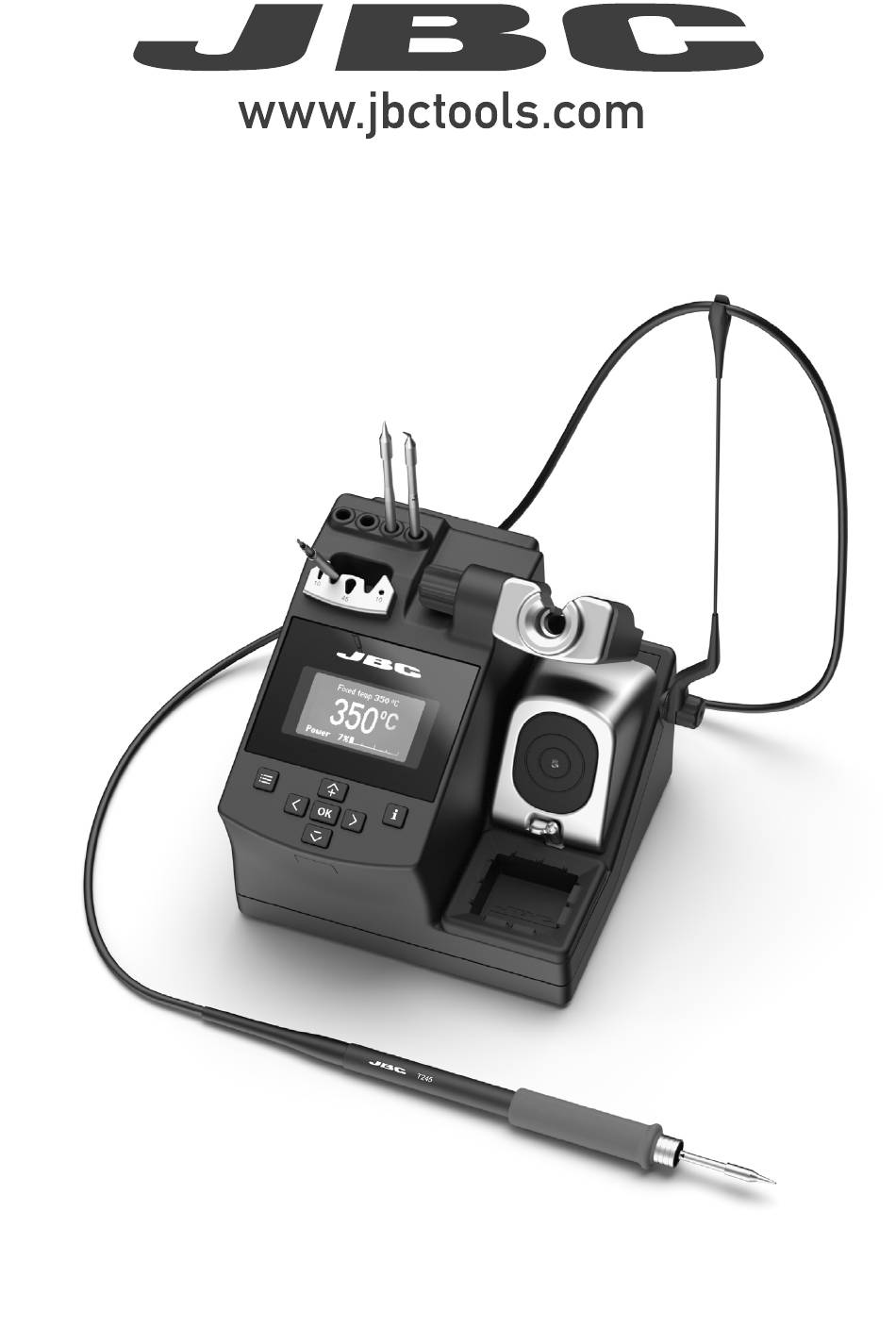

INSTRUCTION MANUAL
CDB
Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-2BHQF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc CD-2BHQF

Summary of Contents for jbc CD-2BHQF

  • Page 1 INSTRUCTION MANUAL Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: - CD-9BQF (100V) - CD-1BQF (120V) - CD-2BQF (230V) Packing List The following items are included: Control Unit ........... 1 unit General Purpose Handle ...... 1 unit Ref. T245-A Power Cord ............ 1 unit Brass Wool ............

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Adjustable Cable Collector Adjustable Tool Holder 100 mm Cartridge Holder Cartridge Exchanger 80 mm Display Tip Cleaner with Antisplash 60 mm Membrane (Brass Wool inside) Wiper 50 mm T245 40 mm...

  • Page 4: Tip Cleaner

    Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first cleaning it with the wiper to remove excess solder. Wiper Ref. CL7984 A temperature-resistant receptacle for removing...
  • Page 5 para manuales - color gris 200 mm 130 mm 130 mm Wool/Brush Replacement 1. Unlock the splashguard. 2. Lift off the splashguard and change the worn brasswool/brush for a new one. 100 mm Wool Lock 80 mm 60 mm More cleaning options: 50 mm Inox Wool* Metal Brush*...

  • Page 6: Changing Grips

    Changing Grips* Replace the soft foam grips easily using slip-on tabs. Note: Choose the correct grip depending on your handle model. D-Q: D-Q: Handles Green grips Blue grips Black grips T210, T210P, T210N T8658 T3310 T3311 T245, T245G, T245P T6057 T1528 T1530 1.

  • Page 7: Compatible Cartridges

    para manuales - color gris 200 mm Cartridge Exchanger 130 mm 130 mm Save time and change cartridges safely without switching the station off. 1. Removing 2. Inserting 3. Fixing 100 mm 80 mm Holes Place the handle in the ex- Place the handle on top of Depending on the shape of 60 mm...

  • Page 8: Operation

    Operation JBC’s Most Efficient Soldering System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life is five times longer than with other brands.

  • Page 9: Control Process

    para manuales - color gris 200 mm Control Process 130 mm 130 mm Work Display 100 mm Fixed temp. 3 5 0 3 5 0 Displays a specific fixed temp. 80 mm Shown when you have selected Levels ºC 2 7 0 2 7 0 3 5 0 3 5 0 4 0 0 4 0 0...

  • Page 10: Menu Display

    Menu Display Default PIN: 0105 S t a t i o n s e t t i n g s S t a t i o n s e t t i n g s M a i n m e n u M a i n m e n u Temp unit Celsius...

  • Page 11: Station Settings

    (e. g. riveting). (e.g. multilayered or high Defaut min. temp. is 200 ºC dissipation boards), JBC (392 ºF). This is considered to strongly recommends using be a proper starting point for other aids like preheaters.

  • Page 12: Tool Settings

    Tool Settings Parameter Description Recommendations Warnings Fix One Temperature Ideal for soldering more than Fix a value within the one component at a specific temperature range of the temperature. The station will station (90-450 ºC/190- reject any attempt to change 840 ºF). the temperature.

  • Page 13: Usb Connector

    It provides a more precise / ± 90 °F to achieve zero error. When the user changes 50 mm adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.

  • Page 14: Maintenance

    - Periodically check all cables. - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. EARTH When this warning appears on the main FUSE display, earthing fuse must be replaced.
  • Page 15 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
  • Page 16 Notes...
  • Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 18 Notes...

  • Page 19: Specifications

    para manuales - color gris 200 mm Specifications 130 mm 130 mm Soldering Station Ref.: CD-9BQF 100V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CD-1BQF 120V 50/60Hz. Input fuse: T2A. Output: 23.5V. Ref.: CD-2BQF 230V 50/60Hz. Input fuse: T1A. Output: 23.5V. 100 mm - Nominal Power 175W...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
