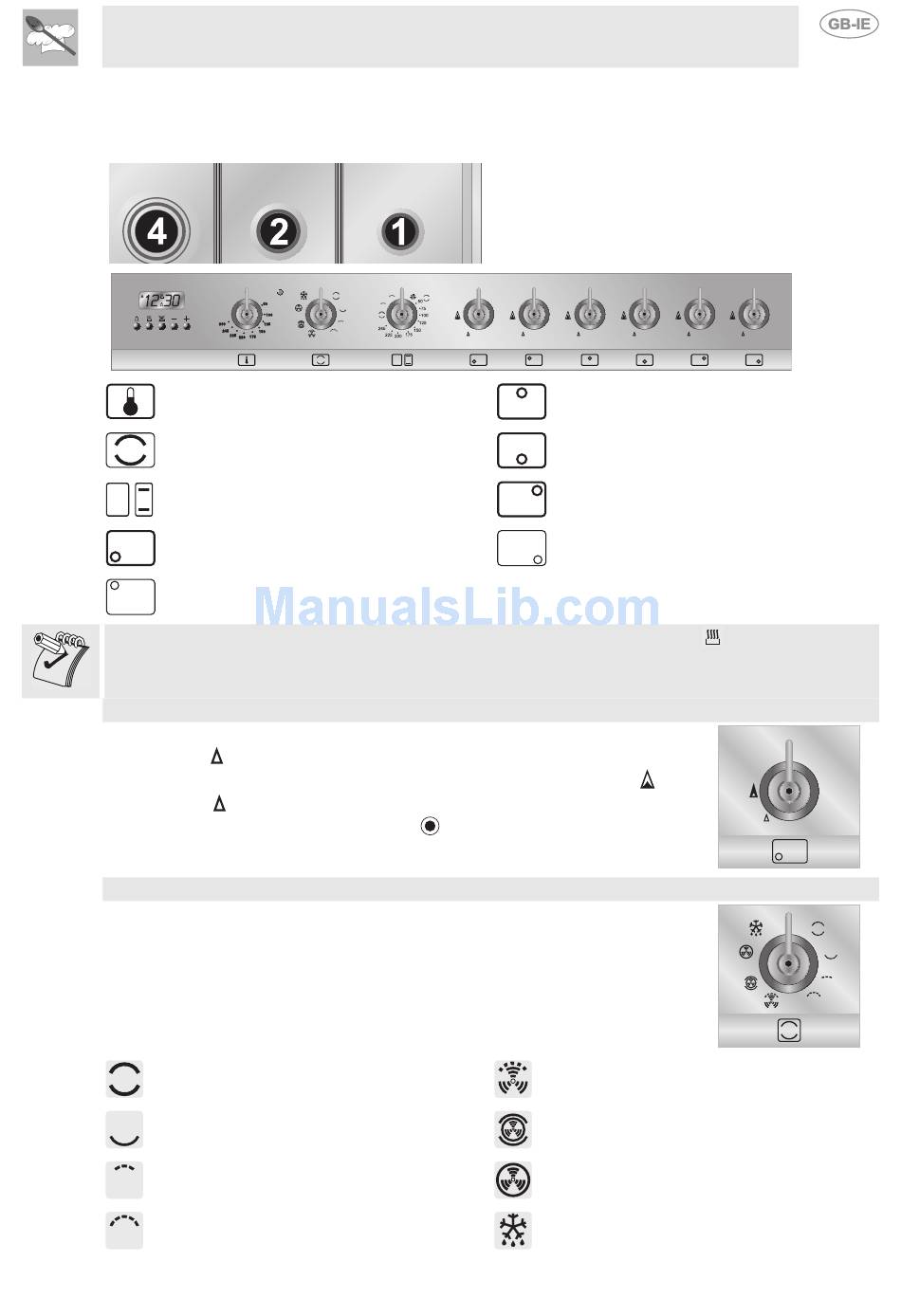

7. DESCRIPTION OF FRONT PANEL CONTROLS

All the control and monitoring devices are clearly in view on the front panel. The symbols used are
described in the table below.
OVEN THERMOSTAT
FUNCTION SELECTOR KNOB
FRONT LEFT-HAND BURNER
FRONT LEFT-HAND BURNER
REAR LEFT-HAND BURNER
Before using the oven/main oven, check that the display is showing the symbol
ELECTRONIC PROGRAMMER".
To light the flame, press the knob and turn it anti-clockwise to the minimum
flame symbol .
To adjust the flame, turn the knob to the zone between the maximum ( ) and
the minimum ( ) settings.
To turn off the burner, turn the knob to the
The electric oven's various functions are suitable for different cooking modes.
After selecting the function required, set the cooking temperature using the
thermostat knob.
TOP AND BOTTOM HEATING ELEMENTS
BOTTOM HEATING ELEMENTS
WIDE GRILL ELEMENT
GRILL ELEMENT
Instructions for the user
HOB BURNER CONTROL KNOB
position.
FUNCTION SELECTOR KNOB
CENTRAL RIGHT-HAND BURNER
FRONT CENTRAL BURNER
REAR RIGHT-HAND BURNER
FRONT RIGHT-HAND BURNER
GRILL ELEMENT + VENTILATION
TOP + BOTTOM HEATING ELEMENTS +
VENTILATED HEATING ELEMENT
VENTILATED HEATING ELEMENT
DEFROSTING
(see paragraph "11.
