Termination Details

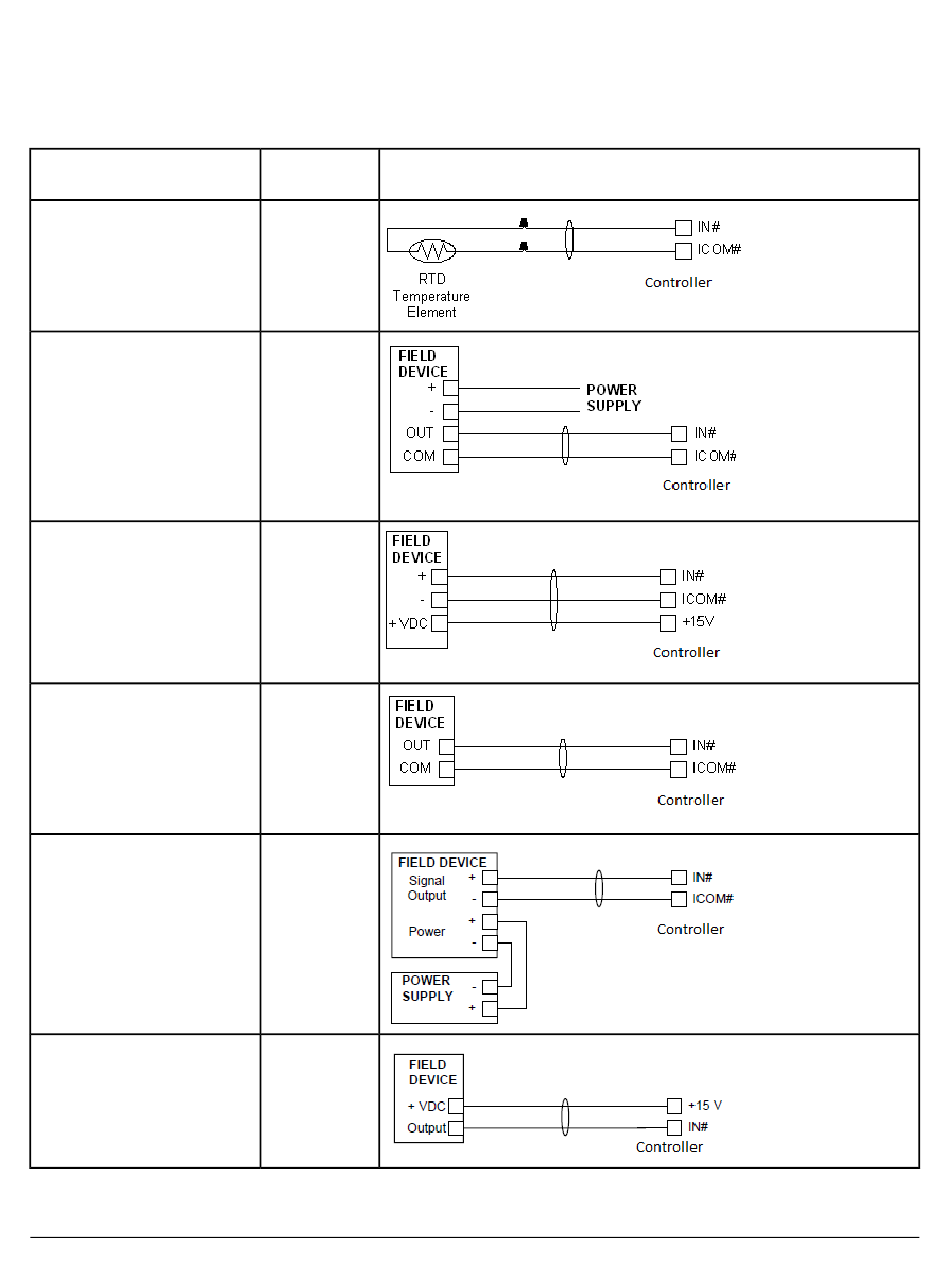

A set of Johnson Controls® termination diagrams provides details for wiring inputs and outputs to the controllers.
See the figures in this section for the applicable termination diagrams.
Table 2: Termination Details
Type of Field Device
Temperature Sensor
Voltage Input - External
Source
Voltage Input - Internal Source
Voltage Input (Self-Powered)
Current Input - External
Source (Isolated)
Current Input - Internal Source
(2-wire)
IOM47 Input/Output Module Installation Instructions
Type of Termination Diagrams
Input/Output
UI
UI
UI
UI
UI
UI
7
