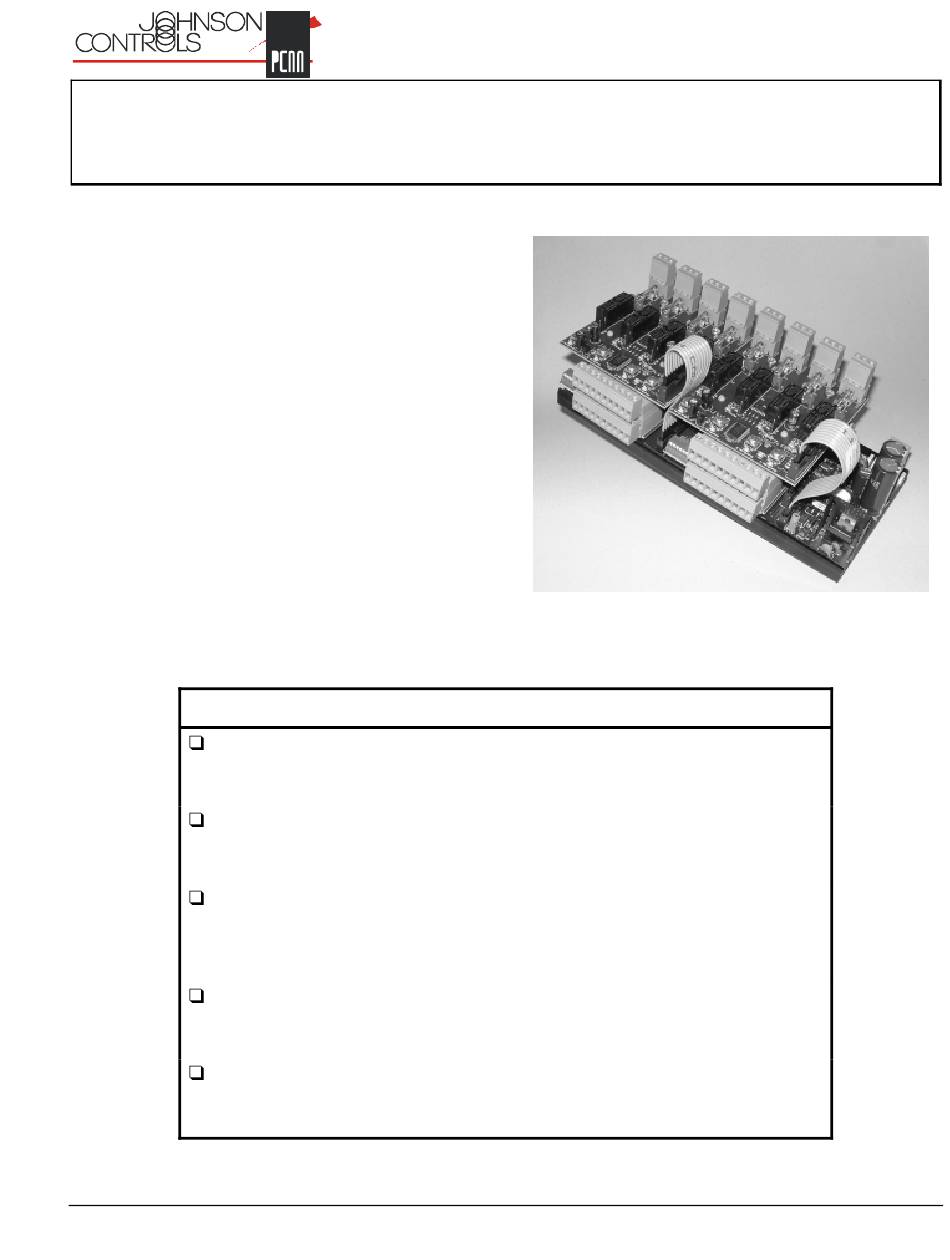

Johnson Controls MIOA Series Manual

MIOA Series Modular Input/Output Assemblies
for Refrigeration, HVAC, and Building System Controllers
Modular Input/Output Assemblies (I/O Assemblies) are
built-up, configurable, circuit board assemblies that
provide analog or binary input points, output relays,
analog outputs, or a combination of inputs and
outputs.
I/O Assemblies provide network interface between the
controller and a variety of low voltage input sensor
devices and binary (On/Off) switches. The I/O
Assemblies also provide interface for On/Off circuit
control, analog device control, and electric
consumption metering.
I/O Assemblies consist of a Modular Input/Output Base
(I/O Base) with up to two Input Boards and two Output
Boards stacked on top of the I/O Base. See Table 3 for
the standard I/O Assemblies and component boards
that are available.
I/O Assemblies are designed for new installations, and
to replace existing Input/Output boards (I/O boards)
currently used with Johnson Controls/PENN®
Refrigeration System Controllers.
Matches the Footprint of
Existing Johnson
Controls/PENN I/O Boards
Optional Manual Override
Capacity of Output Relays
Auto-Selects Either a
0-10 VDC or 4-20 mA
Analog Output Signal
Pulse-Inputs for Recording
Electric Consumption
High Density of Inputs and
Outputs per I/O Assembly
© 2003 Johnson Controls, Inc.
Code No. LIT-1201164
®
Features and Benefits
Allows for quick and easy changeout or
modification of existing I/O boards
Facilitates troubleshooting the system
equipment controlled by the I/O Assembly
Provides motor-speed control for a variety of
variable speed applications in Refrigeration,
Heating, Ventilating, and Air Conditioning
(HVAC), and Building Control Systems
Allows for pulse-metering electric use or other
control system pulse-metering applications
Provides more input sensor points, and output
relay and analog control-points in less space
Product Bulletin
Issue Date

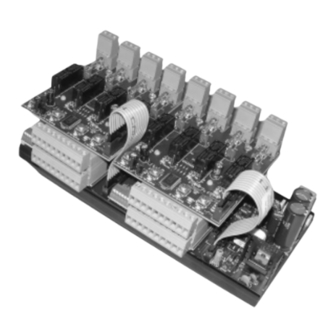

Figure 1: An MIOA Series Modular Input/Output
Assembly
November 26, 2003
