Termination details

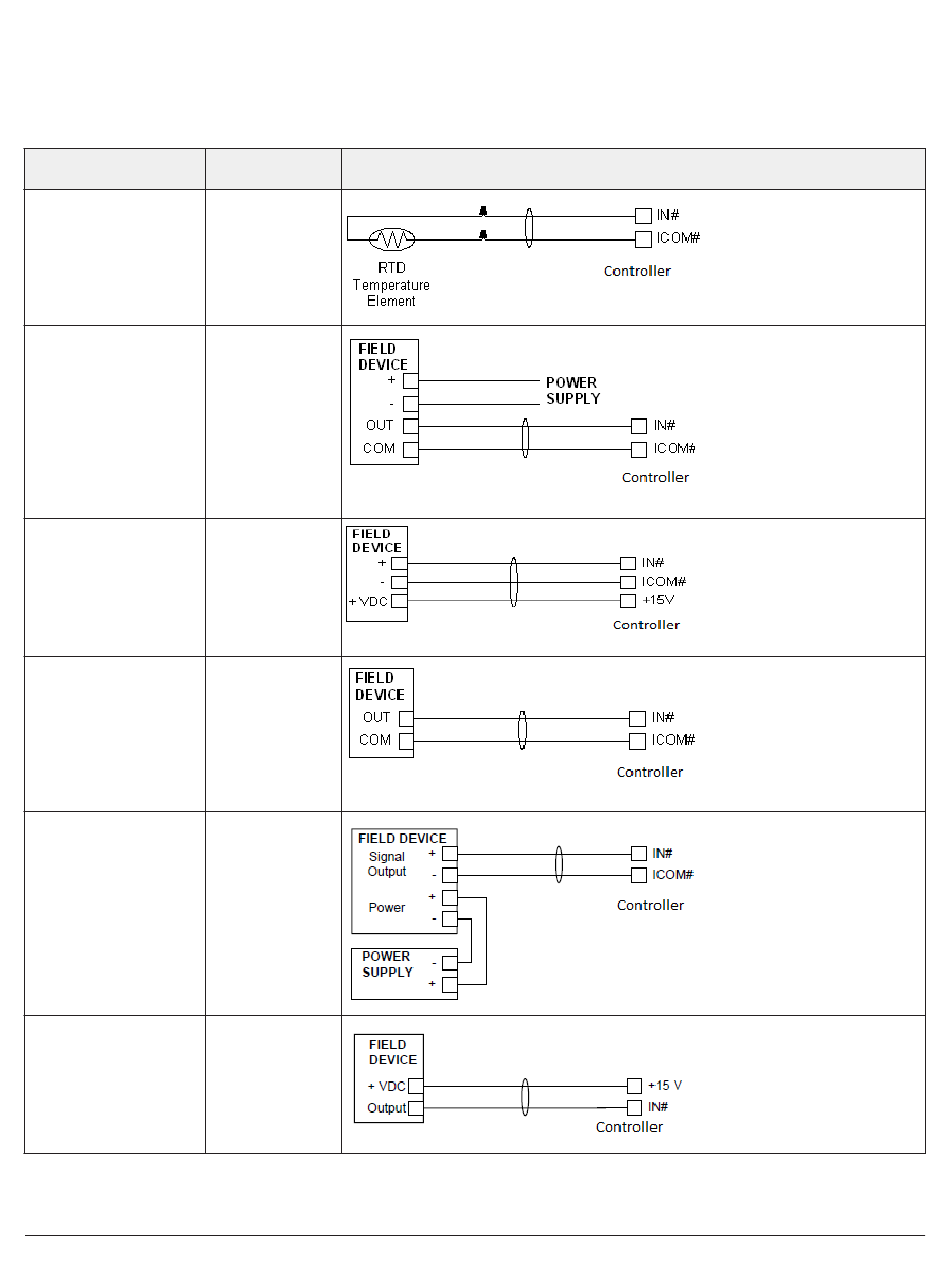

A set of Johnson Controls termination diagrams
provides details for wiring inputs and outputs to the
Table 5: Termination details
Type of field device
Temperature Sensor
Voltage Input - External
Source
Voltage Input - Internal
Source
Voltage Input (Self-
Powered)
Current Input - External
Source (Isolated)
Current Input -Internal
Source (2-wire)
Type of Input/
Termination diagrams
Output
UI
UI
UI
UI
UI
UI
controllers. See the figures in this section for the
applicable termination diagrams.
IOM1711 and IOM2711 Input/Output Module Installation Guide 13
