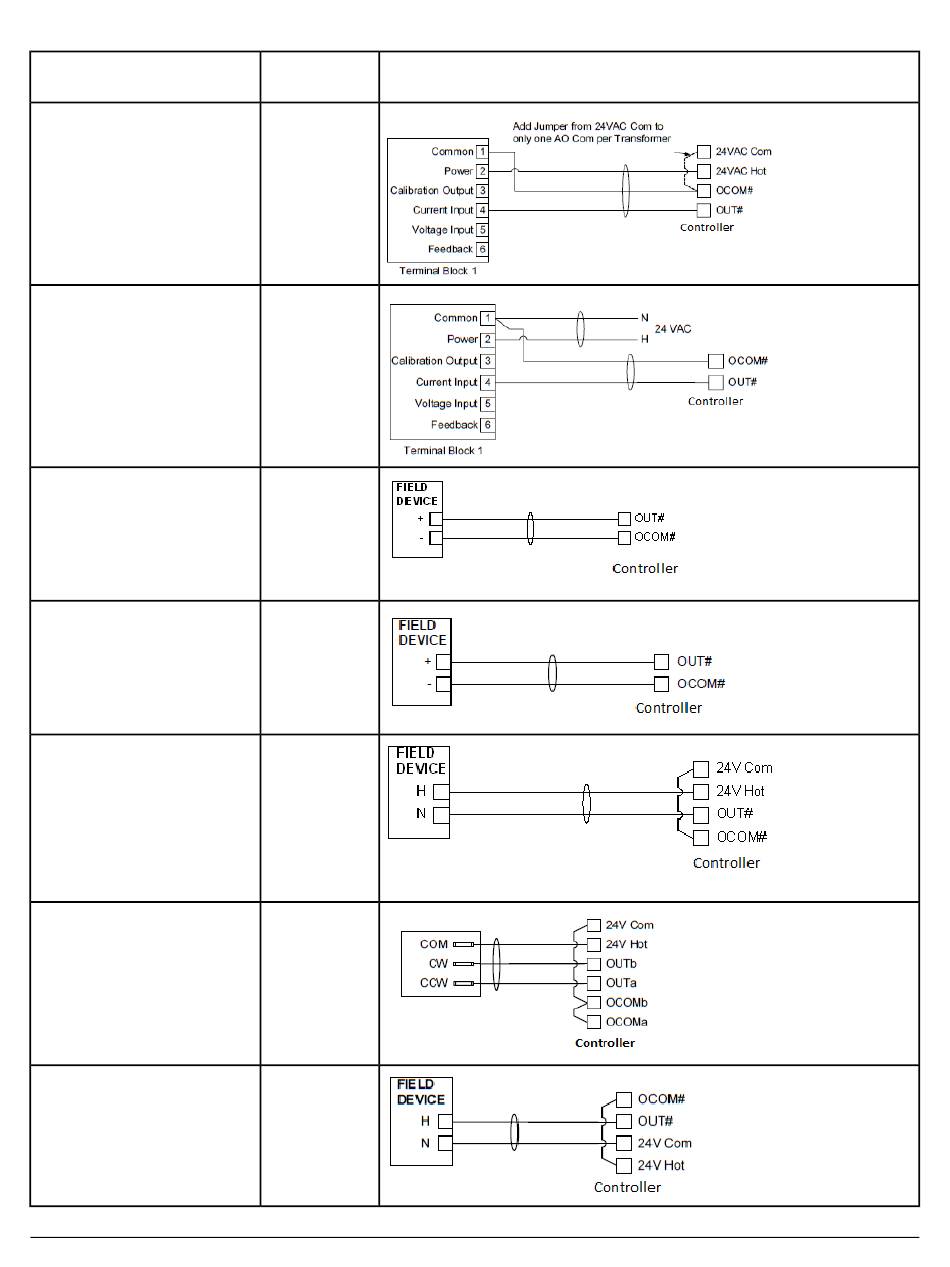

Table 2: Termination Details
Type of Field Device
4–20 mA Output to Actuator
4–20 mA Output to Actuator
Voltage (Analog Output)
Analog Output (Current)
24 VAC Triac Output (Switch
Low, External Source)
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
24 VAC Triac Output (Switch
High, Externally Sourced)
IOM47 Input/Output Module Installation Instructions
Type of Termination Diagrams
Input/Output
CO or AO
CO or AO
AO
AO
CO or AO
CO or AO
CO or AO
