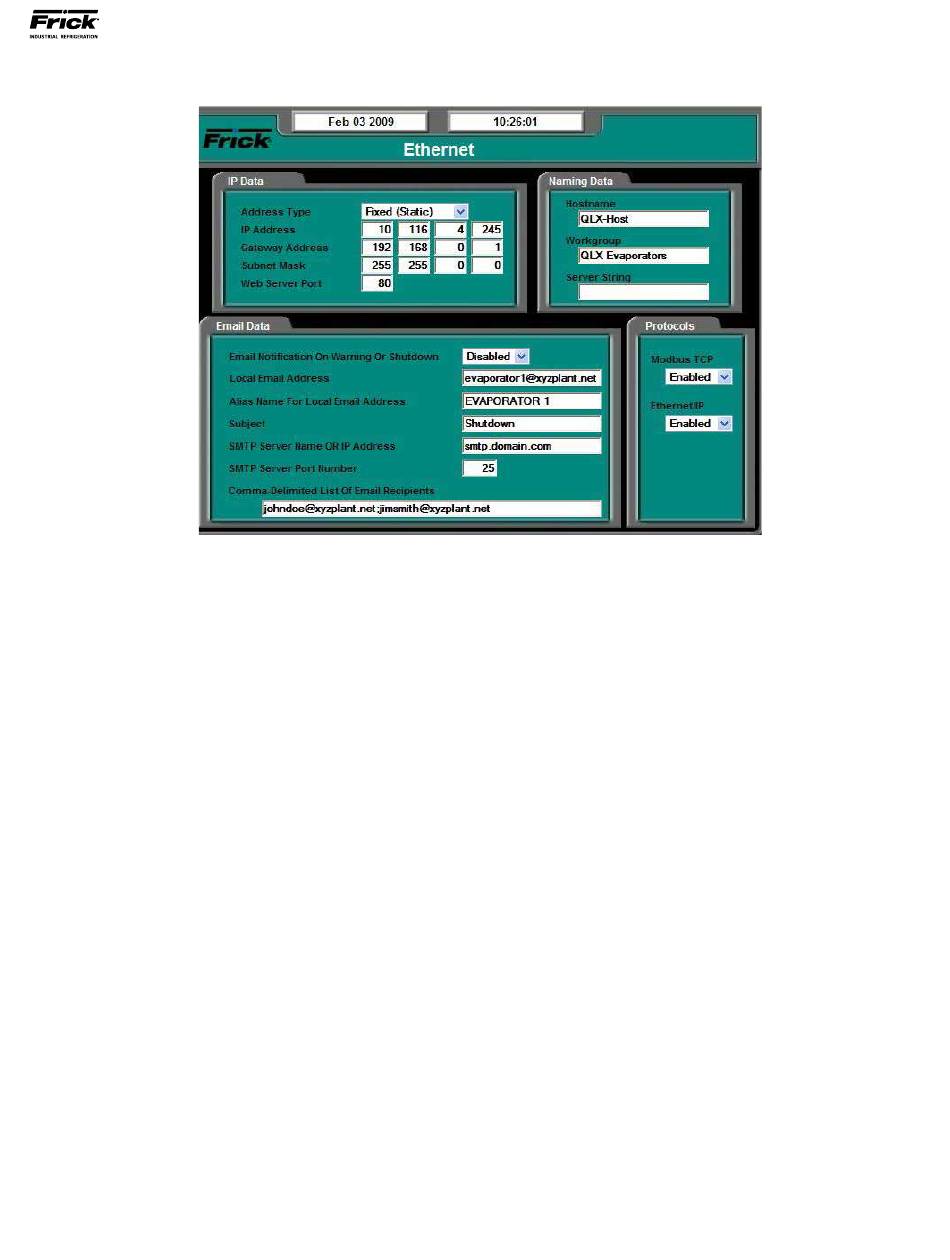

DESCRIPTION: This screen is used to view and set basic Eth-
ernet operational values. It is from this screen that all internet
and e-mail based operating characteristics are set. NOTE: In
order to connect to the Internet, a valid Internet account and
connection must be used.
NOTE: User Level 1 or above must be set to access this
screen.
The following fields are provided:
IP Data:
[Address Type] - The following drop down menu is
provided:
• Fixed (Static)
• DHCP (Dynamic)
This should be set by the network or LAN administra-
tor.
[IP Address] - Four setpoint boxes are provided here.
The network or LAN administrator will enter the nu-
merical IP address for this specific Quantum™ LX
panel.
[Gateway Address] - Four setpoint boxes are pro-
vided here. The network or LAN administrator will
enter the numerical Gateway address.
[Subnet Mask] – Like IP addresses, a subnet mask
contains four bytes (32 bits) and is often written us-
ing the same "dotted-decimal" notation. A subnet
mask neither works like an IP address, nor does it ex-
ist independently from them. Instead, subnet masks
accompany an IP address and the two values work
together.
QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
CONFIGURATION – Ethernet
Applying the subnet mask to an IP address splits the
address into two parts, an "extended network ad-
dress" and a host address.
For a subnet mask to be valid, its leftmost bits must
be set to '1'. Conversely, the rightmost bits in a valid
subnet mask must be set to '0', not '1'.
All valid subnet masks contain two parts: the left side
with all mask bits set to '1' (the extended network
portion) and the right side with all bits set to '0' (the
host portion).
[Web Server Port] - One setpoint box is provided
here. The network or LAN administrator will enter the
numerical address for this Web port (80 is typically
used).
Email Data
[Email Notification On Alarm or Shutdown] - For
the E-mail notification feature to work, it must be en-
abled (it is disabled as a default). The following drop
down menu is provided:
• Disabled
• Enabled
[Local Email Address] - Use this setpoint box to
enter a valid E-mail address that messages are sent
from.
[Alias Name For Local Email Address] - Enter here a
custom name to identify more clearly the local Email
address. When a message is sent to all recipients,
this is the name that will appear in the Email FROM
column.
